Specifications:

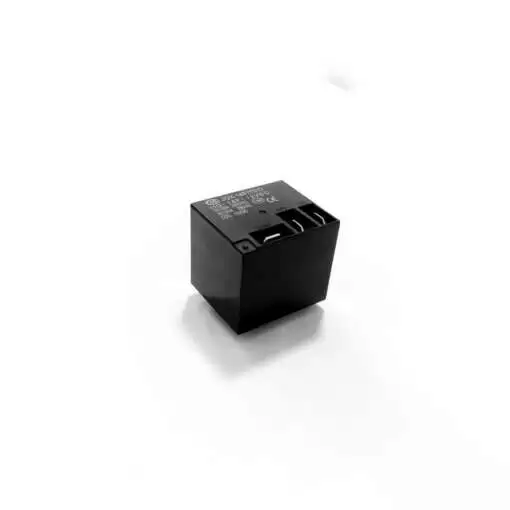

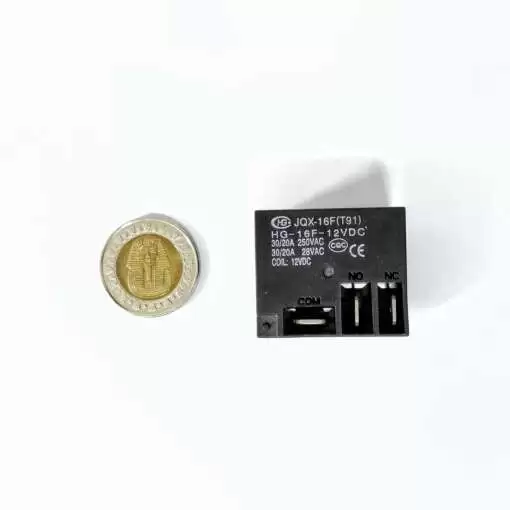

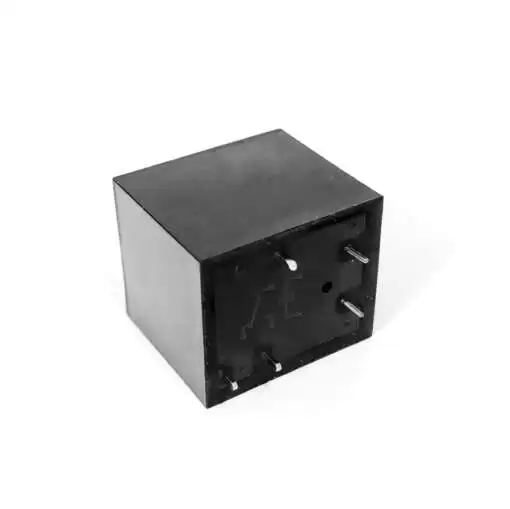

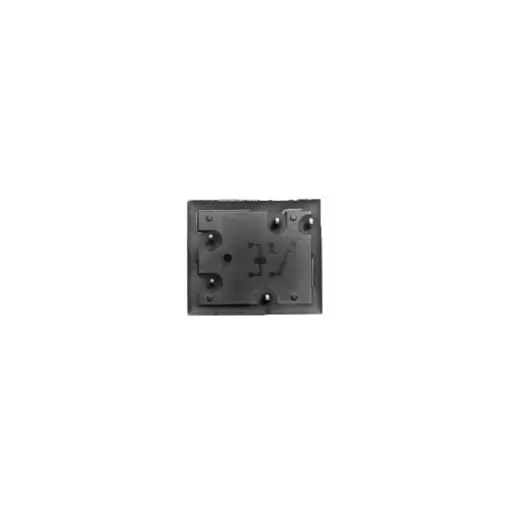

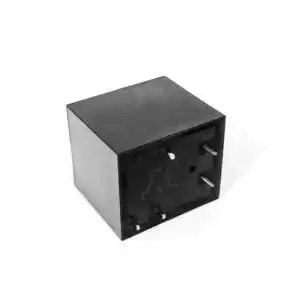

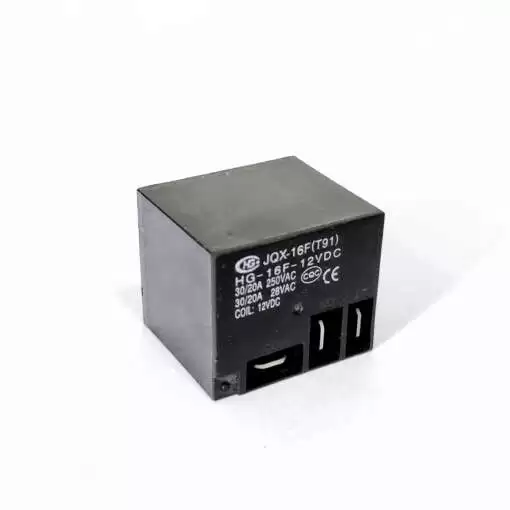

- Model: JQX-16F DC12V T91
- Contact Form: One open and one closed
- Theory: Electromagnetic Relay
- Contact form: 1Z
- Contact load: 20A/30A || 250VAC/28VDC
- Coil power: DC:0.93W, AC1.5VA
- AV:6V 220V
Specifications:
| Contact Ratings | 1H | 1D | 1Z | ||
| Contact Resistance | 50mΩ (1A 24VDC) | ||||
| Contact capacity | 7200VA/560W | 3600VA/280W | 4800VA/560W | 2400VA/280W | |
| Insulation Resistance | 1000MΩ | |
| Dielectric Strength | BCC 2500VAC 1minute | |
| 15ms / 10ms | ||
| Operate Time | 15ms / 10ms | |
| Mount | PCB | |
Coil Power
| Nominal Coil Power | DC:0.9W |
Coil Data
| Nominal Voltage VDC | Pull-in Voltage VDC | Release Voltage VDC | Coil ResistanceΩ:±10% | |
| 12 | 9.00 | 1.2 | 160 | |
