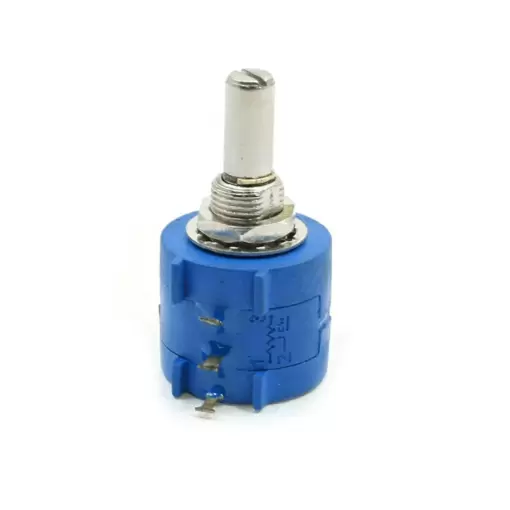

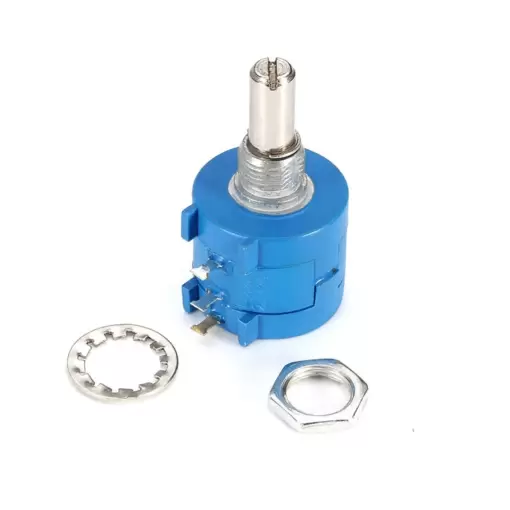

Precision Potentiometer 5K Ohm 10 Turn 3590S-2-502L

Bourns 3590S-2-502L Precision 5KΩ 10-Turn Potentiometer

Features:

• Durable Construction: Wire wound resistive element for longevity.
• Smooth Operation: 10-turn design for fine control.
• Flexible Mounting: Panel mount with solder lug terminals.
• RoHS Compliant: Meets environmental standards.

Specifications:

• Model:3590S-2-502L
• Resistance: 5K Ω
• Turns:10turns
• Resistance Tolerance:±5 %
• Independent linearity accuracy:±0.25% ;
• Power: 2W
• Total Rotational Angle :3600±5°
• Operating Temperature Range : +1° – +125
• Storage temperature : -55° – +125°
• Rotational Life:1,000,000 RMP
• Shaft diameter : 6.3mm
• Mounting Hole:10mm

Applications:

• Audio Equipment: Volume and tone controls.
• Test Equipment: Calibration adjustments.
• Industrial Controls: Precision tuning in machinery.
• Medical Devices: Accurate setting of device parameters.
• Laboratory Instruments: Fine adjustments in experiments.

3590S-2-502L Datasheet
