A relay is an electrically operated switch. It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals. The switch may have any number of contacts in multiple contact forms, such as make contacts, break contacts, or combinations thereof.
Relay Pin Configuration
| Pin Number | Pin Name | Description |
| 1 | Coil End 1 | Used to trigger(On/Off) the Relay, Normally one end is connected to 24V and the other end to ground |
| 2 | Coil End 2 | Used to trigger(On/Off) the Relay, Normally one end is connected to 24V and the other end to ground |
| 3 | Common (COM) | Common is connected to one End of the Load that is to be controlled |
| 4 | Normally Close (NC) | The other end of the load is either connected to NO or NC. If connected to NC the load remains connected before trigger |
| 5 | Normally Open (NO) | The other end of the load is either connected to NO or NC. If connected to NO the load remains disconnected before trigger |

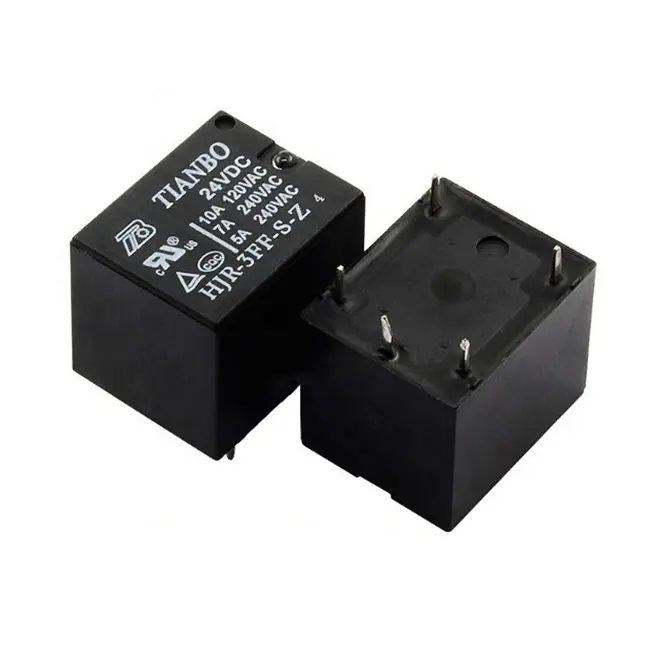

Specifications of 5-Pin 24V Relay
- Mounting Type: THT
- Contact Form: SPDT (1 Form C)
- Coil Type :: Non Latching
- Contact Current: 7A
- Coil Voltage: 24VDC
- Coil Current: 15mA
- Contact Voltage: 240VAC
- Coil Resistance: 1.6 kOhms
- Working Temperature: -40 ° C ~ + 85 ° C
- Number of Pin: 5PIN
Applications of Relay
- Commonly used in switching circuits.
- For Home Automation projects to switch AC loads
- To Control (On/Off) Heavy loads at a pre-determined time/condition
- Used in safety circuits to disconnect the load from supply in event of failure
- Used in Automobiles electronics for controlling indicators glass motors etc.
