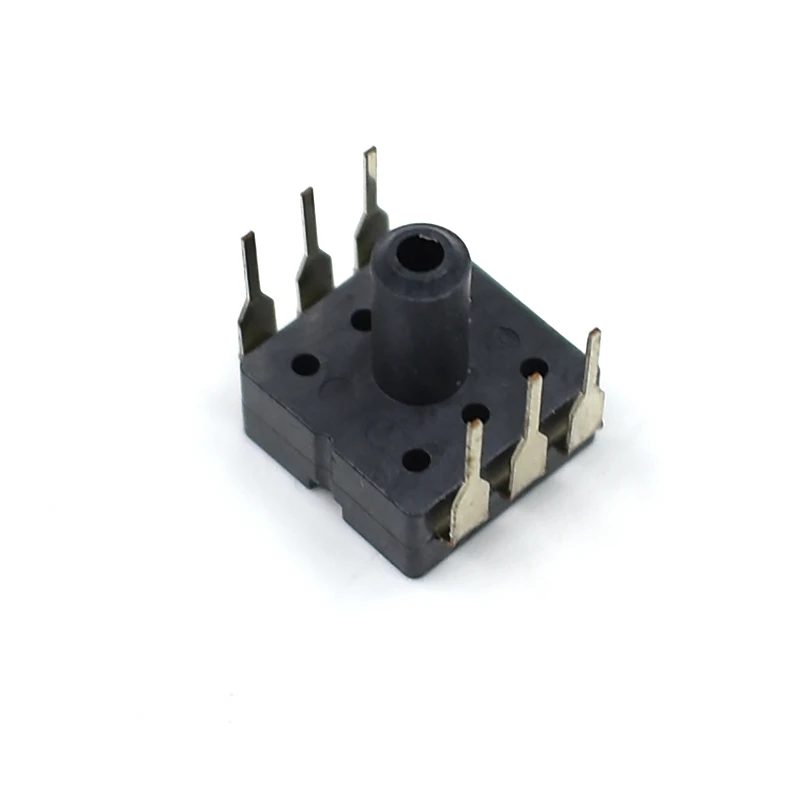

Pressure Sensor MPS20N0040D-GDR 0-40kPa DIP 6Pin (Reverse Pin)

Description

MPS20N0040D-GDR Reverse Pin Pressure Sensor [5V] [40Kpa] is a small analog-type air pressure sensor, which is compatible with Arduino boards and can be supplied with 5VDC or constant current 1mA. This is a very low cost, easy to use and easy to install in OEM applications sensor. This sensor series can sense and measure from zero up to 40kpa (differential pressure), so it can be chosen from a variety of range.
this sensor part can be embedded in Arduino boards, automotive industry such as in tire pressure measuring sensors, MAP sensors, tire air pumps, and air braking systems found in some cars, buses, and trucks, and in the health industry such as in air-pumped-style blood pressure sensors, etc.

Features:

• Solid, MEMS technology, high reliability
• Low cost
• Wide monitoring and control media
• The application of a wide temperature range
• Easy to use, choose from a variety of range. Easy to use, easy to install in OEM equipment
• Application areas:
• Automotive: tire pressure, car air pump, MAP sensor, diagnostic equipment, automotive sensors.
• Industry: Air brake switch, portable pressure gauge, such as digital pressure gauge,
• environmental monitoring, consumer and sports
• Health care: patient monitoring and diagnostic equipment, such as blood pressure monitors,
• medical instrumentation and monitoring
• Range: 40kpa (differential pressure)
• Output: mV signal
• Electricity supply: 5VDC or constant current 1Ma
• Linear accuracy: 0.25% FS

Specifications:

1. Measuring Range: 0-40KPa
2. Max pressure capacity of three times the measuring range
3. Work power supply 5 VDC,
4. Input impedance of 4 – 6 KΩ
5. The output impedance of 4 – 6 KΩ
6. Operating temperature -40 – 85 ° C -40 ° F – +185 ° F
7. Storage Temperature -40 – 125 ° C -40 ° the F – +257 ° F
8. Accessible media, clean, dry, non-corrosive gases
9. Bias voltage ± 25 mV
10. Full-scale output voltage 50 – 100 mV
11. Bridge Resistance to 4 – 6 KΩ
12. Linearity ± 0.3% F.S.
13. Hysteresis ± 0.7% F.S.
14. Bias Temperature coefficient ± 0.08% of F.S. / °c
15. Temperature coefficient of sensitivity -0.21 % FS/ °c

Applications:

Automobile: tire pressure gauge, vehicle-mounted air pump, MAP sensors, diagnostic equipment, automotive sensors.
Industry: air brake switch, portable pressure gauge, such as digital pressure gauge, environment monitor.
Medical equipment: patient monitoring and diagnostic equipment, such as blood pressure monitor, medical instrument, and monitor.
