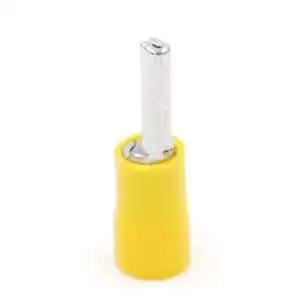

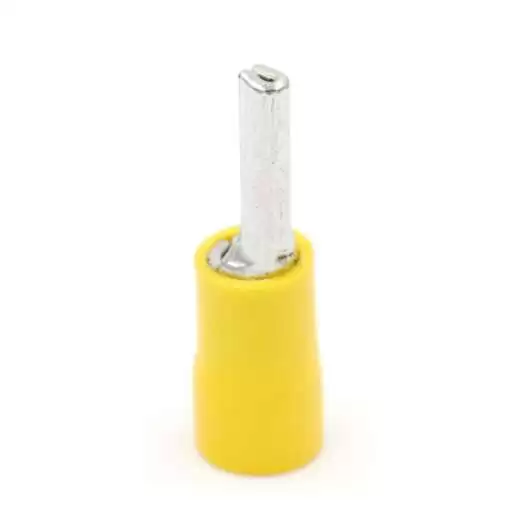

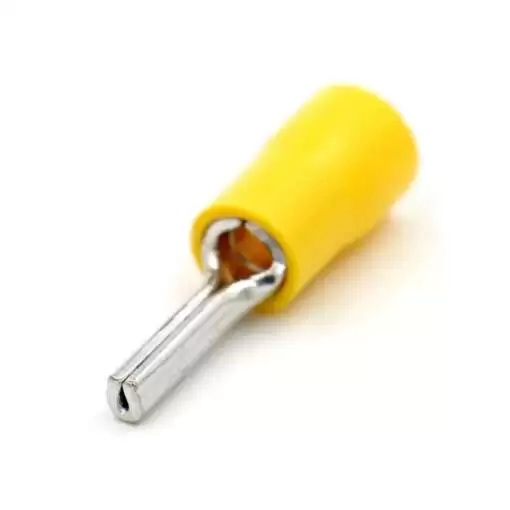

PTV5.5-13 Insulated Pin Terminal (10Pcs)

The PTV5.5-13 insulated pin terminal is designed for securely connecting 12-10 AWG (4-6 mm²) wires to male pin connectors, providing a stable electrical connection. The insulated sleeve offers protection against accidental electrical contact and prevents short circuits. Its pin design ensures a reliable connection, making it perfect for demanding electrical applications, including automotive, industrial, and power distribution systems. The terminal is easy to install with a crimping tool, ensuring a long-lasting, secure connection in various environments.

Features:

• Pin design ensures a stable and reliable connection with male pin connectors.
• The insulated sleeve prevents accidental electrical contact, improving safety and reducing the risk of short circuits.
• Simple crimping process makes it easy to connect wires quickly and securely.
• Tin-plated copper construction offers excellent conductivity and resistance to corrosion, ensuring longevity.
• Ideal for use in automotive, industrial, and power distribution applications.
• YELLOW insulation for easy identification, indicating compatibility with 12-10 AWG wire sizes.
• Rated for high temperatures and voltages, making it suitable for harsh environments.

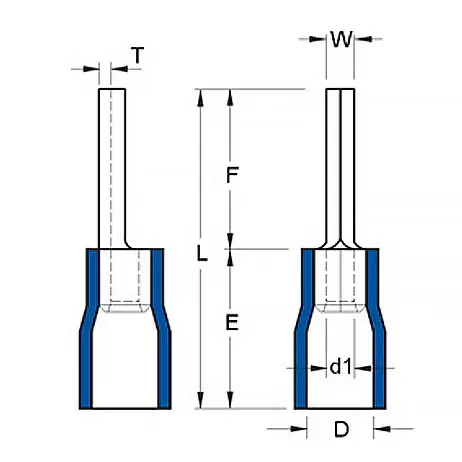

Dimensions:

T: 1 mm                      W: 2.8 mm

L: 27 mm                    F: 14 mm

E: 13 mm                    D: 6.4 mm

D1: 3.4 mm

Specifications:

• Terminal Type: Insulated Pin Terminal
• Model NO:PTV5.5-13
• Color: YELLOW
• Pin Type: Designed for use with male pin connectors
• Wire Gauge:12-10 AWG (4-6 mm²)
• Insulation Material: PVC/Nylon
• Conductor Material Tin-plated copper
• Voltage (Max.): 600V
• Current(Max.):  48A
• Temperature Rating: 75°C to 105°C
• Quantity: 10 pieces per package

Applications:

• Automotive Wiring.
• Industrial Equipment.
• Household Electrical Systems.
• Renewable Energy Systems.
• HVAC Systems.
• Audio and Lighting Systems.
• Marine Applications.

Package Contents:

1X PTV5.5-13 Insulated Pin Terminal (10 pieces).
