RF-300C DC Мotor 2V 3500 rpm
The RF-300C DC Motor 2V 3500 rpm is a compact and efficient motor designed for low-voltage applications. Operating at 2V with a no-load speed of approximately 3500 RPM, it delivers reliable performance with minimal power consumption. Its small size, quiet operation, and stable output make it ideal for use in hobby electronics, small robotics, portable devices, and precision instruments. The motor features a durable build, ensuring long-lasting use in various light-duty applications where space and efficiency are key.
Features:
- Compact and lightweight design.
- Low voltage operation (ideal for battery-powered devices).
- Quiet and efficient performance.
- Suitable for continuous or intermittent duty.
- Long life with low maintenance.
- Versatile for various hobby, robotics, and small device applications.
Specifications:
| Operating Voltage (VDC) | 0.5 to 4.0 V |
| Diameter | 24 mm |
| Shaft Length | 3mm |
| Nominal Voltage | 2 V |
| Speed (No Load) | 3500 rpm |
| Current (No Load) | 0.032 A |
| Speed (At Maximum Efficiency) | 2700 rpm |
| Current (At Maximum Efficiency) | 0.12 A |
| Torque (At Maximum Efficiency) | 3.8 g·cm 0.37 mN·m |
| Output Power (At Maximum Efficiency) | 0.11 Watts |
| Starting Torque | 18.0 g·cm 1.76 mN·m |
| Starting Current | 0.42 A |
| Operating Temperature | -30 to +70 ºC |
| Motor Type | Brushed |
| General Motor Size | Micro |

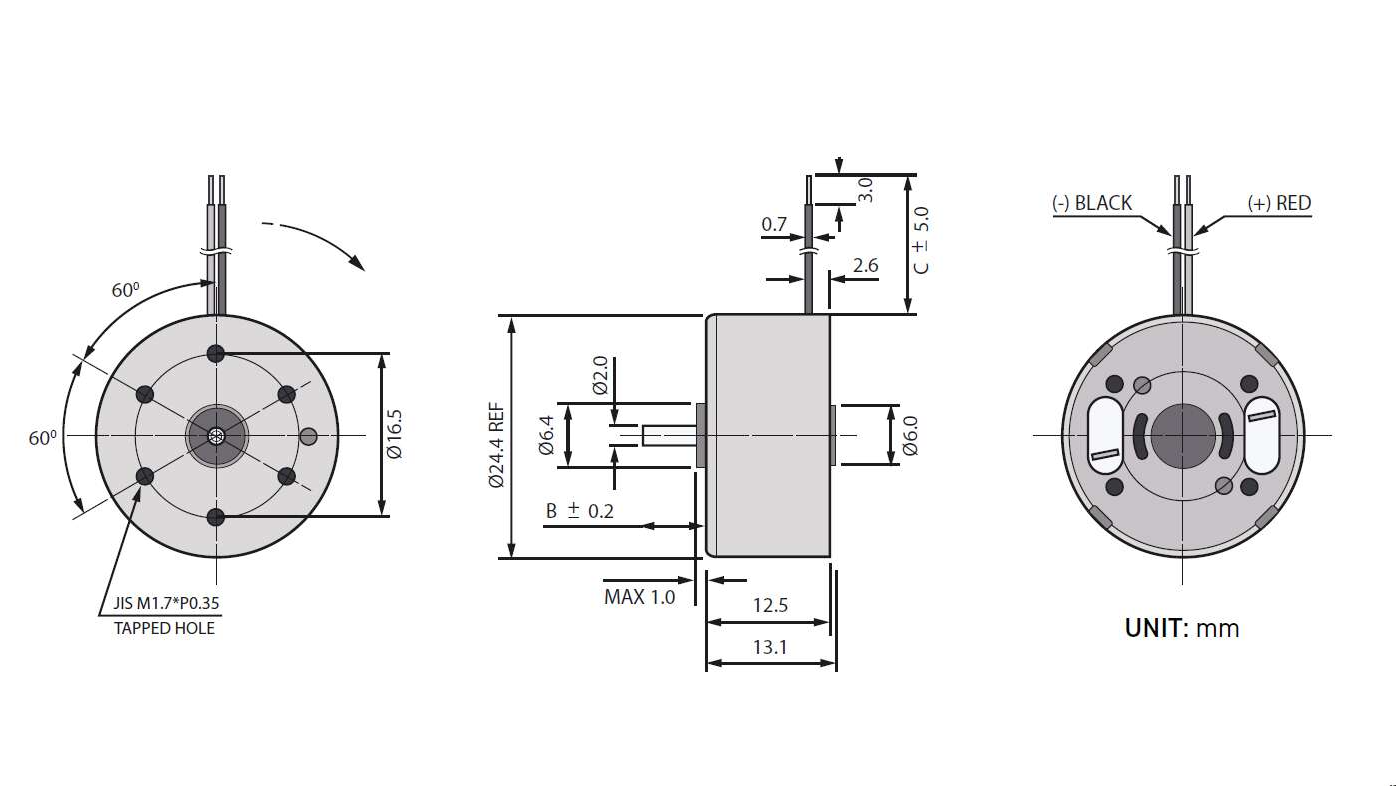

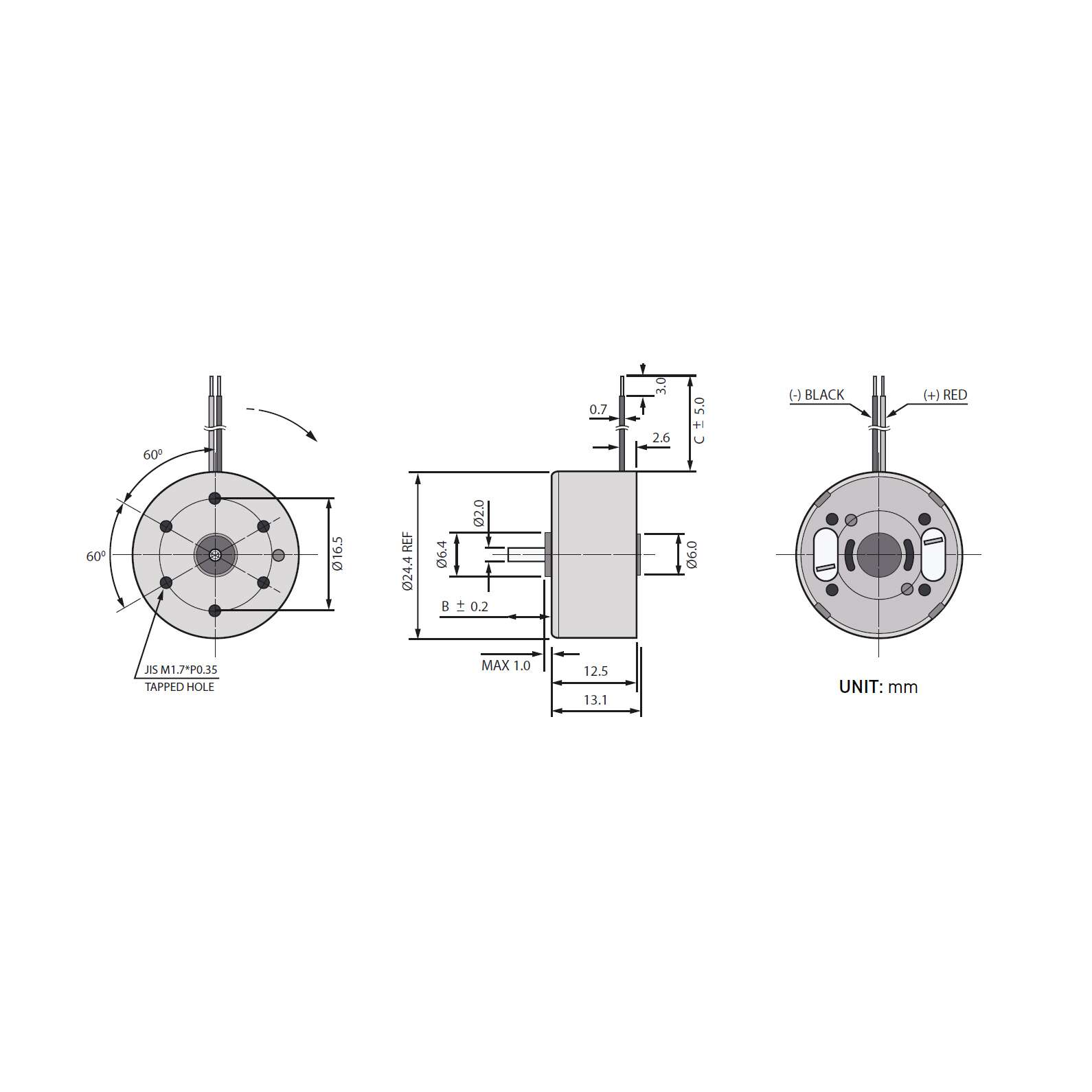

Dimensions:
B=3mm , C=15cm
Applications:
- Toys and Hobby Projects.
- Miniature Robots.
- DIY Electronics.
- Portable Fans and Blowers.
- Electric Toothbrushes and Shavers.
- CD/DVD Drives and Optical Devices.
- Medical and Lab Instruments.
- Educational Kits.
Package Contents:
1 X RF-300C DC Мotor 2V 3500 rpm
