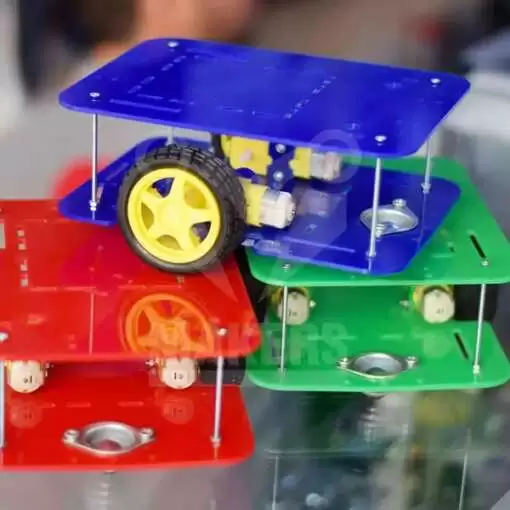

Robot Platform (2 Gear Motors + 2 Wheels + Caster Wheel)

Description:

A Robot Platform 2WD (2 Gear Motors + 2 Wheels+ Free Wheel) is a versatile mobile robot platform that uses four gear motors and four wheels to move around. It’s often used in robotics projects for tasks like navigation, object manipulation, and exploration. The Plastic motor with 1:48 gearbox. The dual shaft turns up to about 600rpm. Powered by 3-12 volts, draws an average of 190 mA of current (max 250 mA).

Robot Platform Motor Specifications :

• Power supply voltage: 3-12 V
• Power consumption: 190 mA (max. 250 mA)
• Gearbox: 1:48
• Speed: 600 ± 10 rpm (at 12V)
• Shaft diameter: 5.4 mm
• The shaft is cut on both sides
• The shaft has a threaded hole to fit M3 screws (not supplied)
• The motor has a double-shaft

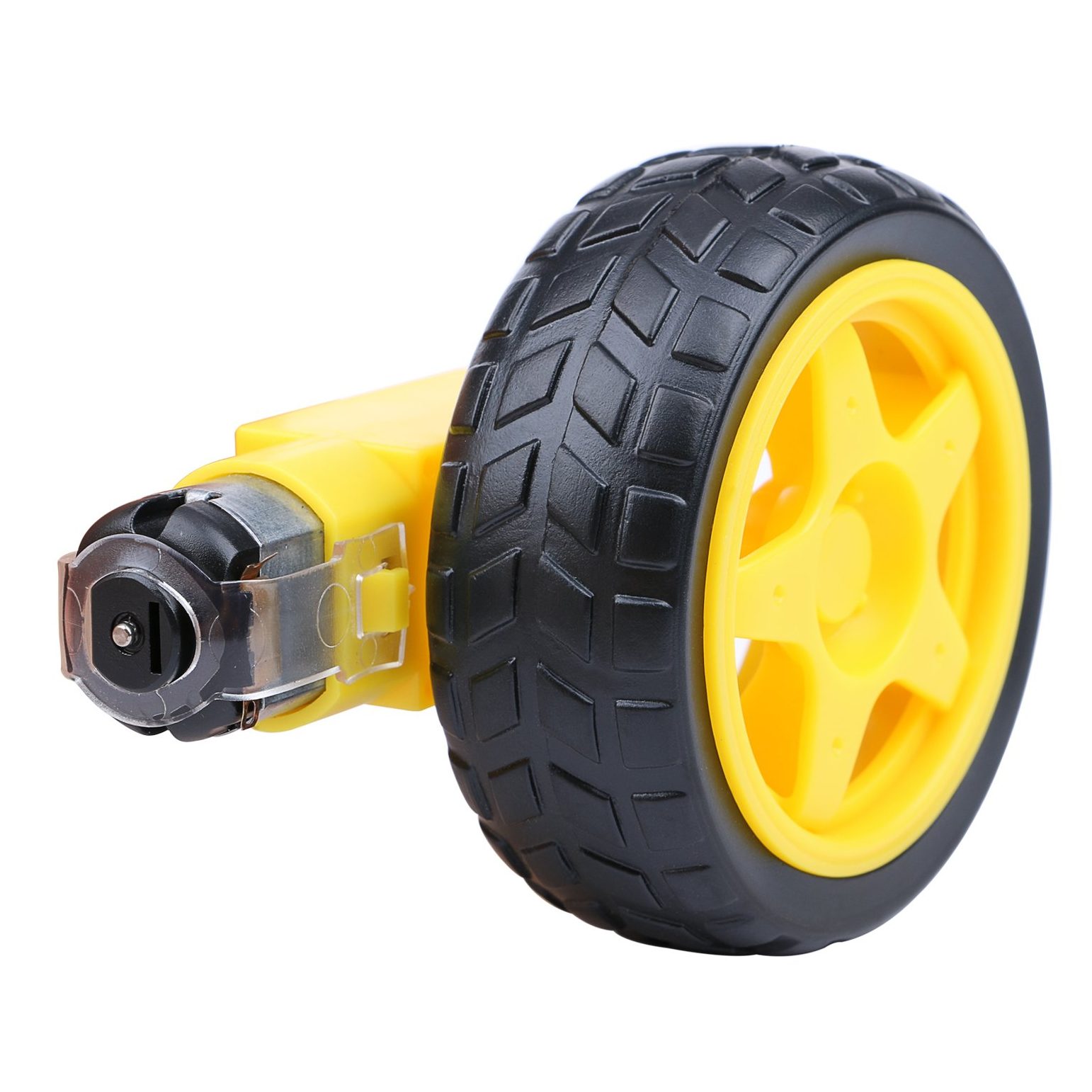

The parameters of the wheel

• Tire diameter: 65mm
• Tire width: 26 mm
• Plastic rims with solid rubber tires

Platform Specifications:

• Dimensions :20 x 15 cm
• Color: (According to your choice)

Package includes:

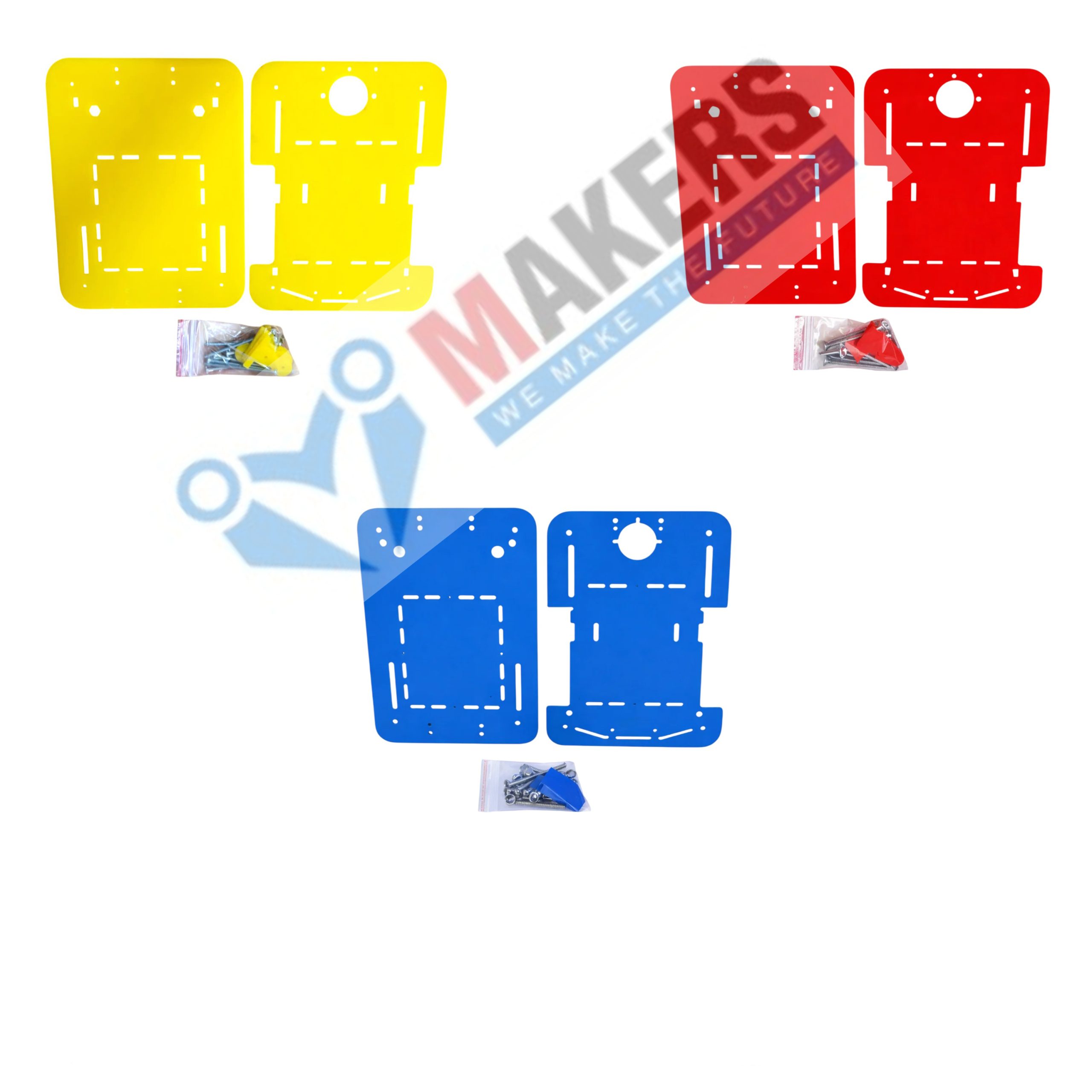

• 2 x Acrylic Baseboard
• 4 x Fixed Motor Bracket
• 2 x Gear Motors
• 2 x Wheels
• 1 x Caster Wheel (Metal)
• 4 x M3*70 screw
• 4 x M3*40 screw
• 16 x M3 nuts
• 2 x M4*10 screw
• 2 x M4 nuts
