Robot Platform 2WD Square Shape
Robot Platform 2WD Square Shape is a robust and adaptable two-wheel drive (2WD) robot chassis engineered for makers, educators, students, and hobbyists building custom robotic vehicles and mobile automation projects.
The platform features a high-quality acrylic baseboard set, consisting of two distinct acrylic plates designed to form a sturdy square-shaped foundation for attaching motors, sensors, microcontrollers, and additional electronics. With its pre-drilled mounting holes and modular construction, this platform simplifies assembly and enables seamless integration of systems without the need for extensive fabrication.
Features:
- Two-wheel drive (2WD) robot platform for mobile robotics projects.
- Square-shaped acrylic chassis base with pre-drilled mounting holes.
- Includes fixed motor brackets and hardware for easy assembly.
- Compatible with a wide range of DC motors and wheel types.
Specifications:
| Parameter | Value |
|---|---|
| Material: | Acrylic |
| Color Options: | Green, White, Pink, Orange, Orange Transparent, Blue, Red, Light Blue, Yellow |

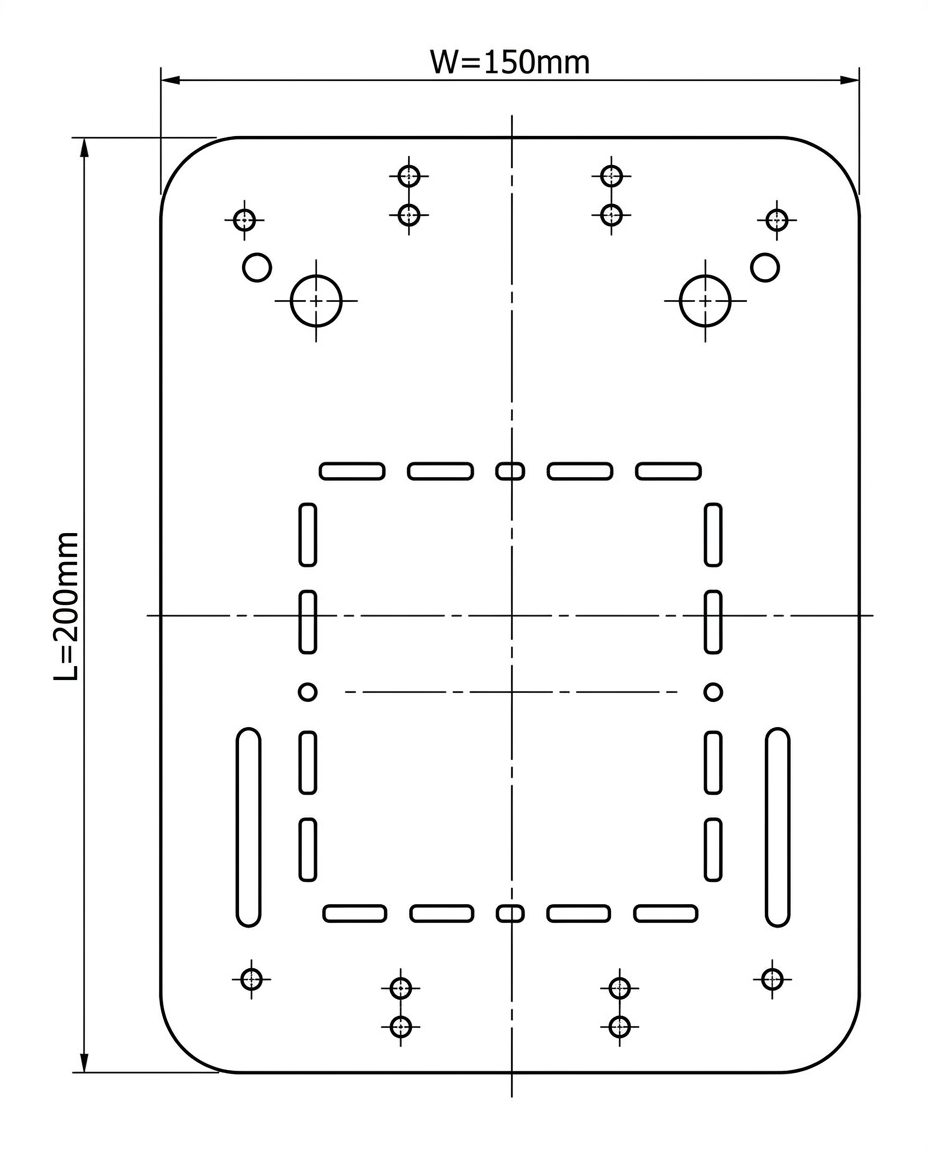

| Dimensions: | 200x150mm |
| Number of Baseboards: | 2 |
| Motor Compatibility: | Standard DC gear motors (not included) |
| Wheel Compatibility: | Standard robotic wheels (not included) |
| Assembly Type: | Screw-based with fixed motor brackets |
Applications:
- Line-following and maze-solving robots.
- Obstacle avoidance and remote-controlled vehicles.
- Educational STEM projects and robotics workshops.
- Prototyping sensor fusion and navigation systems.
- Autonomous mini-robots for competitions.
- Integration with Arduino, Raspberry Pi, or ESP32 controllers
Package Includes:
- 2x Acrylic Baseboard
- 4x Fixed Motor Bracket
- 4x M3*50 screw
- 4x M3*40 screw
- 18x M3 nuts
- 2x M3*15 screw
