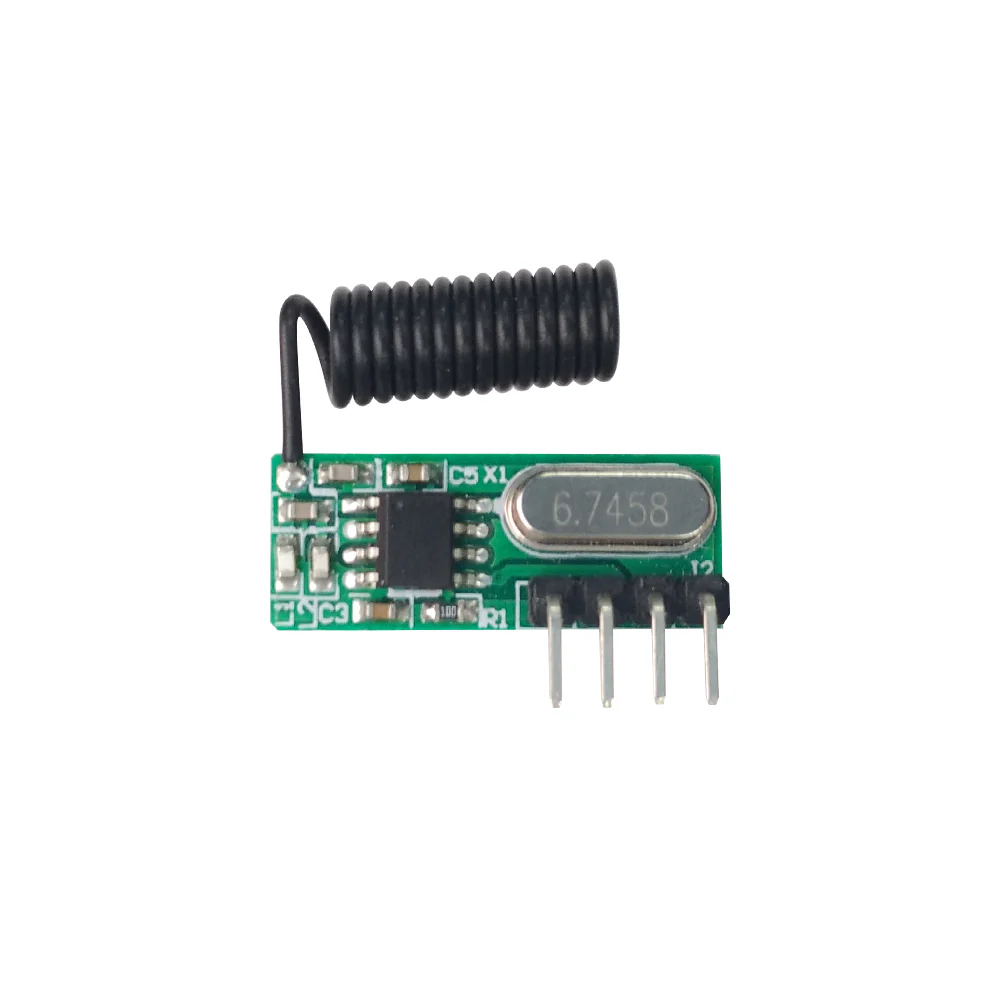

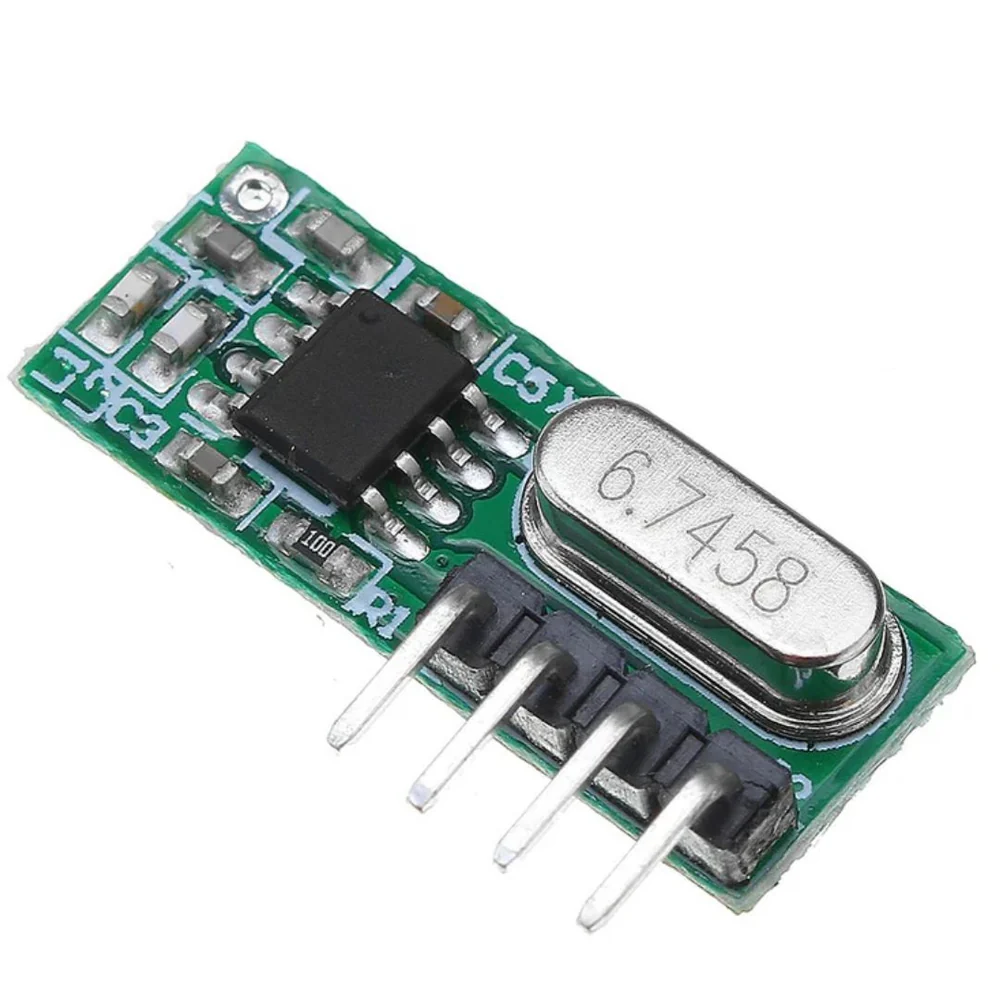

RX500 433MHz RF Receiver Wireless Module For Remote Controls 2.0-5VDC
The RX500 433MHz RF Receiver Wireless Module is a compact superheterodyne wireless receiver designed for reliable long-range RF communication and remote control applications. It operates at 433.92MHz and supports both ASK and OOK modulation, making it compatible with many 433MHz RF transmitters and remote controls.
Features:
- Superheterodyne RF receiver architecture
- Operates at 433.92MHz
- Supports ASK and OOK modulation
- High receiver sensitivity up to -108dBm
- Wide operating voltage from 2V to 5V DC
- Ultra-low power consumption
Specifications:
| Parameter | Value |
|---|---|
| Product Model | RX500 |
| Product Type | Superheterodyne RF Receiver |
| Operating Frequency | 433.92MHz |
| Bandwidth | ±150KHz |
| Modulation | ASK/OOK |
| Receiver Sensitivity | -108dBm |
| Operating Voltage | 2.0-5VDC |
| Operating Current | 2.1mA@5V |
| Quiescent Current | 1uA |
| Dynamic Range | >60dB |
| Data Rate | Up to 2KHz (General), Up to 10KHz (Max) |
| Temperature Range | -40°C~+85°C |
| Module Dimensions | 23.5mmx9mmx1mm |
| Pin Count | 4Pin |
| Antenna Type | External Spiral/Spring Coil |
Configuration:
Applications:
- Wireless Remote Controls
- Smart Home Systems
- Wireless Light Switches
- Garage Door Controllers
- Home Security Systems
- Wireless Alarm Systems
- Remote Control Sockets
- Wireless Sensors
- Remote LED Controllers
- Arduino Projects
- IoT Devices
- Wireless Automation Systems
Package Include:
1x RX500 433MHz RF Receiver Wireless Module For Remote Controls
