SDL20N75 Passive Delay Line IC DIP-16

Specifications:

• Part Number: SDL20N75
• Impedance: 75Ω ±10%
• Total Td: 20ns ± 2ns
• Tap to Tap Td: 2ns ± 0.5ns
• Rise Time (Max.): 5ns
• Distortion (Max.): 15%
• Attenuation (Max.): 10%
• Insulation Resistance: 100MΩ min. DC 50V
• Temperature Coefficient: ±100PPM/°C Max
• Operation Temperature Range: 0°C ∼+70°C
• Range Temperature Range: -20°C ∼+85°C

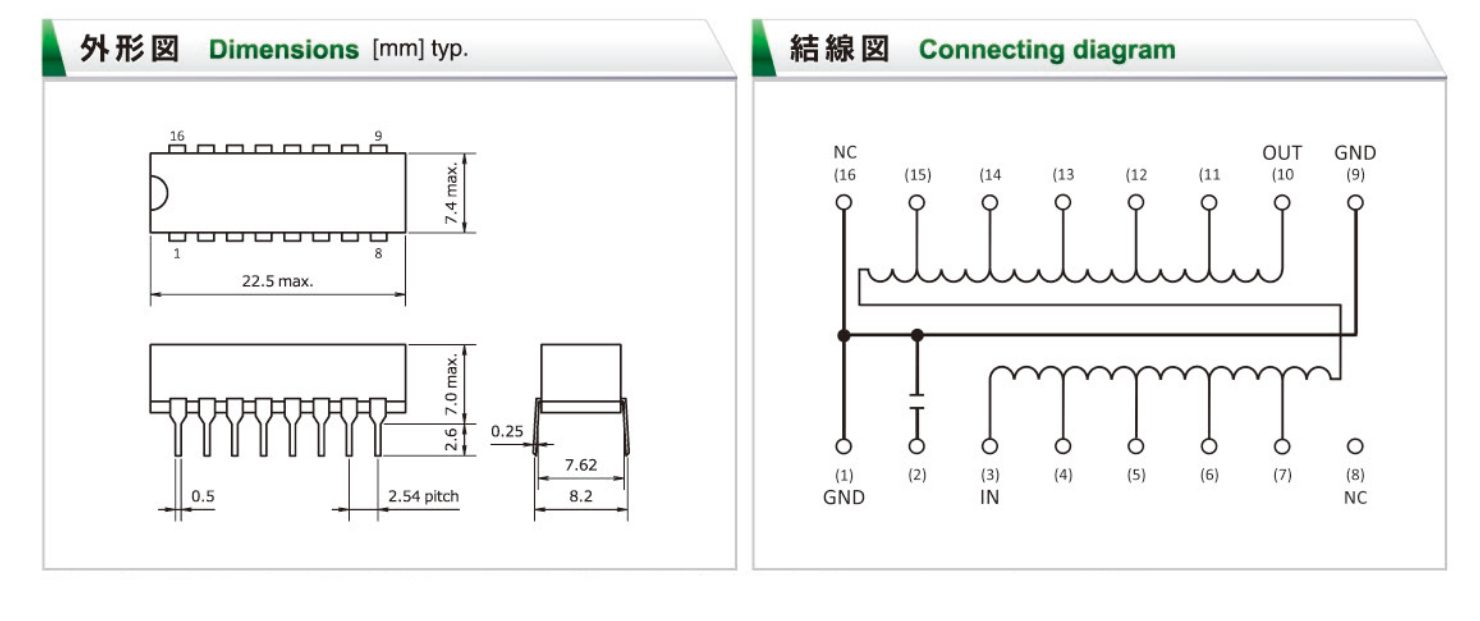

Datasheet
