Selector Switch SPDT 2-NO 3-Position ZB2-BE101C 22mm

Selector Switch SPDT 2-NO 3-Position ZB2-BE101C

Features:

• Durability: ZB2 series is built to handle industrial environments, offering high durability and reliability.
• Easy Installation: The 22mm diameter fits into standard industrial mounting cutouts.

Key Specifications:

• Type: Selector Switch (SPDT – Single Pole Double Throw)
• Position: 3-Position (typically used for choosing between different operating modes or settings)
• Contacts:
  • 2-NO (Normally Open): The switch has two normally open contacts, which means the circuit is open by default and will close when the switch is activated.
• Ith: 10A
• Ui: 600V
• Uimp: 6KV
• AC 15: 240V 3A
• Size: 22mm (this refers to the diameter of the mounting hole required for installation)
• Series: ZB2 (ZB2 series is used for control and signaling purposes)
• Actuator: The actuator (knob) is typically designed for manual operation, rotating to select between different positions.

Applications:

• Industrial Control: The ZB2-BE101C selector switch is often used in control panels for machinery, systems that require manual selection between different operating modes.
• Machine Builders: Used in applications where the operator must select between different functions or stages of an operation, like controlling motor speeds, switching between operational states, or enabling different modes.

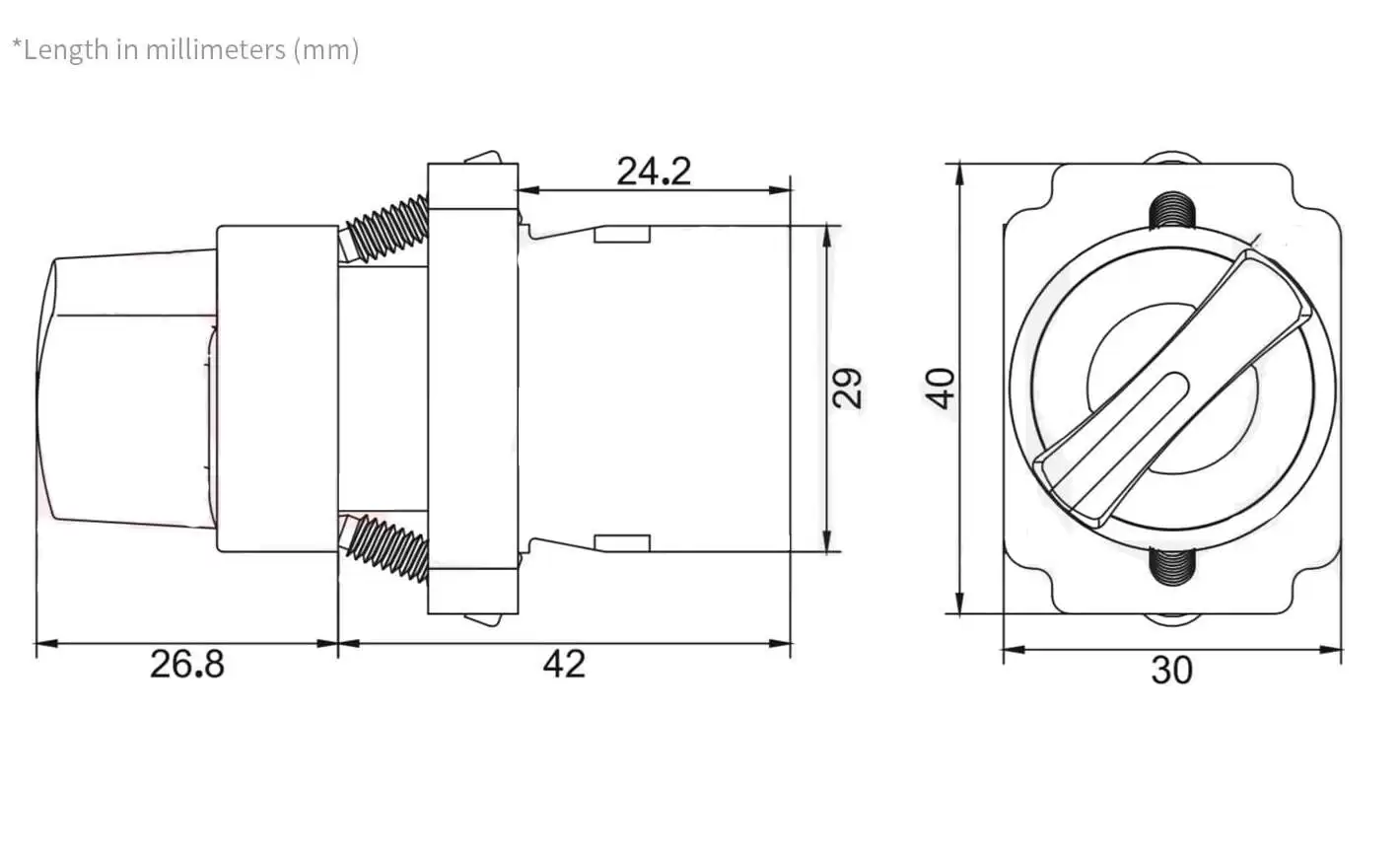

Dimensions:
