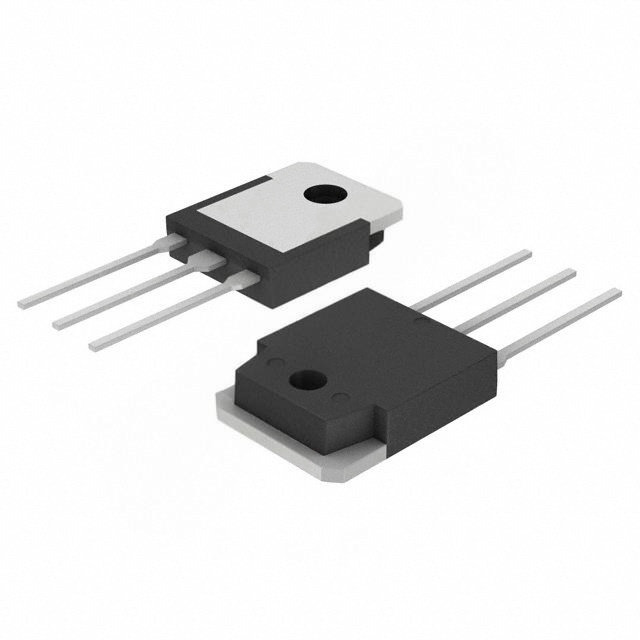

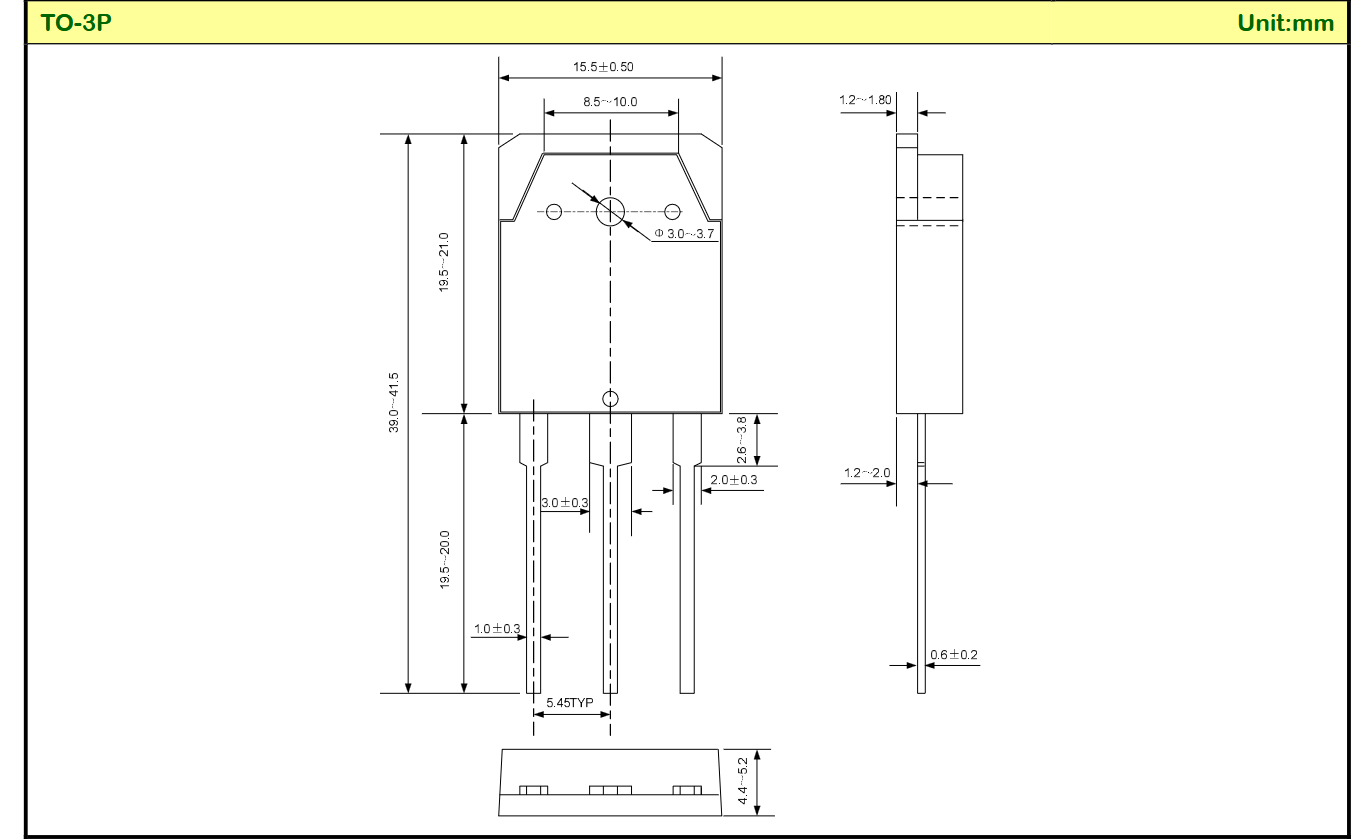

Silan 40N60NPFD Field Stop IGBT Transistor 600V 40A TO-3P

Silan SGT40N60NPFD: 600V, 40A Field Stop IGBT in TO-3P package. Low VCE(sat) 1.8V, fast switching. Ideal for induction heating, UPS, SMPS & PFC.

95.00 EGP

Buy Now
Availability: In Stock
SKU:3496300159437
Silan 40N60NPFD Field Stop IGBT Transistor 600V 40A TO-3P

The SGT40N60NPFDPN from Silan Microelectronics is a 40A, 600V Field Stop IGBT in a TO-3P package. Using Field Stop IGBT technology, it offers the optimum performance for induction heating, UPS, SMPS and PFC applications. The device combines low conduction loss (VCE(sat) typ. 1.8V @ IC = 40A) with fast switching and high input impedance, and features an integrated fast recovery diode (FRD) with a typical reverse recovery time of 32ns.

Features
  • 40A, 600V, VCE(sat) (typ.) = 1.8V @ IC = 40A
  • Low conduction loss
  • Fast switching
  • High input impedance

Specifications
Absolute Maximum Ratings (TC = 25°C unless otherwise noted)
Parameter Symbol Ratings Units
Collector to Emitter Voltage VCE 600 V
Gate to Emitter Voltage VGE ±20 V
Collector Current (TC = 25°C) IC 80 A
Collector Current (TC = 100°C) IC 40 A
Pulsed Collector Current ICM 120 A
Maximum Power Dissipation (TC = 25°C) PD 290 W
Power Dissipation Derating PD 2.32 W/°C
Operating Junction Temperature TJ -55 to +175 °C
Storage Temperature Range Tstg -55 to +175 °C
Thermal Characteristics
Parameter Symbol Ratings Units
Thermal Resistance, Junction to Case (IGBT) RθJC 0.24 °C/W
Thermal Resistance, Junction to Case (FRD) RθJC 1.4 °C/W
Thermal Resistance, Junction to Ambient RθJA 35.5 °C/W
Electrical Characteristics – IGBT (TC = 25°C unless otherwise noted)
Parameter Symbol Test Conditions Min. Typ. Max. Units
Collector to Emitter Breakdown Voltage BVCE VGE = 0V, IC = 250µA 600 V
C-E Leakage Current ICES VCE = 600V, VGE = 0V 200 µA
G-E Leakage Current IGES VGE = 20V, VCE = 0V ±500 nA
G-E Threshold Voltage VGE(th) IC = 250µA, VCE = VGE 4.0 5.0 6.5 V
Collector to Emitter Saturation Voltage VCE(sat) IC = 40A, VGE = 15V 1.8 2.7 V
Collector to Emitter Saturation Voltage VCE(sat) IC = 40A, VGE = 15V, TC = 125°C 2.1 V
Input Capacitance Cies VCE = 30V, VGE = 0V, f = 1MHz 1850 pF
Output Capacitance Coes VCE = 30V, VGE = 0V, f = 1MHz 180 pF
Reverse Transfer Capacitance Cres VCE = 30V, VGE = 0V, f = 1MHz 50 pF
Turn-On Delay Time Td(on) VCE = 400V, IC = 40A, Rg = 10Ω, VGE = 15V, inductive load 18 ns
Rise Time Tr VCE = 400V, IC = 40A, Rg = 10Ω, VGE = 15V, inductive load 80 ns
Turn-Off Delay Time Td(off) VCE = 400V, IC = 40A, Rg = 10Ω, VGE = 15V, inductive load 110 ns
Fall Time Tf VCE = 400V, IC = 40A, Rg = 10Ω, VGE = 15V, inductive load 105 ns
Turn-On Switching Loss Eon VCE = 400V, IC = 40A, Rg = 10Ω, VGE = 15V, inductive load 1.87 mJ
Turn-Off Switching Loss Eoff VCE = 400V, IC = 40A, Rg = 10Ω, VGE = 15V, inductive load 0.68 mJ
Total Switching Loss Est VCE = 400V, IC = 40A, Rg = 10Ω, VGE = 15V, inductive load 2.55 mJ
Total Gate Charge Qg VCE = 300V, IC = 20A, VGE = 15V 100 nC
Gate to Emitter Charge Qge VCE = 300V, IC = 20A, VGE = 15V 11 nC
Gate to Collector Charge Qgc VCE = 300V, IC = 20A, VGE = 15V 52 nC
Electrical Characteristics – FRD (TC = 25°C unless otherwise noted)
Parameter Symbol Test Conditions Min. Typ. Max. Units
Diode Forward Voltage Vfm IF = 20A, TC = 25°C 1.9 2.6 V
Diode Forward Voltage Vfm IF = 20A, TC = 125°C 1.5 V
Diode Reverse Recovery Time Trr IES = 20A, dIES/dt = 200A/µs 32 ns
Diode Reverse Recovery Charge Qrr IES = 20A, dIES/dt = 200A/µs 74 nC
Applications
  • Induction heating
  • UPS (uninterruptible power supply)
  • SMPS (switched-mode power supply)
  • PFC (power factor correction)
Package Content
  • 1 x Silan 40N60NPFD Field Stop IGBT Transistor 600V 40A TO-3P
DataSheet
