SMA Connector to IPX4 Coaxial Extension Cable
The SMA Connector to IPX4 Male and Female to IPEX4 Coaxial Extension Cable designed for extending or relocating antennas in wireless communication systems. One end features an IPEX4 (MHF4/IPX4) miniature RF connector for direct connection to wireless modules, while the opposite end is available with either an SMA male Socket or SMA female plug , allowing compatibility with a wide range of external antennas and RF equipment. It is widely used in Wi-Fi, Bluetooth, LTE, LoRa, Zigbee, GPS, and embedded IoT applications.
Built with a high-quality 50 Ohm miniature coaxial cable and gold-plated connectors, this extension cable provides low insertion loss, excellent shielding, and reliable signal transmission. The flexible cable allows easy antenna positioning to improve wireless performance while ensuring long-term durability in development, industrial, and communication applications.
Features:
- Available with SMA male or SMA female connector.
- IPEX4 (MHF4/IPX4) miniature RF connector.
- Flexible miniature coaxial cable.
- Low insertion loss for RF signals.
- Gold-plated contacts for improved conductivity.
- Excellent shielding against interference.
- Compact and lightweight design.

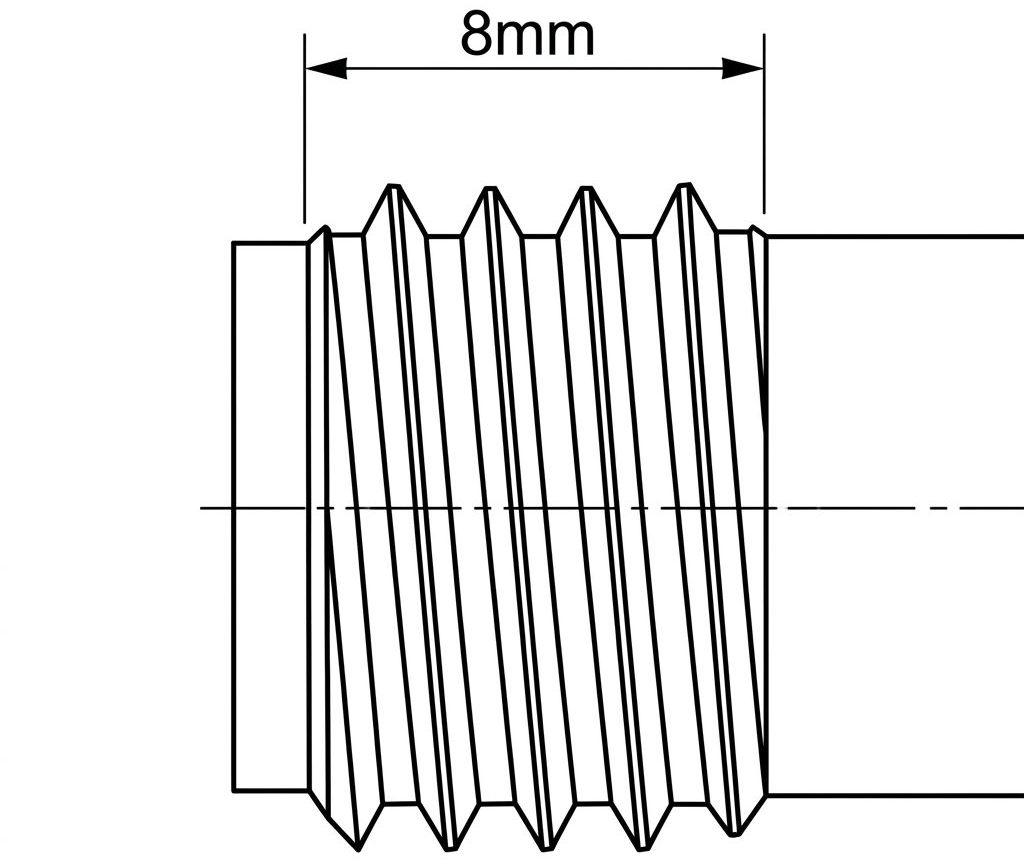

- Secure threaded SMA connection.
- Durable cable construction.
- Suitable for high-frequency wireless applications.
Specifications:
| Parameter | Specification |
|---|---|
| Product Type | RF Coaxial Extension Cable |
| Connector A | SMA Male Socket or SMA Female Plug |
| Connector B | SMA to IPX4 (MHF4/IPX4) Plug |
| Characteristic Impedance | 50 Ohm |
| Cable Type | Miniature RF Coaxial Cable |
| Connector Orientation | Straight |
| Contact Plating | Gold Plated |
| Body Material | Copper Alloy |
| Cable Jacket | Black |
| Mounting Style | Cable Assembly |
| Frequency Range | DC to 6 GHz |
Applications:
- Wi-Fi antennas.
- Bluetooth modules.
- LTE and 4G/5G communication modules.
- GPS/GNSS receivers.
- LoRa and Zigbee devices.
- IoT development boards.
- Embedded wireless systems.
- RF prototyping and testing.
- Wireless routers and gateways.
- External antenna installations.
Package Includes:
- 1 × SMA Connector to IPX4 Coaxial Extension Cable (Depending on SMA Type).
- 1 × Hex Mounting Nut.
- 1 × Lock Washer (Star Washer).
- 1 × Spring Washer.
