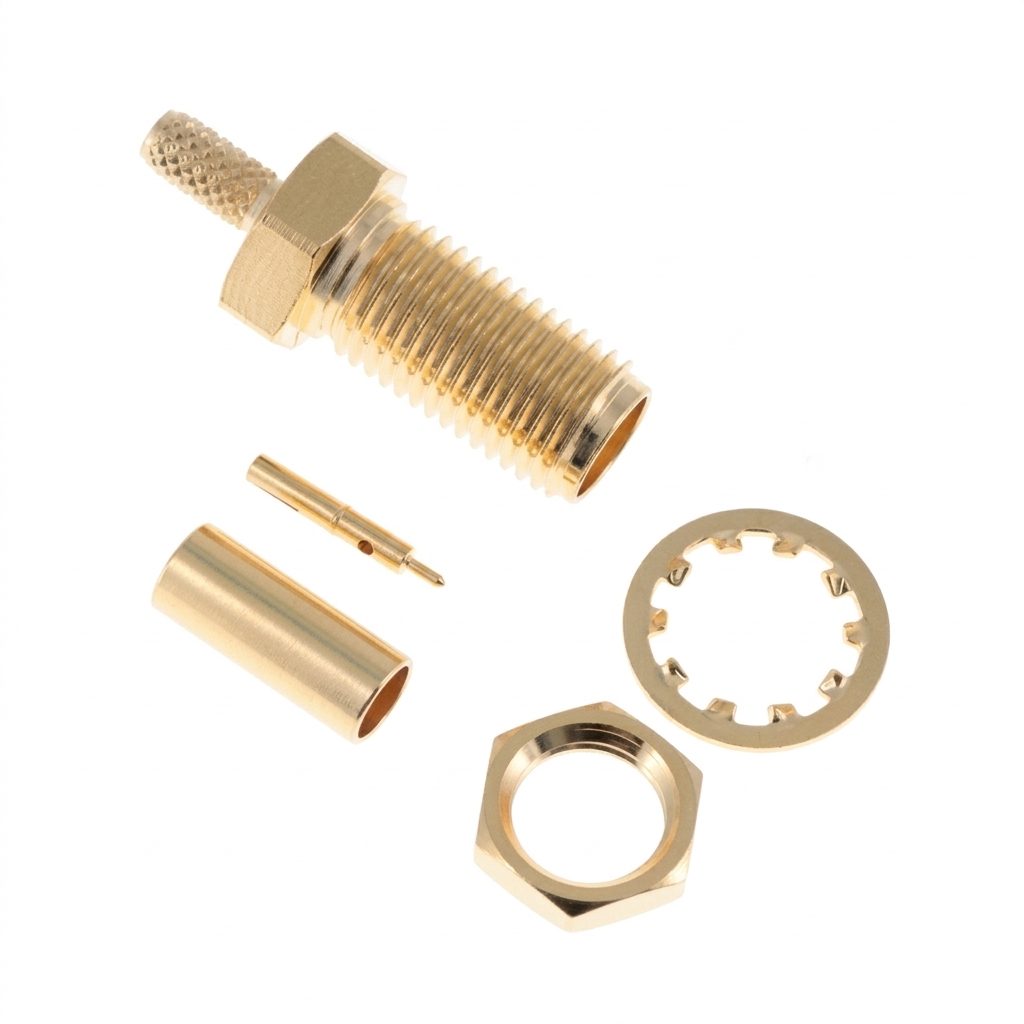

SMA Connector Jack Female Crimp Type for RG174/RG316/LMR100 Cable
The SMA Connector Jack Female Crimp Type is a precision RF connector designed for terminating RG174, RG316, and LMR100 coaxial cables. Featuring a female SMA interface with a crimp-style cable attachment, it provides a durable and low-loss connection for high-frequency signal transmission. The threaded SMA coupling ensures a secure and vibration-resistant connection, making it suitable for both laboratory and field installations.
Manufactured from high-quality brass with a gold-plated center contact and PTFE dielectric insulation, this connector offers excellent electrical performance, corrosion resistance, and long service life. With a 50 Ohm characteristic impedance, it is widely used in Wi-Fi, GPS, LoRa, RF modules, SDR systems, antennas, test equipment, and other wireless communication applications.
Features:
- SMA female (jack) connector.
- Straight cable connector design.
- Crimp termination for easy cable assembly.
- Threaded coupling mechanism.
- Low insertion loss.
- Excellent RF performance.
- Gold-plated center contact.
- PTFE dielectric insulation.
- Durable and corrosion-resistant construction.
- Compatible with multiple coaxial cable types.
Specifications:
| TYPE | DESCRIPTION |
| Connector Style | SMA |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Shield Termination | Crimp |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead |
| Cable Group | RG-174, 316 |
| Fastening Type | Threaded |
| Number of Ports | 1 |
| Housing Color | Gold |
| Center Contact Material | Copper Alloy |
| Includes | 4 pcs – 1 Connector, 1 Ferrule, 1 Lockwasher, 1 Nut |
| Body Material | Brass |
| Body Finish | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 125°C |
Applications:
- RF communication systems.
- Wi-Fi antennas.
- GPS receivers.
- LoRa communication.
- Cellular equipment.
- Software Defined Radio (SDR).
- RF test equipment.
- Signal generators.
- Spectrum analysers.
- Embedded wireless devices.
- Antenna extension cables.
- Industrial RF systems.
Package Includes:
- 1x Connector
- 1x Ferrule
- 1x Lock washer
- 1x Nut
