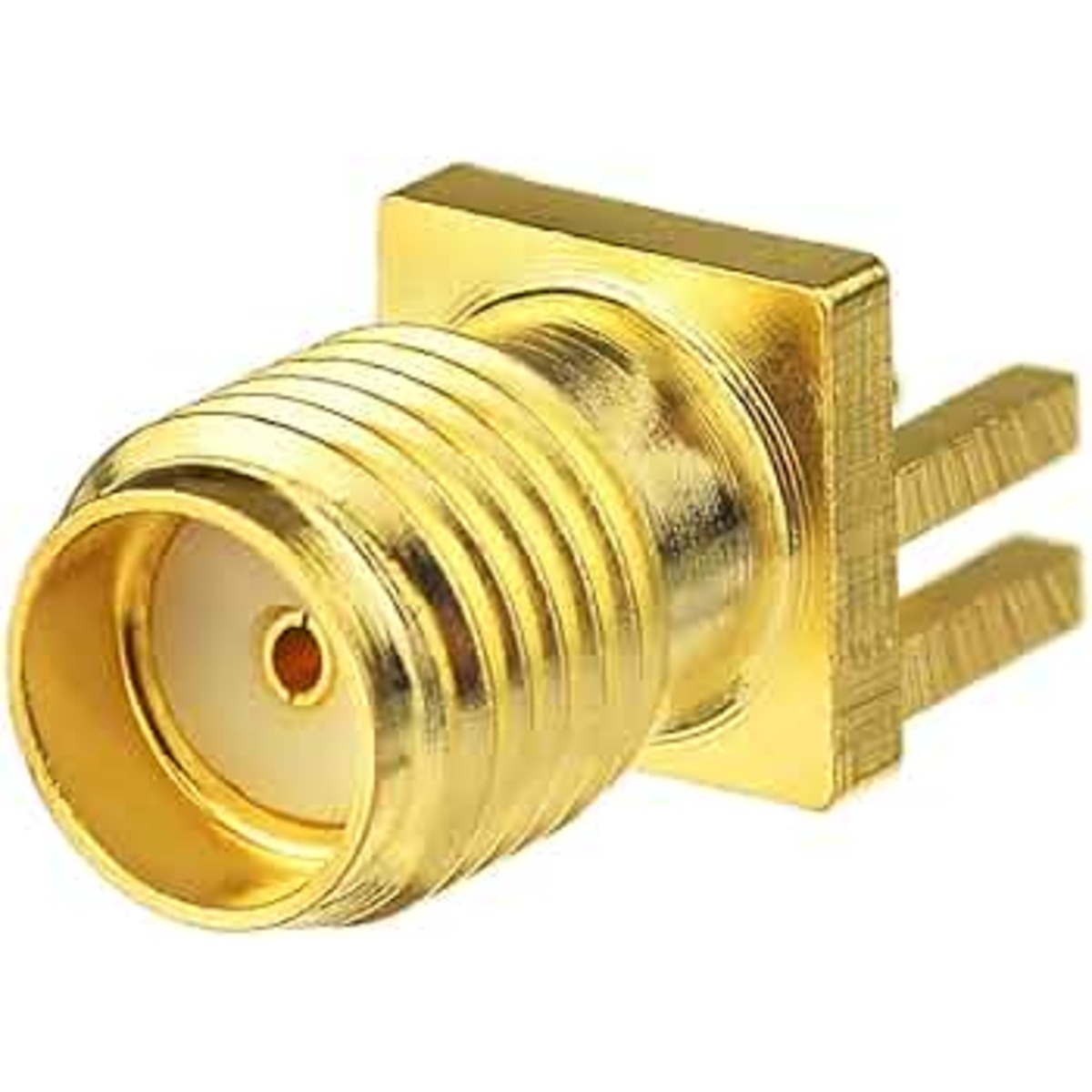

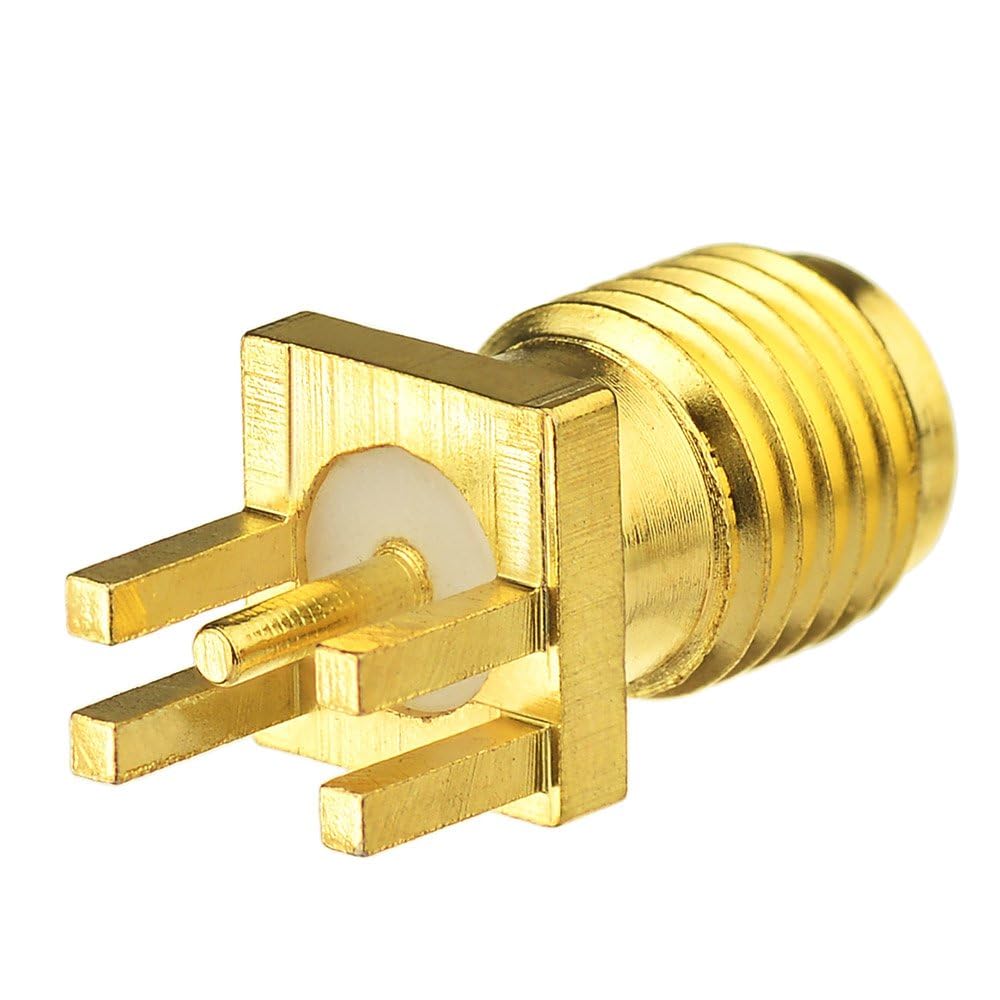

SMA KE13.5 Female Straight Connector Jack Through-Hole for PCB Edge Mount 50Ohm (Full Copper)

SMA KE13.5 Female Straight Connector Jack Through-Hole for PCB Edge Mount 50Ohm (Full Copper)

The SMA KE13.5 Female Straight Connector Jack Through-Hole for PCB Edge Mount 50 Ohm (Full Copper) is a precision RF connector designed to mount directly on the edge of a printed circuit board. Its edge-launch design provides a smooth transition between the PCB transmission line and the SMA interface, minimizing signal reflections and insertion loss in high-frequency applications. It is ideal for RF development boards, antennas, wireless communication devices, and test equipment.

Constructed from full copper with copper-plated contacts and body, this connector offers excellent electrical conductivity and mechanical durability. With a 50 Ohm impedance and operating frequency up to 18 GHz, it is suitable for Wi-Fi, GPS, LoRa, cellular, SDR, microwave circuits, and other RF applications requiring reliable, low-loss signal transmission.

Features:

• SMA female (jack) interface.
• PCB edge-mount design.
• Through-hole solder terminals.
• Straight connector orientation.
• Full copper construction.
• Excellent RF performance.
• Low insertion loss.
• Reliable threaded SMA connection.
• High mechanical strength.
• Suitable for high-frequency applications.

Specifications:

Applications:

• RF communication systems.
• PCB edge-launch RF circuits.
• Wi-Fi modules.
• GPS receivers.
• LoRa devices.
• Cellular communication equipment.
• Software Defined Radio (SDR).
• RF development boards.
• RF measurement equipment.
• Signal generators.
• Spectrum analyzers.
• Antenna interfaces.

Package Includes:

• 1 × SMA KE13.5 Female Straight Connector Jack Through-Hole for PCB Edge Mount 50 Ohm (Full Copper).
