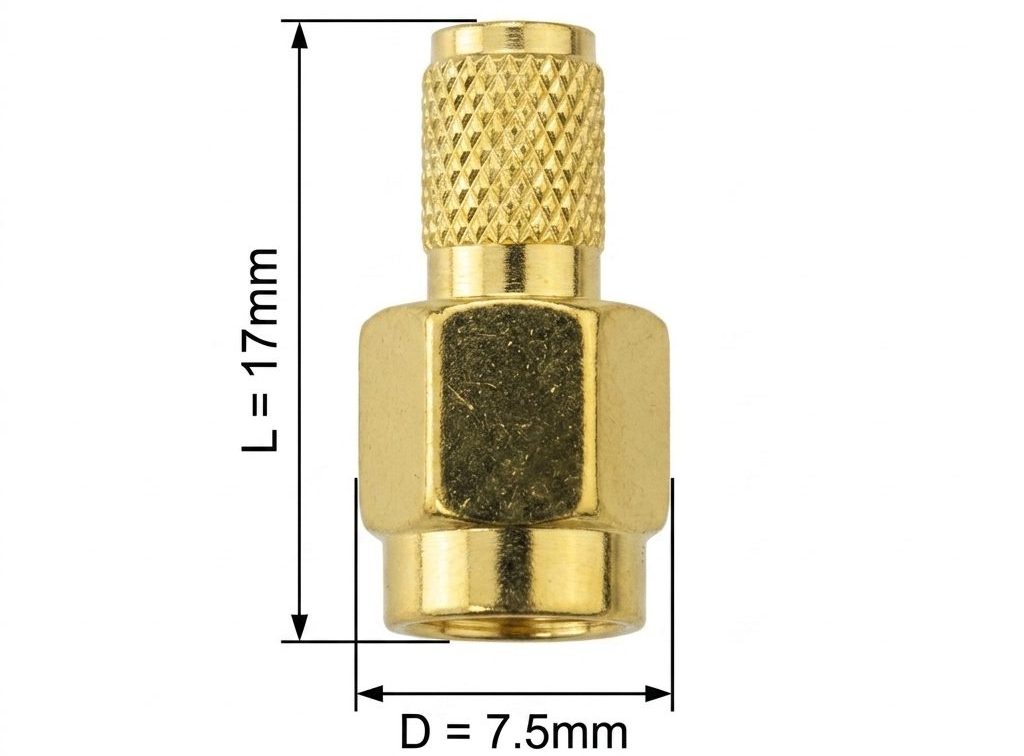

SMA-KZ-3.5 Straight Male Plug Cable Mount Connector
A straight SMA-KZ-3.5 male plug cable mount connector designed for RG59 50 Ohm coaxial cable, providing reliable, low-loss RF connections for antennas, wireless communication equipment, and custom cable assemblies.
30.00 EGP
Buy NowSMA-KZ-3.5 Straight Male Plug Cable Mount Connector for RG59 50 Ohm (Full Copper)
The SMA-KZ-3.5 Straight Male Plug Cable Mount Connector is a precision 50 Ohm RF connector engineered for terminating RG59 coaxial cable. Its straight cable-mount design ensures a secure mechanical connection and excellent RF signal transmission, making it ideal for wireless communication systems, RF modules, antennas, GPS equipment, test instruments, and custom coaxial cable assemblies. The connector uses a crimp ferrule for the cable shield and a soldered center pin to provide dependable electrical and mechanical performance.
Manufactured from full copper with gold-plated contacts, this connector provides excellent electrical conductivity, low insertion loss, and superior corrosion resistance. The PTFE dielectric offers excellent insulation and stable high-frequency performance, while the precision-threaded SMA interface ensures a secure, vibration-resistant connection suitable for professional RF installations and laboratory applications.
Features:
- Standard SMA male plug interface.
- Straight cable mount design.
- Compatible with RG59 coaxial cable.
- Full copper construction.
- Gold-plated contacts for superior conductivity.
- Crimp outer shield termination.
- Solder center pin termination.
- Low insertion loss.
- Precision threaded coupling.
- Suitable for high-frequency RF applications.
Specifications:
| Parameter | Specification |
|---|---|
| Product Type | Cable Mount Connector |
| Model | SMA-KZ-3.5 |
| Connector Type | SMA Male Plug |
| Orientation | Straight |
| Connector Series | SMA |
| Characteristic Impedance | 50 Ohm |
| Compatible Cable | RG59 |
| Mounting Style | Cable Mount |
| Termination Type | Crimp (Outer Shield), Solder (Center Pin) |
| Body Material | Full Copper |
| Contact Plating | Gold Plated |
| Dielectric Material | PTFE |
| Coupling Style | Threaded |
| Frequency Range | DC to 6 GHz (Typical), Up to 12.4 GHz Maximum |
Applications:
- Wi-Fi antenna systems.
- RF communication equipment.
- GPS antenna assemblies.
- Wireless networking devices.
- RF signal distribution.
- Software Defined Radio (SDR).
- RF test and measurement equipment.
- Industrial wireless systems.
- Custom RG59 cable assemblies.
- RF laboratory projects.
Package Includes:
- 1 × SMA-KZ-3.5 Straight Male Plug Cable Mount Connector.
- 1 × Gold-Plated Center Contact Pin.
- 1 × Cable Crimp Ferrule Sleeve.
