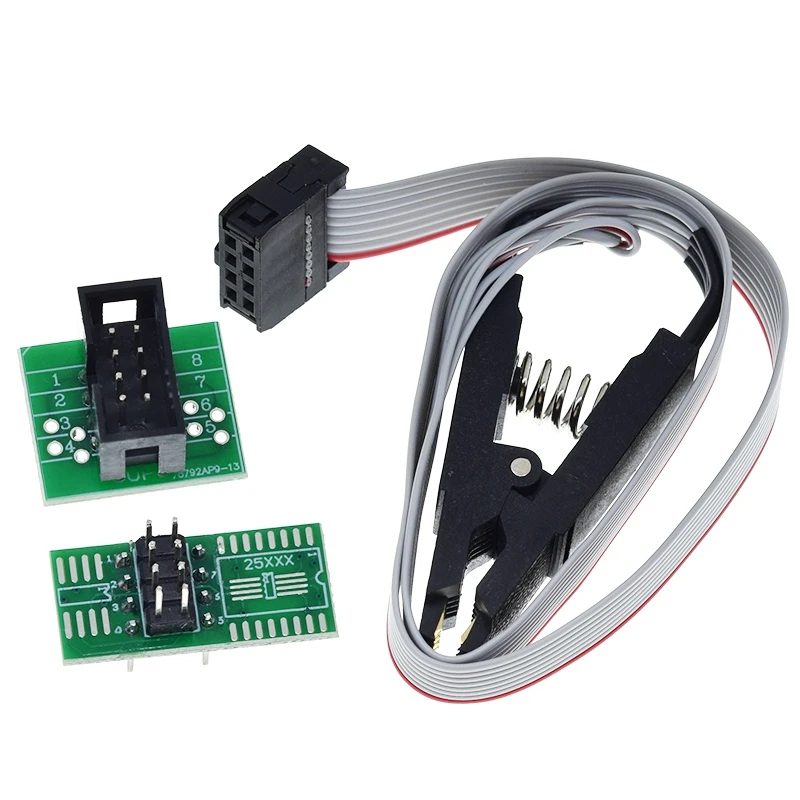

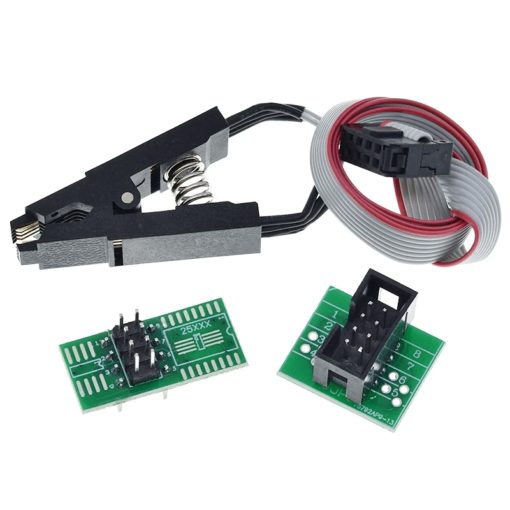

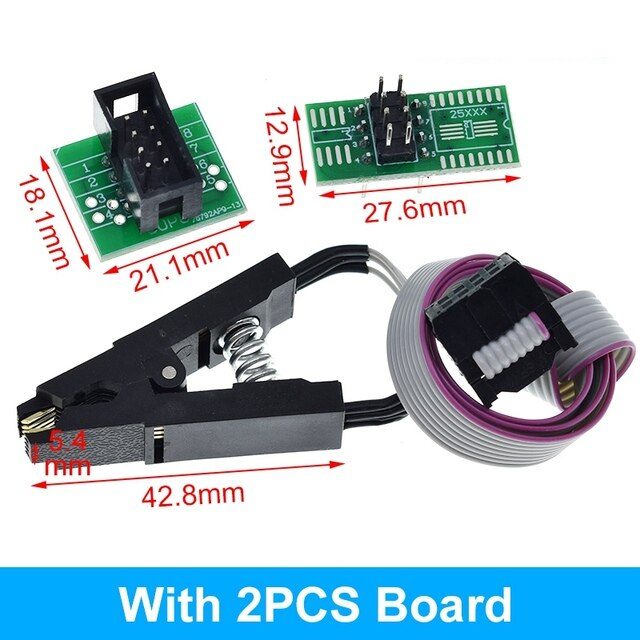

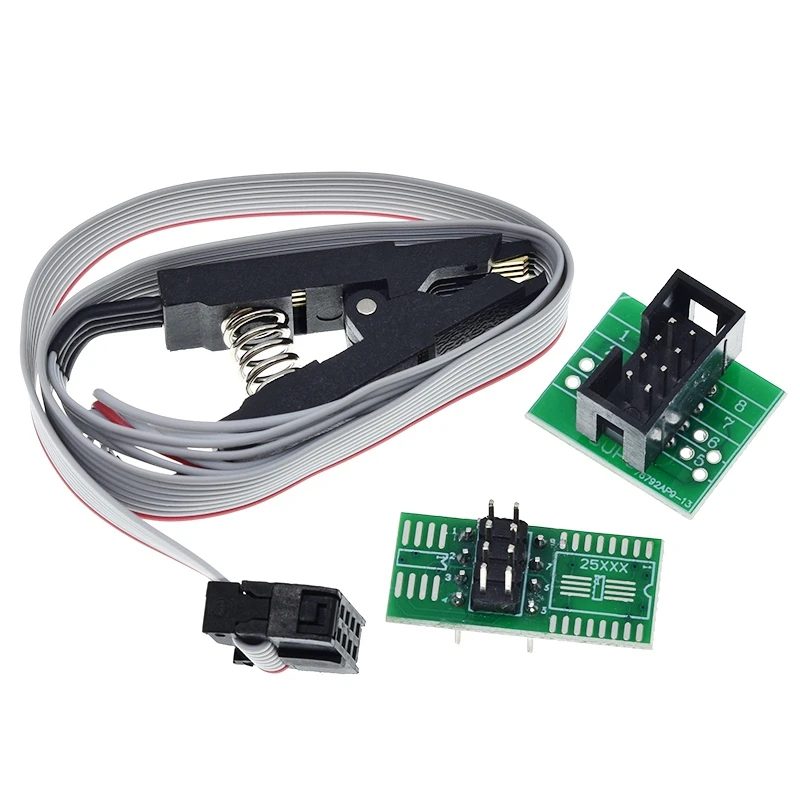

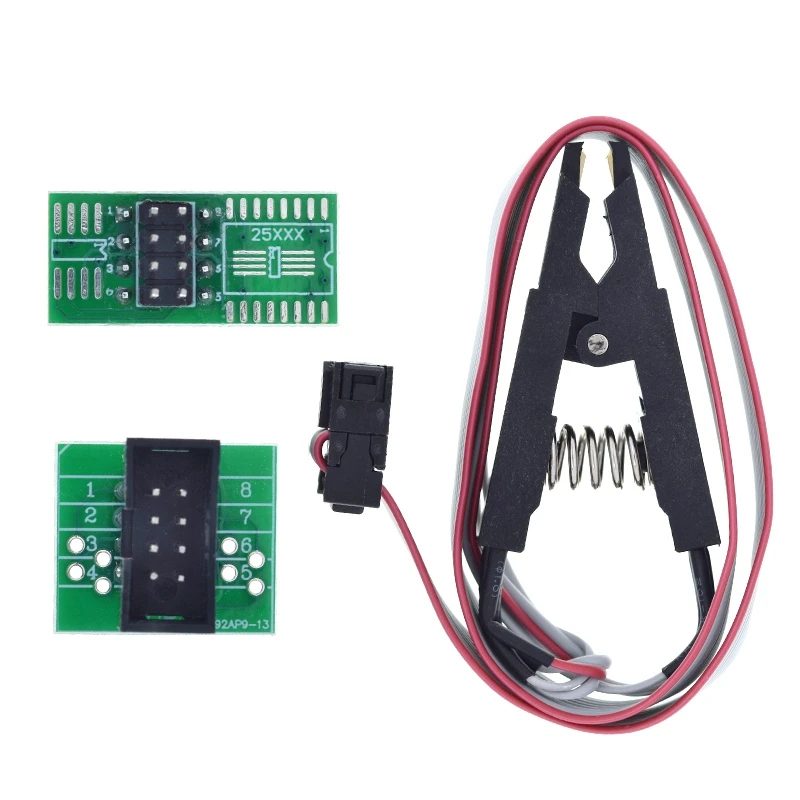

SOIC8 SOP8 Test Clip For EEPROM 93CXX 25CXX 24CXX with IDC Breakout

Programming Adapter for SOP8

This new IC programming clip is perfectly suited for reading or writing EEPROMS. It allows in-circuit, hands-free testing of SOIC8 or SOP8 chips, thereby offering the convenience of not having to remove the chips from the circuit board. The adapters are suitable for 24, 93, 25, 26, series chip and also supports many different EEPROMs having a width of 150mm to 210 mm. You can now program your SOIC8 or SOP8 chips with ease, just clip the chip and use one of the two breakout adapter boards to connect to your programmer!

Quick Spec

• Contacting Material: Copper Alloy
• Contacting Plating: Gold
• Connector Type: Test Clip
• Mounting Type: PC Board
• Case Style: SOIC
• Pin Format: SOIC/SOP 8
• Lead Spacing: 1.27mm
• IC Lead Pitch: 1.27mm
• Cable Length: ±300mm
