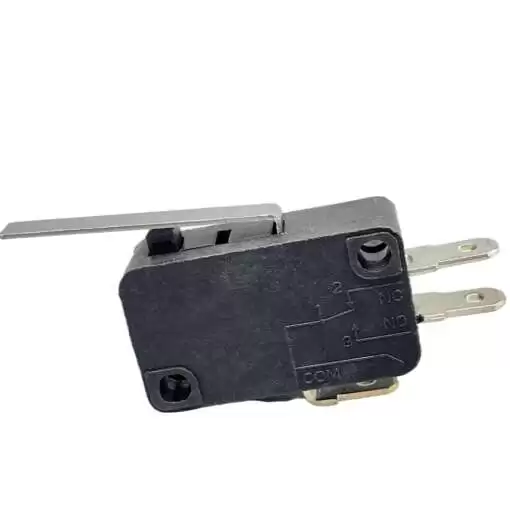

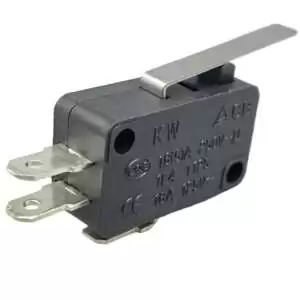

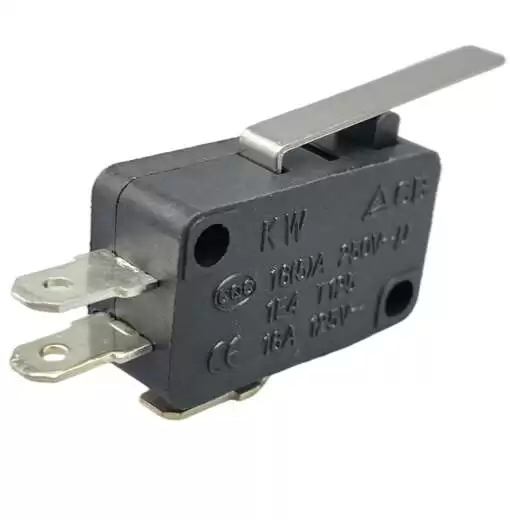

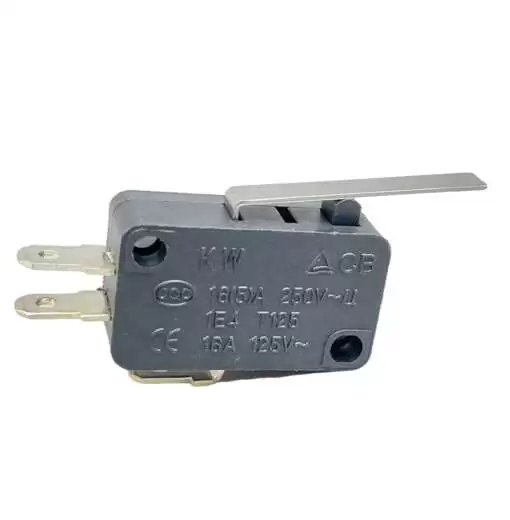

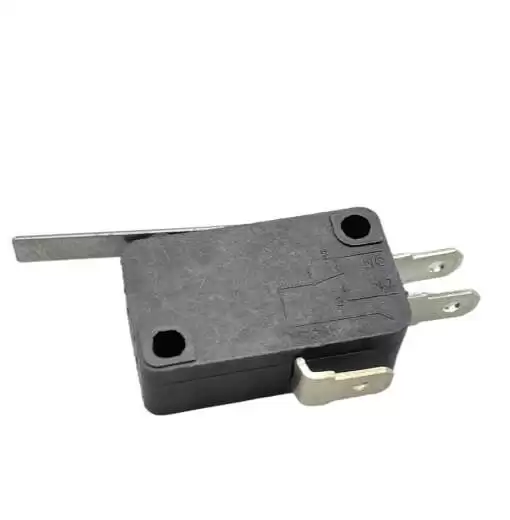

Description: Micro Limit Switch 16A 250VAC SPDT 3 Pin 27mm Long Straight Hinge Lever Switch
27mm HANDLE Limit Switch 16A 250VAC SPDT 3 Pin 27mm Long Straight Hinge Lever Arm Switches Limit Switch Momentary Push Switch For 3D CNC Machine Electronic Project DIY
Micro switch micro switch 16Amp 250v adopts the high quality for injection molding, the shell is high strength and good heat resistance. The die structures are special design, all action positions are high accuracy. The switch button push sounds silvery, feel perfect and good rhythm. Our switches are fast action, long life, high reliability, stability and good appearance.
Specifications:
- Actuator Type: Long Straight Hinge Lever
- Terminals: 3
- Spring Materials: Tungsten steel
- Rating:16A, 250VAC
- Operating temperature: -25 to + 80C
- Contact configuration: SPDT

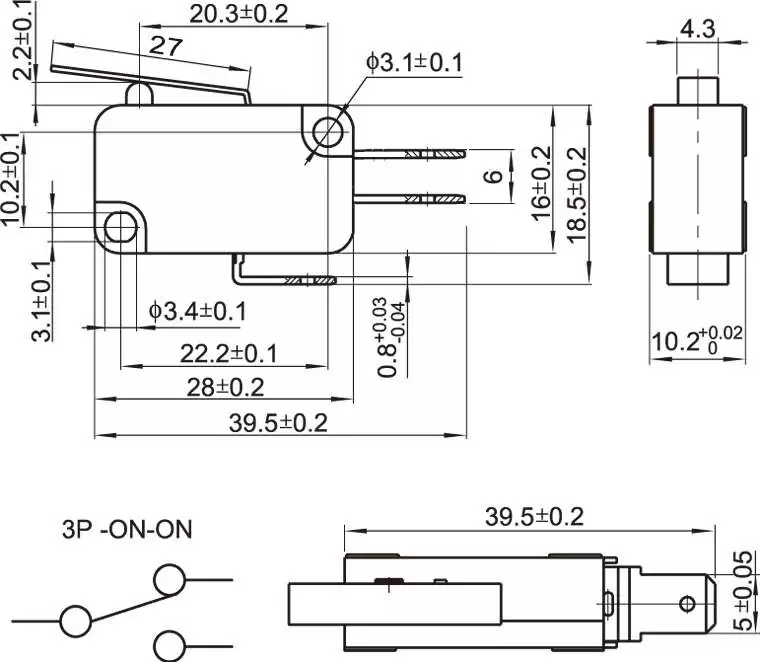

- Switch Body Size: 28x10x16mm (Approx.)
- Fixing Holes Dia: 3.5mm
- Button Height: 3mm
- Long Straight Hinge: 27mm
Application:
Our Micro switch micro switch 16a 250v are widely used for microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier, water heater, electric radiator, electric drill, joystick, TV game, time recorder, solder gun, mixer, food processor, juice maker, alarm, mixer, shredder machine etc.
