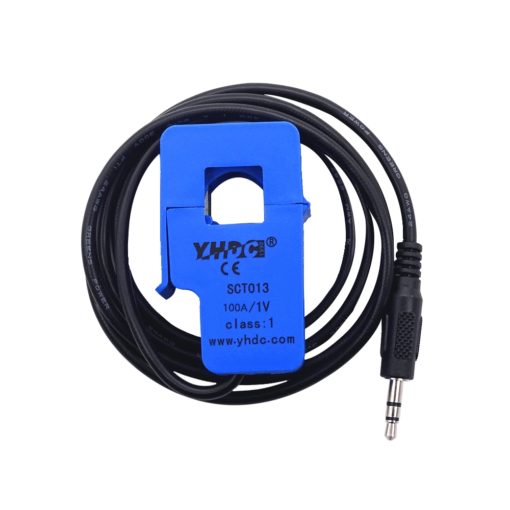

Split-Core Current Transformer SCT-013 100A/1V

MODEL： SCT013

The opening size is 13mm*13mm, the lead wire is 1 meter, the standard Φ3.5 three-core plug output and the current and voltage are two kinds of output. (Patent No. ZL 2015 3 0060067. X)

Technical Features:

• Hanging installation, lead output
• Standard: GB1208-2006
• Working temperature: -25℃～+60℃
• Storage temperature: -30℃～+90℃
• Working voltage: ≤720V
• Frequency range: 50Hz-1KHz
• Dielectric strength: 3.5KV 50Hz 1min

SCT013 Datasheet
