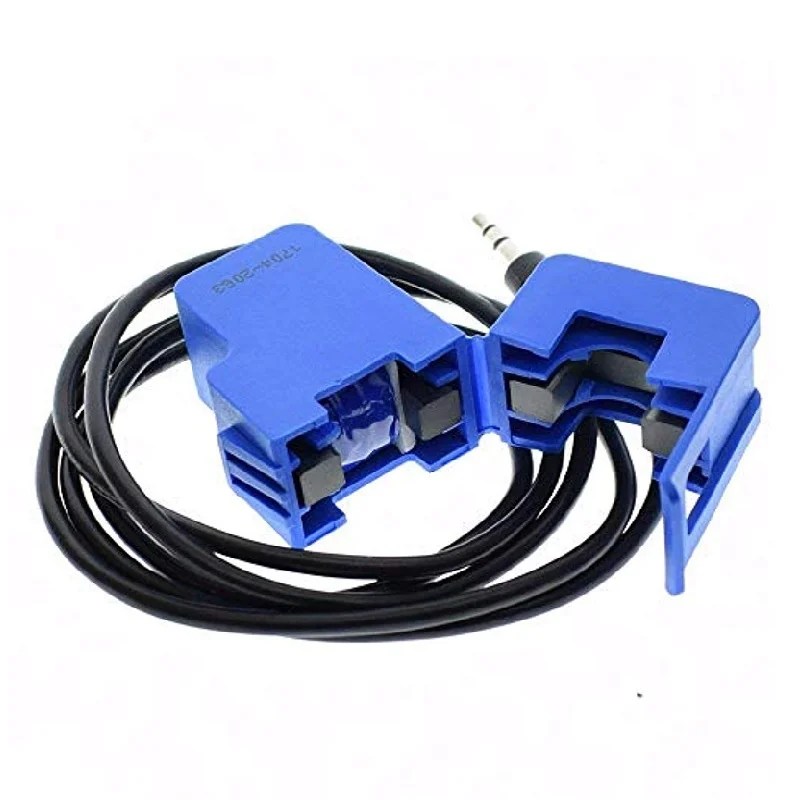

Split-core Current Transformer SCT-013 100A/50mA

MODEL：SCT013

The opening size is 13mm*13mm, the lead wire is 1 meter, the standard Φ3.5 three-core plug output, the current and voltage two kinds of output. (Patent No. ZL 2015 3 0060067.X)

TECHNICAL FEATURES:

Hanging installation, lead output

Standard: GB1208-2006

Working temperature: -25℃～+60℃

Storage temperature: -30℃～+90℃

Working voltage: ≤720V

Frequency range: 50Hz-1KHz

Dielectric strength: 3.5KV 50Hz 1min

Specification:

SCT013 Datasheet
