ST-LINK V2 Emulator and Debugger/Programmer for STM8 and STM32

Original price was: 220.00 EGP.Current price is: 150.00 EGP.

Buy Now
Availability: In Stock
SKU:300000009211
ST-LINK V2 is a USB In-Circuit Programmer and Debugger for the STM8 and STM32 microcontroller families.

The ST-LINK/V2 is an in-circuit debugger and programmer for the STM8 and STM32 microcontrollers. The single-wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board. In addition to providing the same functionalities as the ST-LINK/V2, the ST-LINK/V2-ISOL features digital isolation between the PC and the target application board. It also withstands voltages of up to 1000 V

STM8 applications use the USB full-speed interface to communicate with the ST Visual Develop (STVD-STM8) or ST Visual Programmer (STVP-STM8) software, or with integrated development environments from third-parties.
STM32 applications use the USB full-speed interface to communicate with the STM32CubeIDE software tool or with integrated development environments from third-parties.


Features:
  • Supporting the full range of STM32 SWD debugging interface
  • Supporting the full range of STM8 SWIM download debugging (common development environments such as IAR
  • The wiring is very simple because the interface definition is marked directly on the aluminum housing protects
  • Internal board of this programmer is with 500MA self-recovery fuse
  • It’s convenient and practical, fast speed and stable
  • The interface easy to use simple horns seat pitch of 2.54
  • Flexible wiring
  • Supporting for automatic firmware upgrades
  • It can protect your computer motherboard
  • 5 V power supplied by a USB connector
  • USB 2.0 full-speed compatible interface

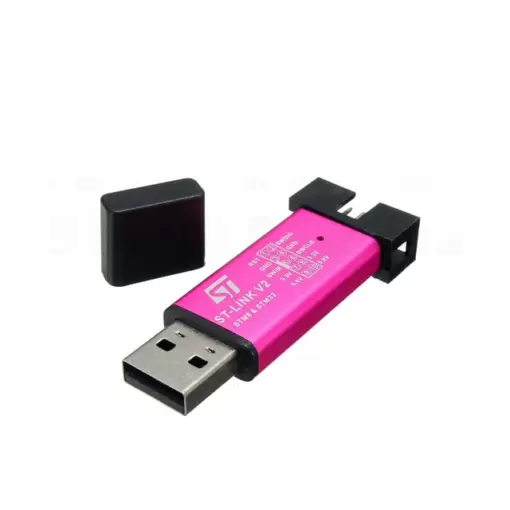

Note: These USB sticks come in a variety of different colors. We’re unable to control the color you receive.

The supported software versions are for example:
  • ST-LINK Utility 2.0 and above
  • STVD 4.2.1 and above
  • STVP 3.2.3 and above
  • IAR EWARM V6.20 and above
  • IAR EWSTM8 V1.30 and above
  • KEIL RVMDK V4.21 and above
Package included:

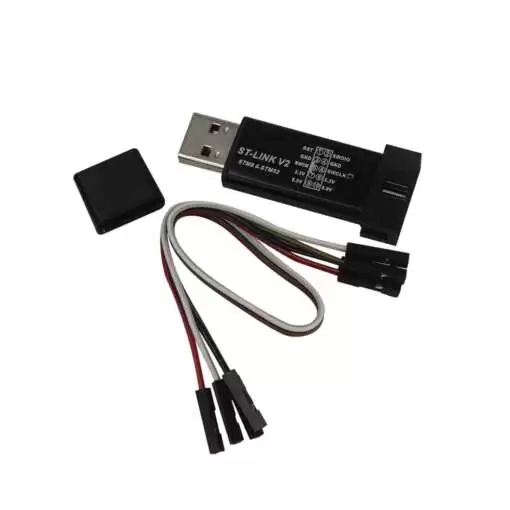

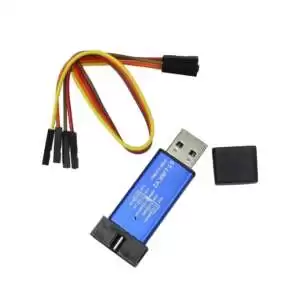

1 x ST-LINK V2 Emulator Downloader Programmer Support STM8 STM32
1 x DuPont line
