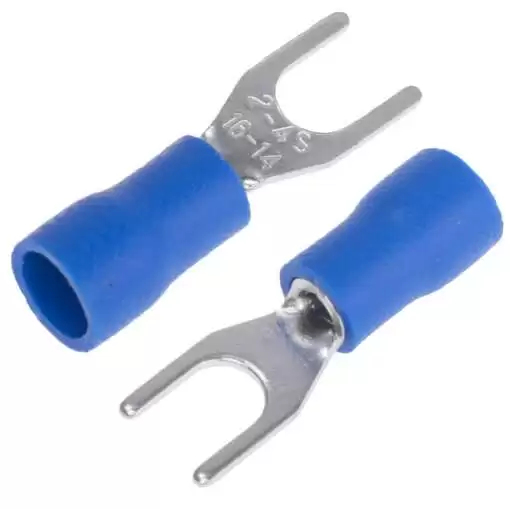

SVS2-4 Insulated Fork Terminal (10 Pcs)

The SVS2-4 insulated fork terminal is designed for securely connecting 16-14 AWG (1.5-2.5 mm²) wires to 4 mm diameter screw terminals. Its fork (spade) shape allows easy installation and removal without fully unscrewing the terminal, making it ideal for applications requiring frequent maintenance. The insulation enhances safety by preventing accidental contact and short circuits, ensuring a reliable and durable electrical connection.

Features:

• The fork design allows easy connection without removing the entire screw.
• Insulated cover prevents accidental electrical contact and short circuits.
• Made from high-quality tin-plated copper for excellent conductivity and corrosion resistance.
• Provides a long-lasting and vibration-resistant connection.
• Red insulation indicates compatibility with 16-14 AWG wires.
• Suitable for automotive, industrial, and household electrical systems.
• Performs well in environments with high temperatures and mechanical stress.

Specifications:

• Terminal Type: Insulated Fork Terminal
• Model NO: SVS2-4
• Color: BLUE
• Wire Compatibility: 16-14 AWG (1.5-2.5 mm²)
• Fork Opening (Stud Size): 4 mm
• Insulation Material: PVC/Nylon
• Conductor Material: Tin-plated copper
• Voltage (Max.): 600V
• Current(Max.):  10A
• Temperature Rating: 75°C to 105°C
• Quantity: 10 pieces per package

Dimensions:

• L: 21.4mm
• DΦ: 4.8 mm
• B: 6.4mm
• d2: 4.1mm
• H: 10.5mm

Applications:

• Automotive Wiring.
• Industrial Equipment.
• Household Electrical Systems.
• Marine Applications.
• Renewable Energy Installations.
• HVAC Systems.
• Audio and Lighting Systems.

Package Contents:

1X SVS2-4 Insulated Fork Terminal (10 pieces).
