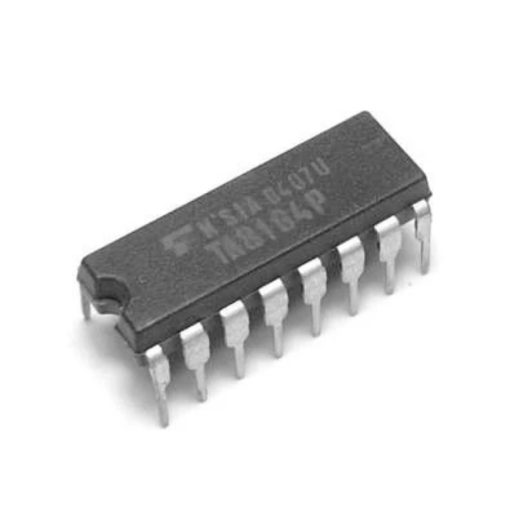

TA8164P AM/FM Monaural Radio Tuner PDIP-16
The TA8164P is a 3V monaural radio tuner (FM F / E + AM / FM IF) integrated circuit designed for AM and FM reception in compact, battery-powered radio systems. It integrates the necessary RF, IF, and detection stages for both AM and FM signals, enabling simple and efficient design of monaural radio receivers.
This device is suitable for use in portable radios, audio equipment, and other consumer electronics requiring AM/FM tuning with minimal external components.
Features
- AM/FM monaural radio tuner IC.
- Designed for low-voltage operation (≈1.8–7V).
- Integrated RF and IF stages for simplified design.
- Switch over between AM / FM mode is possible with one−wake switch.
- Common audio output for AM/FM.

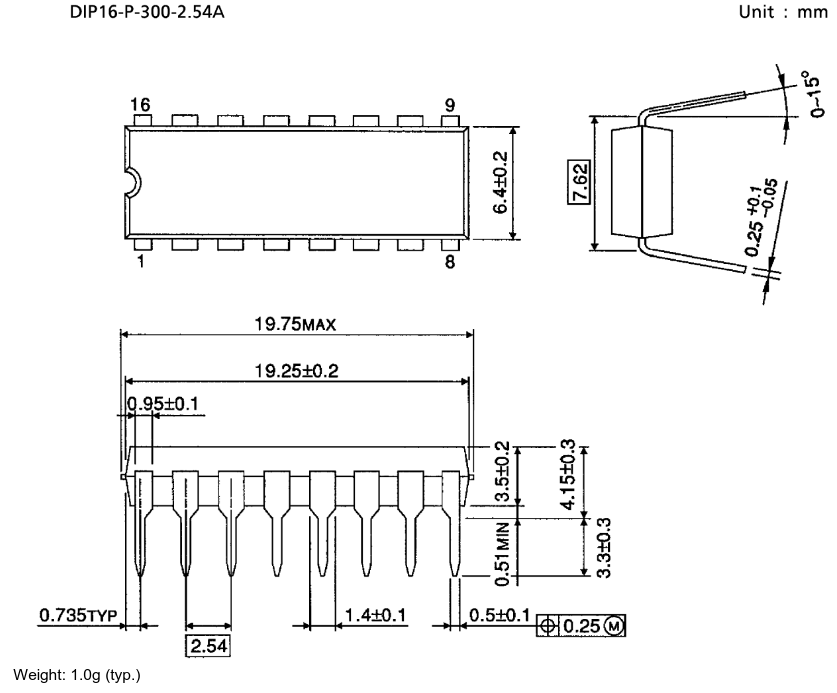

- PDIP-16 through-hole package for easy prototyping.
Specifications
Absolute Maximum Ratings (Ta = 25°C)
| Characteristic | Symbol | Rating | Unit |
|---|---|---|---|
| Supply voltage | VCC | 8 | V |
| Power dissipation | PD (Note) | 750 | mW |
| Operating temperature | Topr | -25 ~ 75 | °C |
| Storage temperature | Tstg | -55 ~ 150 | °C |
(Note) Derated above Ta = 25°C in the proportion of 6mW / °C.
Applications
- Portable AM/FM radios.
- Battery-powered audio receivers.
- Consumer electronics with radio functionality.
- Audio input modules requiring radio tuning.
Documents
| Datasheet | TA8164P |
| CAD Files | Download |
