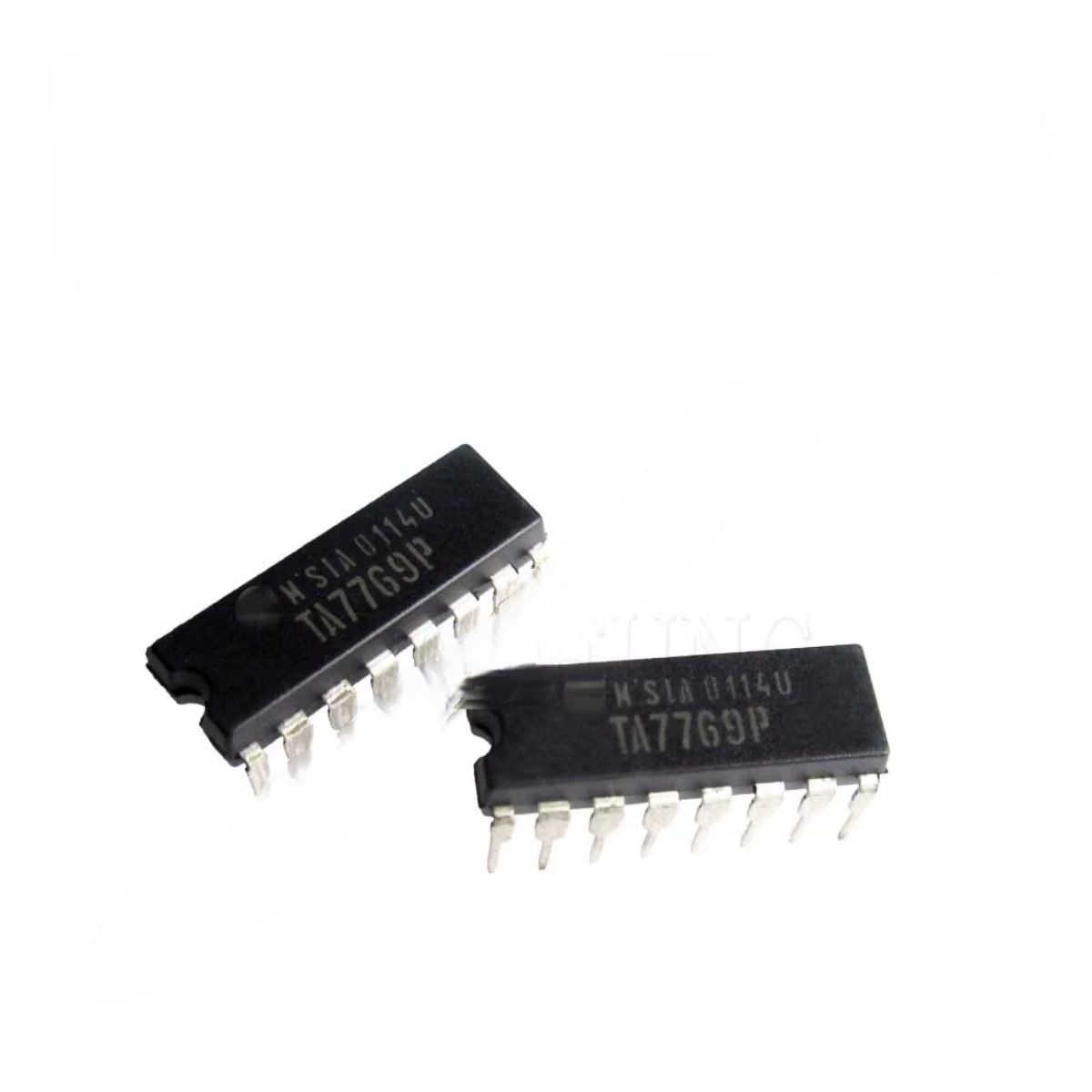

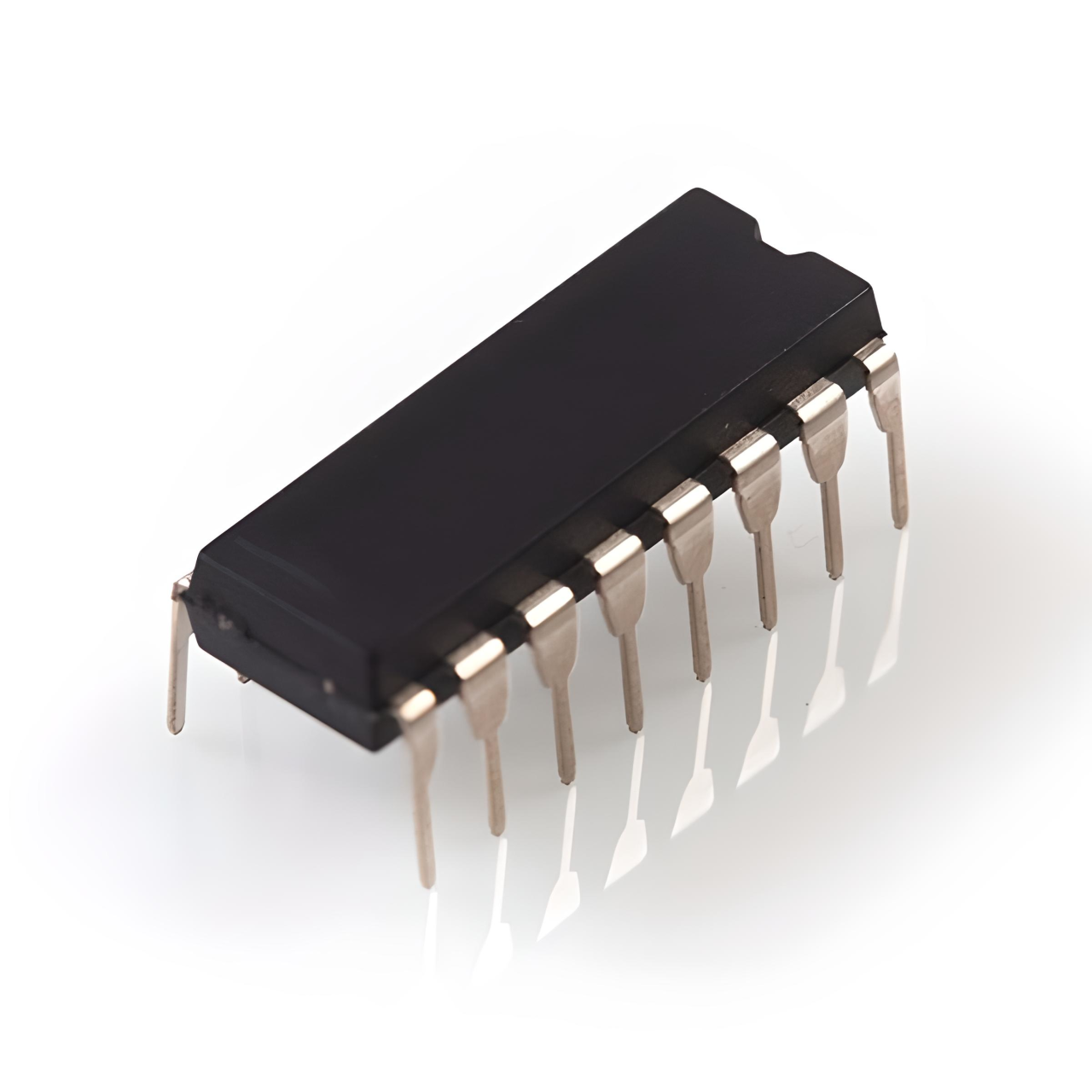

TA7769P Stereo Power Amplifier IC 14V DIP-16
The TA7769P is designed for high-quality audio amplification in compact sound systems. It delivers reliable audio output with low distortion.
30.00 EGP
In stockSKU 3496300107841
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
TA7769P Stereo Power Amplifier IC 14V DIP-16
The TA7769P is a compact dual audio power amplifier integrating two matched channels in a single IC.
Optimized for portable audio applications, it provides reliable audio output with low distortion and low turn-on pop noise.
With a wide operating supply range and modest quiescent current, the TA7769P is suitable for battery-powered equipment such as portable radios, tape recorders, small speaker systems and other consumer audio products.
Features:
- Dual audio power amplifier for portable radio / cassette applications (stereo).
- Built-in thermal shut-down protection (T.S.D.) to protect the IC from overheating.
- Soft-clip / small pop noise at power-on designed to minimize power-on pop noises.
- Wide operating supply range (designed to operate from low voltages typical of portable equipment).
- Input stage with PNP differential pair + emitter follower allowing DC referencing of the input to ground (eliminates mandatory input coupling capacitor in many cases).
- Fixed high voltage gain inside the IC (nominal 56.5 dB) gain may be reduced externally by adding a feedback resistor.
- Anti-oscillation recommendations provided recommended use of polyester film capacitors for certain bypass/stability caps to avoid oscillation.

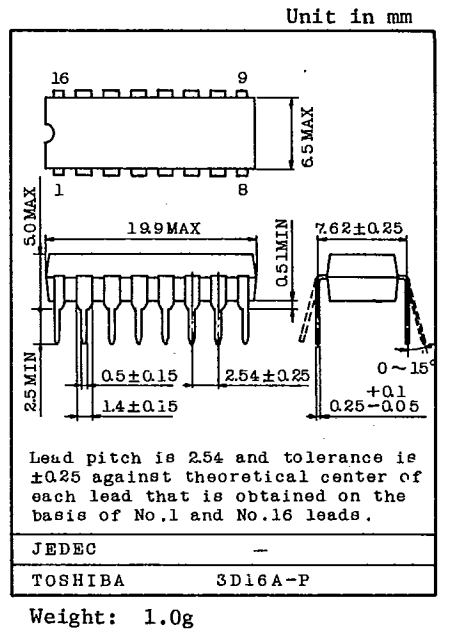

- Compact DIP-16 package (suitable for through-hole mounting in consumer portable electronics).
Specifications:
| Specification | Value |
|---|---|
| Product Type: | Stereo Audio Power Amplifier IC |
| Model: | TA7769P |
| Package: | DIP-16 |
| Supply Voltage (Operating): | 4.5V – 9V |
| Absolute Max Supply Voltage: | 14V |
| Output Power @ 6V / 4Ω: | 1.0W × 2 channels |
| Output Power @ 7.5V / 8Ω: | 0.96W × 2 channels |
| Output Power @ 6V / 8Ω: | 0.62W × 2 channels |
| Load Impedance: | 3Ω – 8Ω |
| Quiescent Current: | 30mA |
| Voltage Gain: | 45dB |
| Crosstalk: | −60dB |
| Total Harmonic Distortion: | 0.15% |
| Ripple Rejection: | −55dB |
| Input Resistance: | 30kΩ |
| Operating Temperature: | −25°C to +75°C |
| Storage Temperature: | −55°C to +150°C |
| Maximum Power Dissipation: | 3.6W |
| Weight: | 1g |
| Protection: | Thermal Shut-Down (TSD) |
Pinout:
DC Voltage Of Each Terminal:
| TERMINAL No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC Voltage (V) | NC | 3.0 | 5.75 | 0 | 0 | 0.65 | 0.03 | 5.95 | 0 | 0.03 | 0.65 | 0 | 0 | 5.75 | 3.0 | 6.0 |
Applications:
- Portable radios and cassette tape recorders.
- Small stereo speaker systems and powered speakers.
- Battery-powered audio devices and portable amplifiers.
- DIY audio projects, instrument amplifiers, and multimedia speakers.
- Measures Against Oscillation.
- Adjustment of Voltage Gain.
- Input Stage.
Packages:
- 1x TA7769P Stereo Power Amplifier IC 14V DIP-16.
