TDA7388 (4CH) Amplifier Power Bare Board 41W

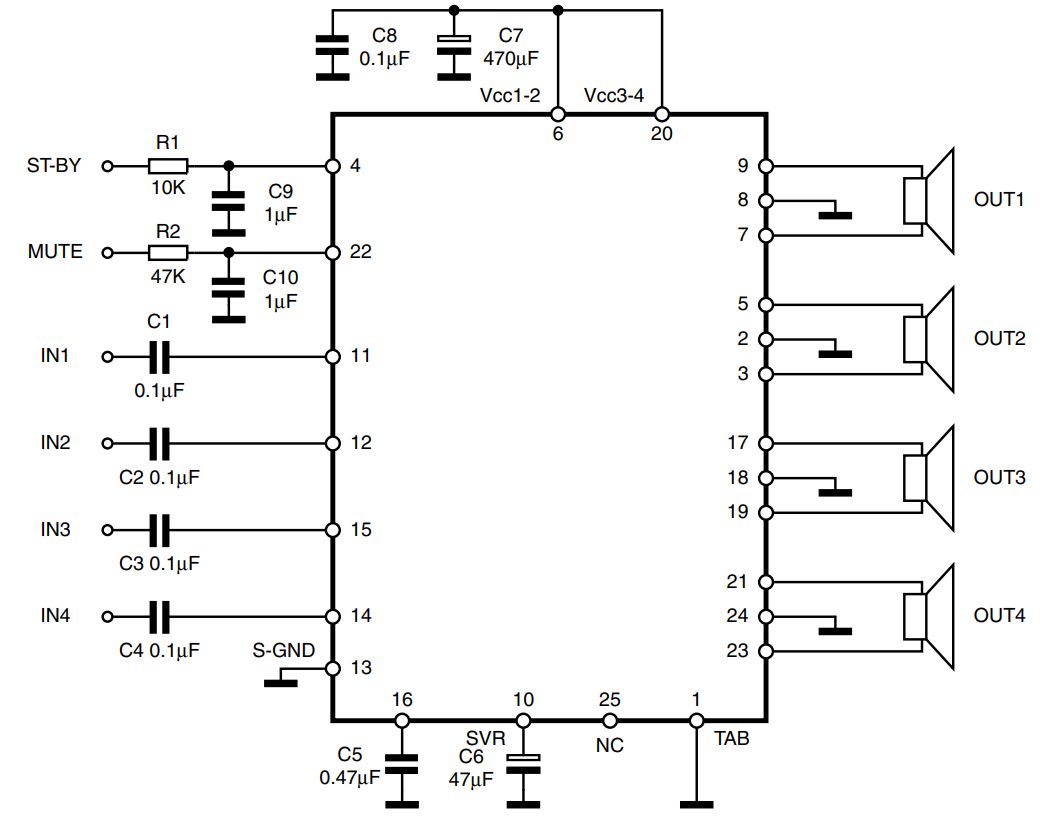

The TDA7388 is a new technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for high-end car radio applications. Thanks to the fully complementary PNP/NPN output configuration the TDA7388 allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced component count allows very compact sets.
Features:
- Four-channel input and output.
- Output 4x41W at 4ohm.
- Voltage supply 14.4V.
- Low distortion
- Low output noise
- Standby function
- Mute function
- Automute at min. supply voltage detection
- St-By OUT Threshold Voltage -(Amp: ON) 3.5 V.
- St-By IN Threshold Voltage- (Amp: OFF) 1.5 V.
- Mute OUT Threshold Voltage -(Amp: Play) 3.5 V.
- Mute IN Threshold Voltage- (Amp: Mute) 1.5 V
Note: Image can vary in terms of design, printing etc.
