TEA2025 Key Features
- Dual Or Bridge Connection Modes
- Few External Components
- Supply Voltage Down To 3V
- High Channel Separation
- Very Low Switch ON/OFF Noise

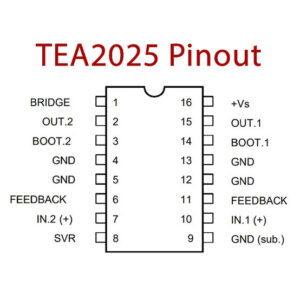

TEA2025 Pinout
TEA2025 Pin Configuration
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | BRIDGE | Bridge Pin |
| 2 | OUT 2 | Output Pin 2 |
| 3 | BOOT 2 | Boot Pin 2 |
| 4 | GND | Ground Pin |
| 5 | GND | Ground Pin |
| 6 | FEEDBACK | Feedback Pin |
| 7 | 1N 2(+) | Positive Input Pin 2 |
| 8 | SVR | Common Voltage Rejection Ratio |
| 9 | GND SUB | Ground |
| 10 | IN 1+ | Positive Input Pin 1 |
| 11 | FEEDBACK | Feedback Pin |
| 12 | GND | Ground Pin |
| 13 | GND | Ground Pin |
| 14 | BOOT 1 | Boot Pin 1 |
| 15 | OUT 1 | Output Pin 1 |
| 16 | +Vs | Positive Supply Voltage |
Product Attributes
| Type | Description |
| Category | Integrated Circuits (ICs)
Linear Amplifiers Audio Amplifiers |
| Type | Class AB |
| Output Type | 1-Channel (Mono) or 2-Channel (Stereo) |
| Voltage – Supply | 3V ~ 12V |
| Features | Depop, Thermal Protection |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP |
| Base Product Number | TEA2025 |
Application
- Dual or bridge power audio amplifier
- Portable radio-cassette players.
TEA2025 Datasheet
