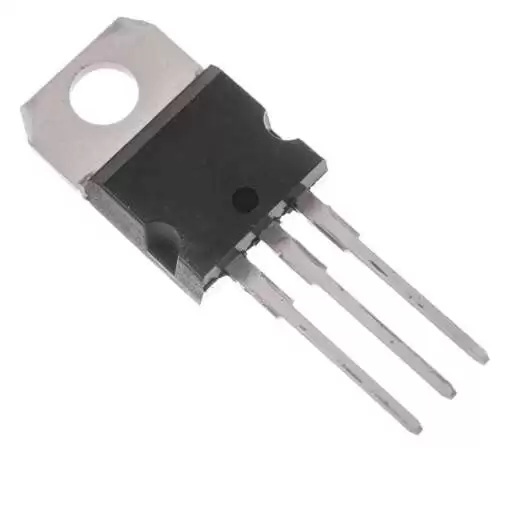

TIP127 is a three-layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector-emitter voltage VCE.
Features:-
- Low saturation voltage
- Simple drive requirements
- High safe operating area
- For low-distortion complementary designs
- Easy to carry and handle
Specifications:
- Series: TIP127
- Product Type: Darlington Transistors
- Transistor Polarity: PNP
- Collector-Emitter Voltage VCEO Max: 100V
- Emitter- Base Voltage VEBO: 5V
- Collector- Base Voltage VCBO: 100V
- Maximum DC Collector Current: 5A
- Continuous Base Current (Ib): 0.12A
- Maximum Collector Cut-off Current: 200uA
- Maximum Operating Temperature: +150°C
- DC Collector/Base Gain hFE Min: 1000
- Mounting Style: Through Hole
- Package/Case: TO-220-3
