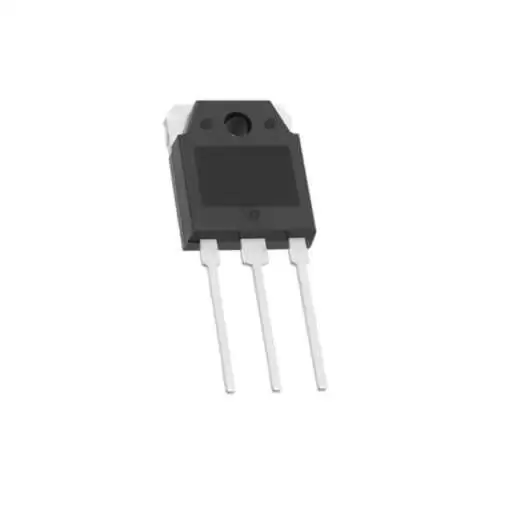

Tip36C – 25A 100V PNP Bipolar Power Transistor

20.00 EGP

Buy Now
Availability: In Stock
SKU:9575834804014

Description

  • DC Current Gain-
    : hFE= 25(Min)@IC = -1.5A ·
  • Collector-Emitter Sustaining Voltage-
    : VCEO(SUS)= -100V(Min) ·
  • Complement to Type TIP35C ·Current Gain-Bandwidth Product-
    : fT= 3.0MHz(Min)@IC= -1.0A

Applications

  • Designed for use in general purpose power amplifier and switching applications.

Specifications

AttributeValue
CategoryTriode/MOS Tube/Transistor/Bipolar Transistors – BJT
DatasheetTIP36C
Collector Cut-Off Current (Icbo)700uA
Collector-Emitter Breakdown Voltage (Vceo)100V
Power Dissipation (Pd)125W
DC Current Gain (hFE@Ic,Vce)15@15A,4V
Collector Current (Ic)25A
Transition Frequency (fT)3MHz
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib)4V@25A,5A
Transistor TypePNP
Operating Temperature+150℃@(Tj)
