Simple charger for 1-purpose lithium-polymer batteries with a nominal voltage of 3.7V. The system is powered via a miniUSB connector or by wires

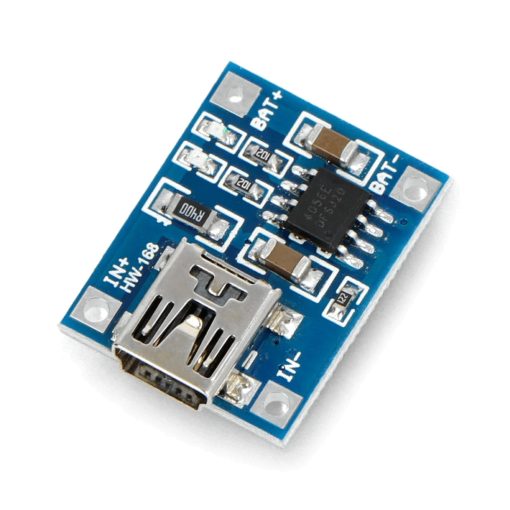

Product Description:Li-Pol TP4056 single cell 1S 3.7 V miniUSB charger
Simple charger for 1-purpose lithium-polymer batteries with a nominal voltage of 3.7V. Maximum charging current is 1000 mA. The system is powered via a miniUSB connector or via wires connected to IN+ and IN- inputs.
Connection
The system is powered viathe miniUSB connectoror via wires connected to the IN+ and IN-inputs. The Li-Pol battery should be connected to the outputs marked BAT+and BAT-.
Charger specifications
- Layout: TP4056
- Power supply voltage: (miniUSB or IN connectors) from 4.5 V to 5.5 V
- Charging voltage: 4,2 V
- Maximum charging current: 1 A
- Socket: miniUSB(miniUSB cable can be purchased separately)
- Two signal lights
- Red: charging
- Green: full charge
- Module dimensions 22.5 x 17.5 mm
| Attention!
Before connecting the battery, check the polarity of the plug. |
