TRIAC 2P4M TO-126

8.00 EGP

Buy Now
Availability: In Stock
SKU:4181728590588

The 2P4M to 2P6M are P-gate all diffused plastic molded type SCR granted average on-state current 2 Amps (Tc 77 with rated voltages up to 600 volts.

2P4M is a solid state semiconductor device called Thyristor or SCR (Silicon Controlled Rectifier). The device is designed to have highly sensitive trigger levels and is suitable for applications where available gate currents are limited.

Pin Configuration

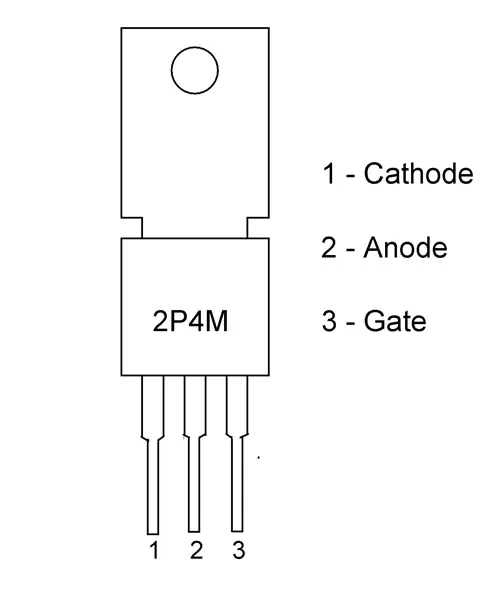

2P4M is a three pin device as shown in above 2P4M pin diagram and we will describe each of these pins below.

Pin Name Function
1 Cathode Connected to neutral
2 Anode Connected to Load
3 Gate Low voltage trigger pulse is given to this pin to turning ON the SCR

Specification:-

Symbol Parameter Ratings Units
VRSM Non-Repetitive Peak Reverse Voltage 500 V
VDSM Non-Repetitive Peak Off-state Voltage 500 V
VRRM Repetitive Peak Reverse Voltage 400 V
VDRM Repetitive Peak Off-state Voltage 400 V
IT(AV) On-state Current 2(Tc=77 °C Single Phase (1/2 wave) A
ITSM Surge Non-Repetitive On-state Current 20 A
PGM Peak Gate Power Dissipation 0.5 (f ≥ 50 Hz, Duty≤ 10%) W
PG(IAV) Average Gate Power Dissipation 0.1 W
IFGM Peak Gate Forward Current 0.2 (f ≥ 50 Hz, Duty≤ 10%) A
VRGM Peak Gate Reverse Voltage 6 V
Tj Junction Temperature -40 to 125  °C
Tstg Storage Temperature -50 to 150  °C

Features:-

  • Easy installation by its miniature size and thin electrode leads
  • Less holding Current distribution provides free application design
  • Low cost because Of mass-production.

Applications:-

  • Electric blanket, Electronic jar, Various temperature con
  • Electric sewing machine, Speed control Of miniature type motor
  • Light display equipment, Lamp dimmer such as a display for entertainment
  • Automatic gas lighter, Battery charger
  • Solid State static switches etc.
