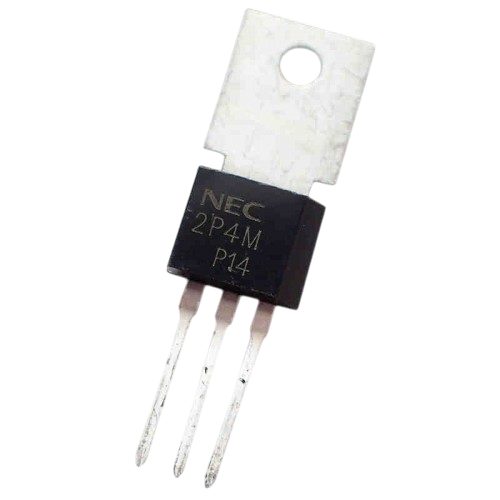

NEC 2P4M TRIAC 400V 2A TO-126
The NEC 2P4M SCR Thyristor 400V 2A TO-126 is a passivated, plastic-mold SCR featuring low gate trigger current and compact TO-126 packaging. Rated for 2 A RMS continuous current and 400 V repetitive blocking, it’s optimized for ignition systems, motor control in small appliances, and over-voltage protection applications where gate current is limited.
Features
- Low trigger current SCR (gate sensitive), suitable for limited gate drive scenarios.
- Repetitive peak reverse/off-state voltage: 400 V.
- Continuous on-state RMS current: 2 A.
- Surge capability: 20–25 A for short pulses.
- Compact TO-126 plastic package for efficient PCB layout and heatsinking.
- Glass-passivated junction and P-gate design for reliable triggering and robust performance.
Specification
ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)
| Characteristic | Symbol | Value | Unit | Note |
|---|---|---|---|---|
| Non-Repetitive Peak Reverse Voltage* | VRSM | 500 | V | RGK = 1 kΩ |
| Non-Repetitive Peak Off-state Voltage* | VDSM | 500 | V | RGK = 1 kΩ |
| Repetitive Peak Reverse Voltage* | VRRM | 400 | V | RGK = 1 kΩ |
| Repetitive Peak Off-state Voltage* | VDRM | 400 | V | RGK = 1 kΩ |
| On-state current | IT(AV) | 2 (TC=77 °C, θ=180° single phase (1/2 wave)) | A | See Fig.3, Fig.4 in datasheet |
| Surge Non-Repetitive On-state Current | ITSM | 20 | A | See Fig.10 in datasheet |
| Peak Gate Power Dissipation | PGM | 0.5 (f ≥ 50 Hz, Duty ≤ 10%) | W | |
| Average Gate Power Dissipation | PG(AV) | 0.1 | W | |
| Peak Gate Forward Current | IFGM | 0.2 (f ≥ 50 Hz, Duty ≤ 10%) | A | |
| Peak Gate Reverse Voltage | VRGM | 6 | V | |
| Junction Temperature | Tj | -40 to +125 | °C | |
| Storage Temperature | Tstg | -55 to +150 | °C | |
| Weight | — | 1.4 | g |
TC : Case Temperature is measured at 1.5mm from the neck of Tablet.

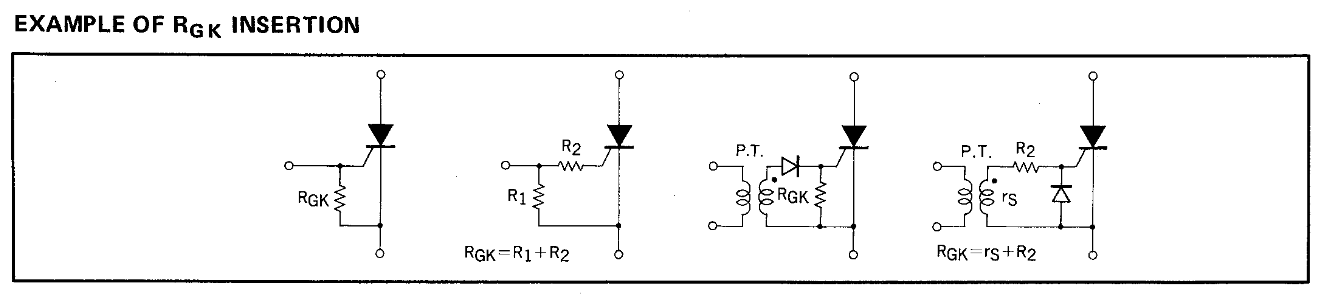

* NOTE: Insert a resistance less than 1 kΩ between gate and cathode, because the items indicated are guaranteed by connecting short resistance between gate and cathode (RGK = 1 kΩ).

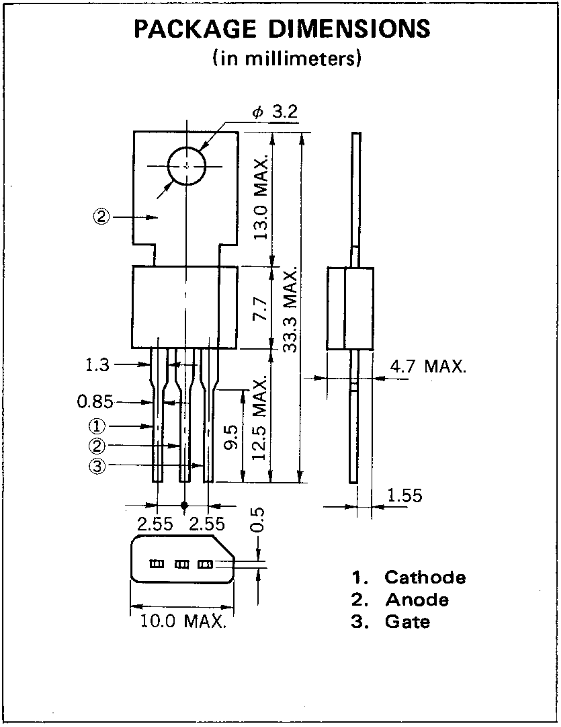

Dimensions and PINOUT
| Pin | Name | Function |
| 1 | Cathode | Connected to neutral |
| 2 | Anode | Connected to Load |
| 3 | Gate | Low voltage trigger pulse is given to this pin to turning ON the SCR |
Applications
- Electric blanket, Electronic jar, Various temperature control.
- Electric sewing machine, Speed control of miniature type motor.
- Light display equipment, Lamp dimmer such as a display for entertainment.
- Automatic gas lighter, Battery charger.
- Solid State static switches.
