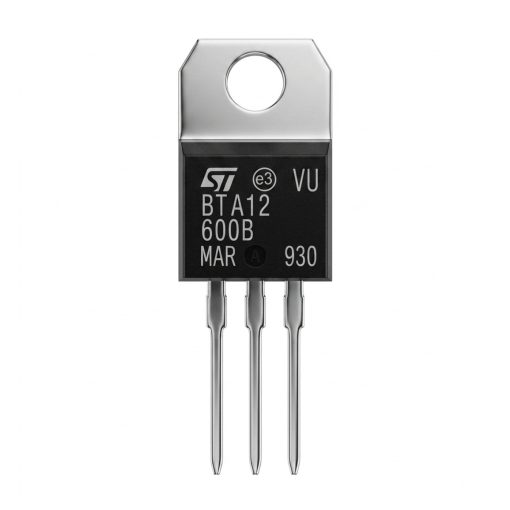

BTA12-600B Triac 600V 12A TO-220AB
The BTA12-600B is a 12A medium current, 600V standard 4-quadrant Triac housed in an insulated TO-220AB package. Suitable for general-purpose mains AC power switching, it features an internal ceramic pad that provides an insulated tab rated at 2500 VRMS complying with UL standards. This component offers low thermal resistance using clip bonding technology and complies with UL1557 certification and RoHS environmental standards.
Features
- RMS On-State Current: 12 A
- Peak Repetitive Off-State Voltage: 600 V
- Trigger Type / Quadrants: Standard 4-quadrant (4Q)
- Low Thermal Resistance: Clip bonding and insulation ceramic pad construction
Specifications
| Parameter | Symbol | Specification / Value |
|---|---|---|
| RMS On-State Current (full sine wave) | IT(RMS) | 12 A (at Tc = 90 °C) |
| Non-Repetitive Surge Peak On-State Current | ITSM | 120 A (50 Hz, t = 20 ms) / 126 A (60 Hz, tp = 16.7 ms) |
| Gate Trigger Current (Max) | IGT | 50 mA (Quadrants I–II–III), 100 mA (Quadrant IV) |
| Gate Trigger Voltage (Max) | VGT | 1.3 V (All Quadrants) |
| Holding Current (Max) | IH | 50 mA (IT = 500 mA) |
| Latching Current (Max) | IL | 50 mA (Quadrants I–III–IV), 100 mA (Quadrant II) |
| Peak On-State Voltage Drop (Max) | VTM | 1.55 V (at ITM = 17 A, tp = 380 µs, Tj = 25 °C) |
| Threshold On-State Voltage (Max) | VTO | 0.85 V (Tj = 125 °C) |
| Dynamic Resistance (Max) | RD | 35 mΩ (Tj = 125 °C) |
| Critical Rate of Rise of Off-State Voltage (Min) | dV/dt | 400 V/µs (VD = 67% VDRM, gate open, Tj = 125 °C) |
| Junction to Case Thermal Resistance (Max) | Rth(j-c) | 2.3 °C/W |
| Junction to Ambient Thermal Resistance (Typ) | Rth(j-a) | 60 °C/W |
| Operating Junction Temperature Range | Tj | -40 °C to +125 °C |
| Storage Junction Temperature Range | Tstg | -40 °C to +150 °C |
| Unit Weight | — | 1.9 g |
Applications
- ON/OFF Switching
- Heating Control
- Motor Control
- Phase Control Operations
Package Content
- 1 x BTA12-600B Triac 600V 12A TO-220AB
