BY359-1500 Damper Diode 1500V 10A TO-220-2
BY359-1500 is A high-voltage rectifier diode commonly used for power conversion, rectification, and protection in electronic circuits.
45.00 EGP
Buy NowBY359-1500 Damper Diode 1500V 10A TO-220-2
The BY359-1500 is a robust high-voltage rectifier diode designed for demanding power applications. With a voltage rating of up to 1500V and a current capacity of 10A, it is well-suited for use in power supplies, inverters, and high-voltage rectification circuits. Its through-hole TO-220-2 package allows for secure mounting and effective heat dissipation, making it reliable in high-power environments.
This diode is engineered for stable and efficient performance in circuits requiring high voltage blocking capability and reliable current handling. It is commonly used in industrial electronics, power regulation systems, and protection circuits. The sturdy construction and dependable characteristics make it a practical choice for both professional and advanced DIY electronic designs.
Features:
- Low forward voltage drop.
- Fast reverse recovery with soft recovery characteristic.
- High thermal cycling performance.
- Low thermal resistance for efficient cooling.
- Glass‑passivated die for high reliability.
- Suitable for high‑frequency operation (16–70 kHz).
- Fully leaded (through‑hole) TO‑220AC package.
Specifications:
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1500 V |
| Crest Working Reverse Voltage (VRWM) | 1300 V |
| Peak Non‑repetitive Reverse Voltage (VRSM) | 1500 V |
| RMS Forward Current (IF(RMS)) | 15.7 A |
| Peak Repetitive Forward Current (IFRM) | 15.7 A |
| Peak Non‑repetitive Forward Current (IFSM) | 60 A (10 ms) / 66 A (8.3 ms) |
| Forward Voltage (VF at 20A, 25°C) | ≤ 1.8 V (1.3 V) |
| Reverse Current (IR at 1300V, 25°C) | ≤ 1.5 μA (1.0 μA) |
| Reverse Recovery Time (trr) | ≤ 600 ns (470 ns) |
| Reverse Recovery Charge (Qs) | ≤ 2.0 μC (1.6 μC) |
| Peak Forward Recovery Voltage (Vtr) | ≤ 17 V (11 V) |
| Junction Temperature (Tj) | -40 °C to +150 °C |
| Storage Temperature (Tstg) | -40 °C to +150 °C |
| Thermal Resistance (junction to mounting base) | 2.0 K/W |
| Package | SOD59 (TO‑220AC) |

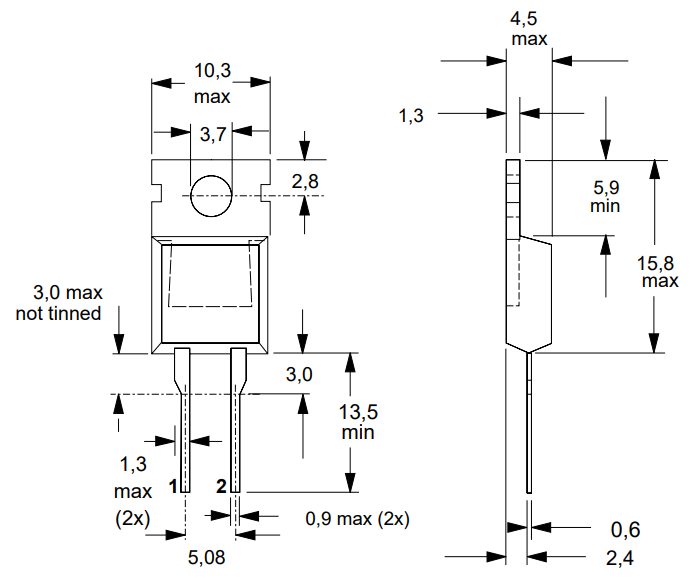

Pinout:
Applications:
- Damper diode in TV receivers (horizontal deflection circuits).
- PC monitors (CRT type).
- High‑voltage fast‑switching power supplies.
- Flyback converter rectification.
- Snubber and clamping circuits.
- Industrial high‑frequency rectifiers.
Packages:
- 1x BY359-1500 Damper Diode 1500V 10A TO-220-2.
