BTA12-800B Triac 800V 12A TO-220AB
The BTA12-800B Triac is a robust, insulated semiconductor device from STMicroelectronics, engineered for efficient AC power control in a variety of electronic systems. This Snubberless Triac features a three-quadrant operation with high commutation capability, making it particularly effective for handling inductive loads without the need for external snubber circuits. It supports both ON/OFF switching and phase control modes, allowing precise regulation of power delivery to loads such as heaters, motors, and lamps.
Features:
• High RMS on-state current capacity of 12 A for robust load switching.
• Repetitive peak off-state voltage rating up to 800 V for mains AC compatibility.
• Snubberless™ design with low thermal resistance and insulated ceramic tab.
• UL1557 certified insulated tab construction compliant with safety standards.
Specifications:

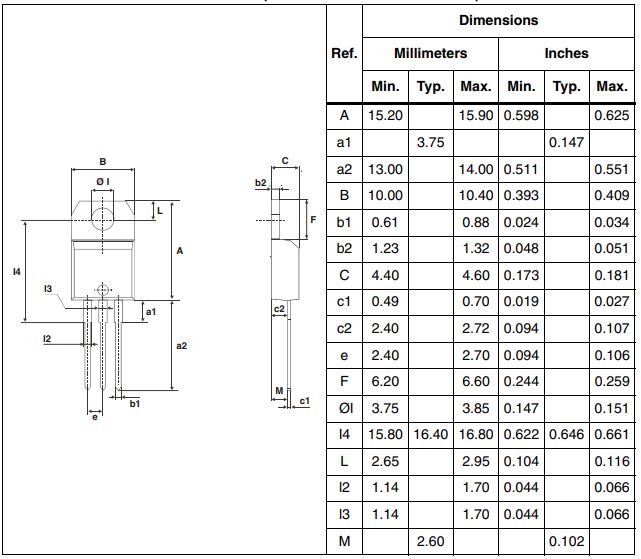

| Parameter | Value |
|---|---|
| Component Type | TRIAC (Bidirectional AC Switch) |
| RMS On-State Current (İ̇TRMS) | 12A |
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 800V |
| Non-Repetitive Surge Peak On-State Current (ITSM) | 120A (50 Hz, 20 ms) |
| Gate Trigger Voltage (VGT) Max | 1.3V |
| Gate Trigger Current (IGT) Max | 50mA |
| Holding Current (IH) Max | 50mA |
| Operating Junction Temperature Range (Tj) | -40°C to +125°C |
| Package Type | TO-220AB Insulated Tab |
| Mounting Style | Through-Hole |
Applications:
• AC switching for general purpose mains power control circuits.
• ON/OFF control in static relays and heating regulation systems.
• Phase control operation in light dimmers and lamp control.
• Motor speed control and induction motor starting circuits.
• Solid-state relay designs and household appliance control modules.
• Heating, ventilation and air-conditioning (HVAC) control units.
Package Include:
1x BTA12-800B Triac.
