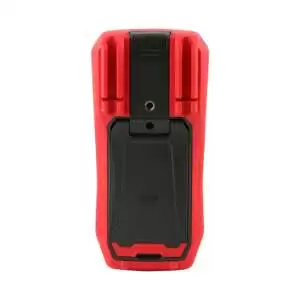

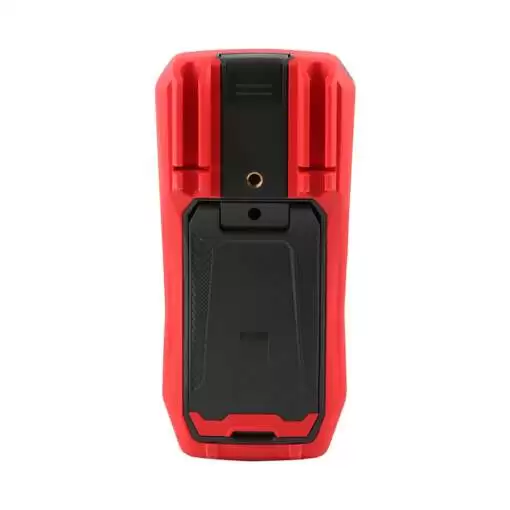

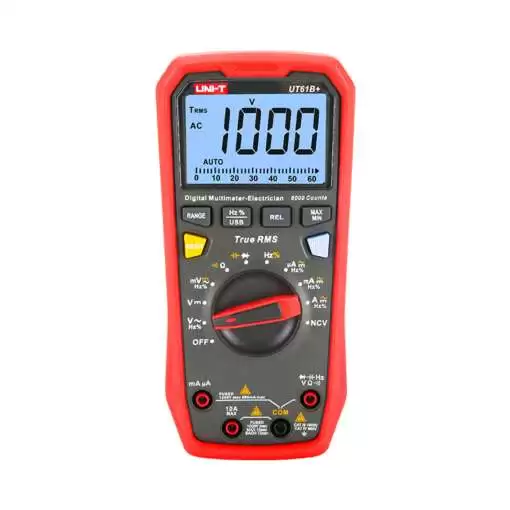

UT61B+ 1000V True RMS Digital Multimeter
UT61+ series are reliable true RMS digital multimeters with display counts of 6000 (UT61B+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarms, this series can provide warning especially when measuring high voltage/current.
Features of UT61B+ 1000V True RMS Digital Multimeters
- True RMS
- Data hold/backlight
- Max/Min/Relative mode
- USB communication
- Input protection
- Diode/continuity test
- NCV (audible/visual alarm)
Specifications of UT61B+ 1000V True RMS Digital Multimeters
| Specifications | Range | UT61B+ |
| AC voltage (V) | 1000V | ±(1%＋3) |
| DC voltage (V) | 1000V | ±(0.5%＋3) |
| AC current (A) | 10A | ±(1.2%＋5) |
| DC current (A) | 10A | ±(1%＋2) |
| Resistance (Ω) | 60MΩ | ±(1%＋2) |
| Capacitance (F) | 60mF | ±(3%＋5) |
| Frequency (Hz) | 10MHz | ±(0.1%＋4) |
| Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) |
| Display count | 6000 | |
| Bandwidth (Hz) | 40Hz~500Hz | |
| Analog bar | 31 | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 4 | |
| Product net weight | 350g | |
| Product size | 190mm x 90mm x 50mm | |
