TS-6029A Tactile Silent Push Switch SMD 12V 50mA 2 Pin 6x6x5mm
The TS-6029A Tactile Silent Push Switch SMD 12V 50mA 2 Pin 6x6x5mm is a compact surface-mount momentary switch designed for applications requiring quiet and smooth operation. Unlike standard tactile switches, this model features a silent mechanism that significantly reduces audible clicking, making it ideal for noise-sensitive environments.
Features:
- Silent operation with reduced click noise.
- Soft tactile feedback for smooth actuation.
- Compact 6x6mm SMD footprint.
- 2-pin configuration for simple circuit design.
- Normally open (momentary) operation.
- Standard rating 12VDC 50mA.
- Reliable mechanical performance.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | TS-6029A |
| Switch Type | Tactile Silent Push Button |
| Mounting Type | SMD (Surface Mount) |
| Number of Pins | 2 |
| Contact Type | Normally Open (NO) |
| Rated Voltage | 12VDC |
| Rated Current | 50mA |
| Contact Resistance | ≤100mΩ |
| Insulation Resistance | ≥100MΩ |
| Operating Force | ~180gf to300gf |
| Travel Distance | ~0.25mm |
| Mechanical Life | ≥100,000 cycles |
| Operating Temperature | -30°C to85°C |

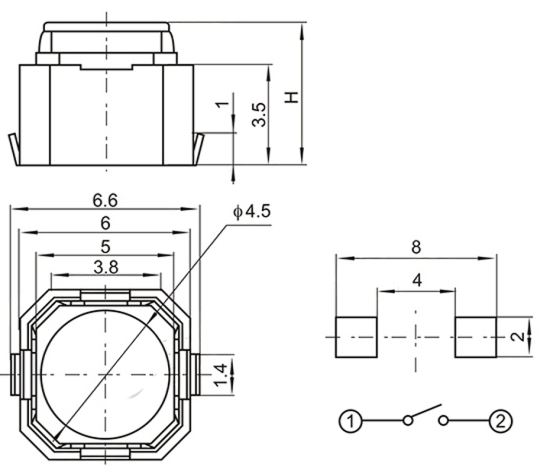

| Dimensions | 6mm × 6mm × 5mm |
Applications:
- Quiet control panels and interfaces.
- Consumer electronics and appliances.
- Embedded systems and development boards.
- Medical and office equipment.
- Smart home and IoT devices.
- Industrial control systems.
Package Include:
1x TS-6029A Tactile Silent Push Switch SMD 12V 50mA 2 Pin 6x6x5mm.
