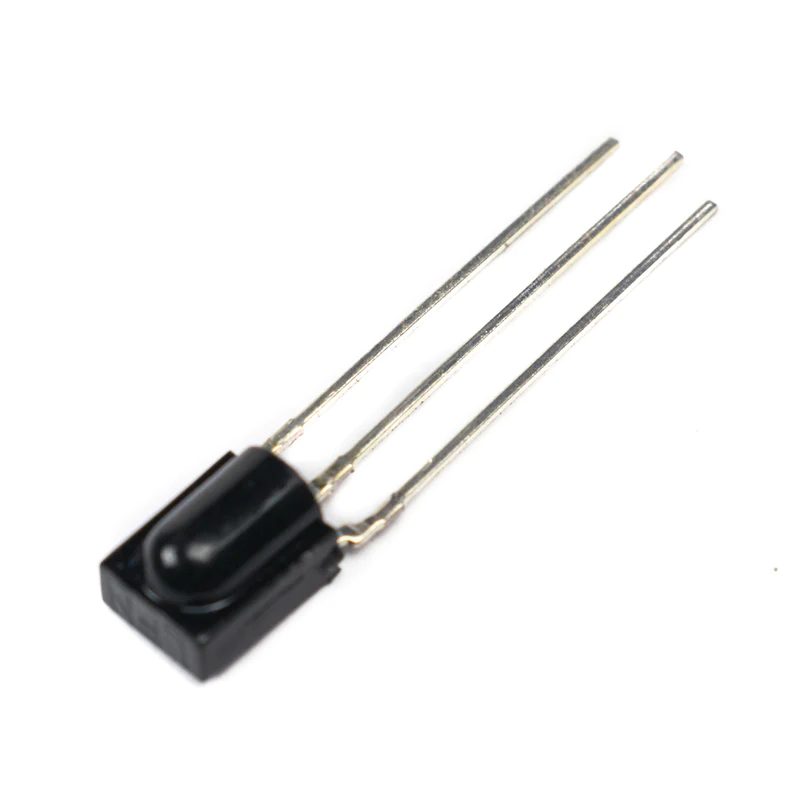

TSOP 1738 IR Receiver

A TSOP1738 is an IR receiver sensor that is used to receive an output signal from the IR based remote like a TV remote, AC remote, etc. It works on a frequency of 38Khz. It includes a photodetector and preamplifier inside it. It is a low power device that is highly immune to ambient light. When you press any button on an IR remote, the IR remote sends a signal associated with that button at 38KHZ. That is then received by the photodetector inside the sensor and the pre-amplified using a preamplifier. The pre-amplified signal can be further used by the microcontroller to decode the received data from the sensor.

Features

• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Improved shielding against electrical field disturbance
• TTL and CMOS compatibility
• Output active low
• Low power consumption
• High immunity against ambient light
• Continuous data transmission possible (up to 2400 bps)
• Suitable burst length ≥10 cycles/burst

Absolute Maximum Ratings :

Basic Characteristics :

Application Circuit :

TSOP-1738 Applications

• Receive IR signals
• Decode Remote signals
• Analyse, re-create or duplicate remote Signals
• Wireless control applications
• Receiver circuit for IR remote controls
• IR Remote tester circuits
