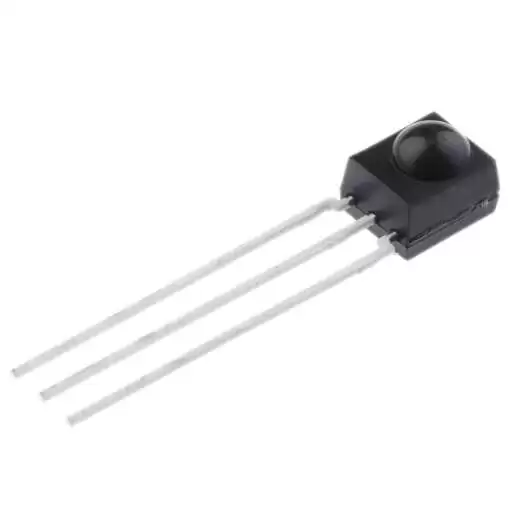

TSOP Sensor IR Receiver Plastic (SM3385)

TSOP Sensor is a miniaturized IR receiver module for infrared remote control systems. A PIN diode and a preamplifier are assembled on the lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding. This device is used for remote control.

Features:

• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Improved shielding against EMI
• Supply voltage ranges from 2.5V to 5.5V
• Transmission range of 45m
• Improved immunity against ambient light
• Operating temperature ranges from -25°C to 85°C

Applications:

• Receive IR signals
• Decode Remote signals
• Analyse, re-create or duplicate remote Signals
• Wireless control applications
• Receiver circuit for IR remote controls
• IR Remote tester circuits
