Ublox NEO-6MV2 GPS Module

Description:

The module allows you to add GPS support in a microcontroller system (eg Arduino ), and the built-in NEO-6M system gives great possibilities and ensures high precision of measurement. The module has a built-in cell supporting RTC clock settings.

The NEO-6M is a GPS (Global Positioning System) module and is used for navigation. The module simply checks its location on earth and provides output data which is longitude and latitude of its position.It is from a family of stand-alone GPS receivers featuring the high performance u-blox 6 positioning engine. These flexible and cost effective receivers offer numerous connectivity options in a miniature (16 x 12.2 x 2.4 mm) package. The compact architecture, power and memory options make NEO-6 modules ideal for battery operated mobile devices with very strict cost and space constraints. Its Innovative design gives NEO-6M excellent navigation performance even in the most challenging environments.

NEO-6MV2 GPS Module Pin Configuration

The module has four output pins and we will describe the function each pin of them below. The powering of module and communication interface is done through these four pins.

Specifications:

• GPS system: U-blox NEO-6M
• Receiver Type:
  • 50 Channels
  • GPS L1 frequency, C/A Code
  • SBAS: WAAS, EGNOS, MSAS
• Horizontal position accuracy:
  • GPS: 2.5 m
  • SBAS: 2.0 m
  • SBAS + PPP < 1 m (2D, R50)
  • SBAS + PPP < 2 m (3D, R50)
• Maximum speed: 500 m/s
• Acceleration: <4g
• Tracking sensitivity: -161 dBm
• Sensitivity of acquisition: -148 dBm
• Average time of “cold start”: 27 seconds
• The average “warm start” time is 27 s
• Hot start time: 1 sec
• Average recovery time: 0.1s
• Working temperature range: -40 ° C to + 80 ° C
• Power supply range: from +3.5 V to +5.5 V
• Bus voltage UART: 3.3 V
• UART: 9600 baud by default, but is configurable from 4800 to 115200 baud
• 5Hz max update rate
• The soldering points allow the antenna to be mounted on the PCB
• Built-in RTC backup battery
• Built-in u.FL connector for antenna
• Supply voltage: 3.6V
• Maximum DC current at any output: 10mA
• Module dimensions (without antenna): 36 x 26 x 4 mm

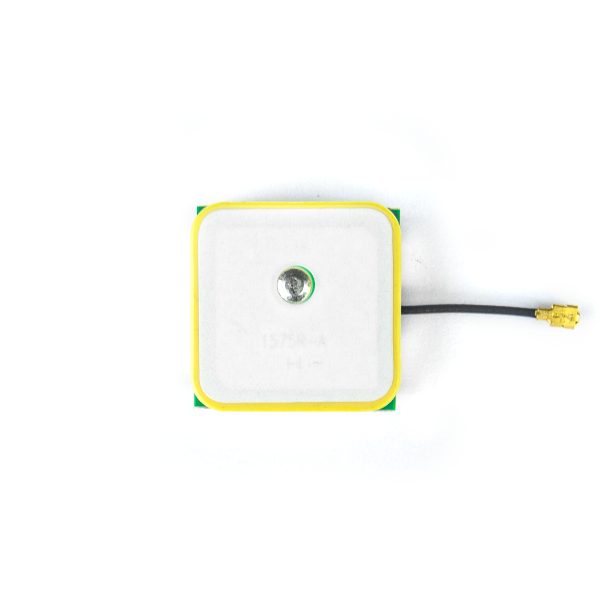

• Dimensions of the antenna: 28 x 28 x 8 mm
