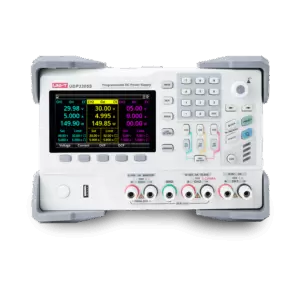

UNI-T UDP3305S High-Performance Programmable Linear DC Power Supply 4 Channels

21,500.00 EGP

Availability: Out of stock
SKU:6935750533444

The UDP3000S Series is a high-performance programmable linear DC power supply. It has a clear LCD user interface, excellent performance indicators, a variety of analysis functions and communication interfaces. It can meet the diversified test needs of users. It aims to provide cost-effective DC programmable power supply equipment for teaching, scientific research, industry and other fields.

Features
  • The maximum power can reach 373W, and the output of each channel is individually controllable
  • Four-channel independent output: CH1/CH2: 0~30V/5A, CH3: 0~6V/3A, CH4: 5V/2A (USB)
  • Multi-protection: over voltage/over current/over temperature protection
  • CH1/CH2/CH3 independent output switch
  • Excellent load regulation and line regulation
  • Ultra-low output ripple and noise
  • Internal series and parallel connection output function
  • Voltage and current linear programmable functions
  • 4.3″ TFT display, which can display multiple parameters and three-channel status at the same time
  • List mode/delayer, can control voltage and current output according to users’ needs
  • External trigger function to realize industrial automation control
  • USB Host, USB Device, LAN, RS232, Digital IO interfaces
  • With a waveform display function, the instrument can display the output voltage/current waveform in real time, and cooperate with the digital display of the voltage, current and power values, which is convenient for users to know the output status and trend of the instrument.
  • The instrument can automatically control the fan speed according to the operating conditions to reduce the noise.
  • Fan fault detection and alarm function
  • 10 sets of settings to save and recall, supports U disk read and storage
  • Five-digit voltage/four-digit current high-precision display, resolution: 1mV/1mA
  • Key lock function to prevent accidental touch
  • Supports SCPI remote command control
Specifications
Output switch Each channel
Voltage range CH1: 0 – 32 V
CH2: 0 – 32 V
CH3: 0 – 6 V
CH4: 5 V
Current range CH1: 0 – 5 A
CH2: 0 – 5 A
CH2: 0 – 3 A
CH2: 2 A
Ripple ≤ 350 μ V / 2 mA
Protection OCP, OVP, OTP
Interfaces USB host/device, LAN, RS232, Digital IO
Display 4.3″ TFT
Dimensions 355 x 240 x 168 mm
Weight 10.2 kg
Documents
UDP3000S User’s Guide
UDP3000S Series DataSheet-EN
UDP3000S PROGRAMMING MANUAL
