UNI-T UT306S Infrared Thermometer
UNI-T UT306S Infrared Thermometer is designed for robust and user-friendly operation. Its primary function is to enable users to measure the surface temperature of an object from a safe distance without any physical contact. This non-contact approach makes it an efficient and hygienic tool for instant temperature readings.
The device is engineered for simplicity and reliability in various demanding environments. It features a clear TN-LCD display that presents readings effectively. To aid in accurate targeting, the UT306S is equipped with a single-point laser, allowing the user to precisely identify the measurement area. Its ergonomic design ensures it is straightforward to operate for both occasional and regular use.
Beyond basic temperature reading, the UT306S offers advanced data management features. It includes modes for tracking maximum, minimum, and average temperatures over time, as well as calculating the difference between readings. With an audible high/low temperature alarm and data hold function, it provides a comprehensive solution for monitoring and analyzing thermal conditions quickly and effectively.

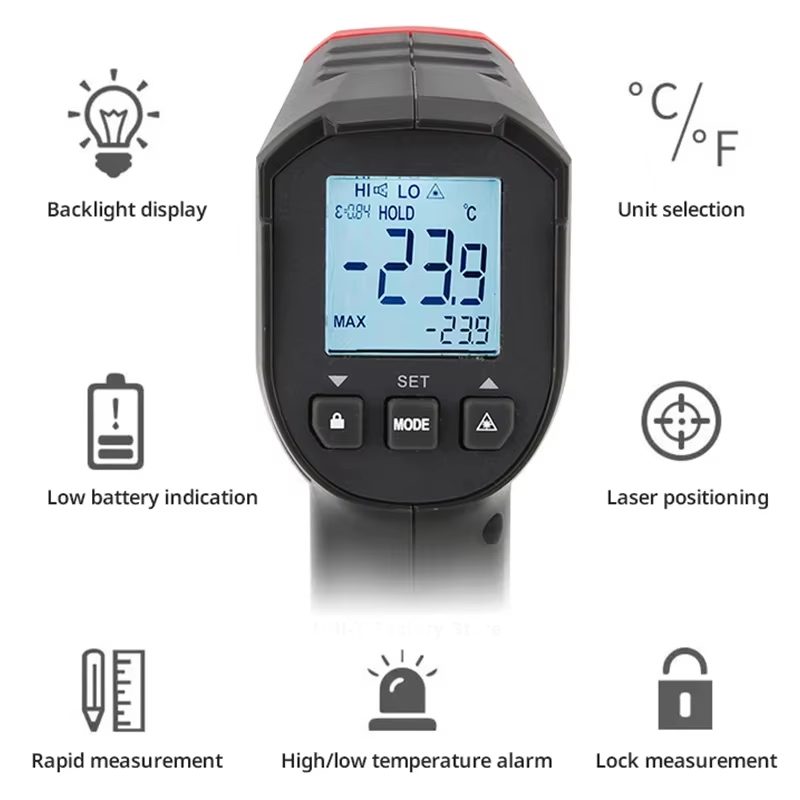

Features
- Non-contact temperature measurement.
- TN-LCD Display.
- Unit Selection (°C/°F).
- Laser On/Off function.
- Data Hold.
- Auto Power Off.
- Low Battery Indication.
- MAX/MIN/AVG/DIF Mode.
- High/Low Temperature Alarm (Audible).
- Drop tested from 1 meter.

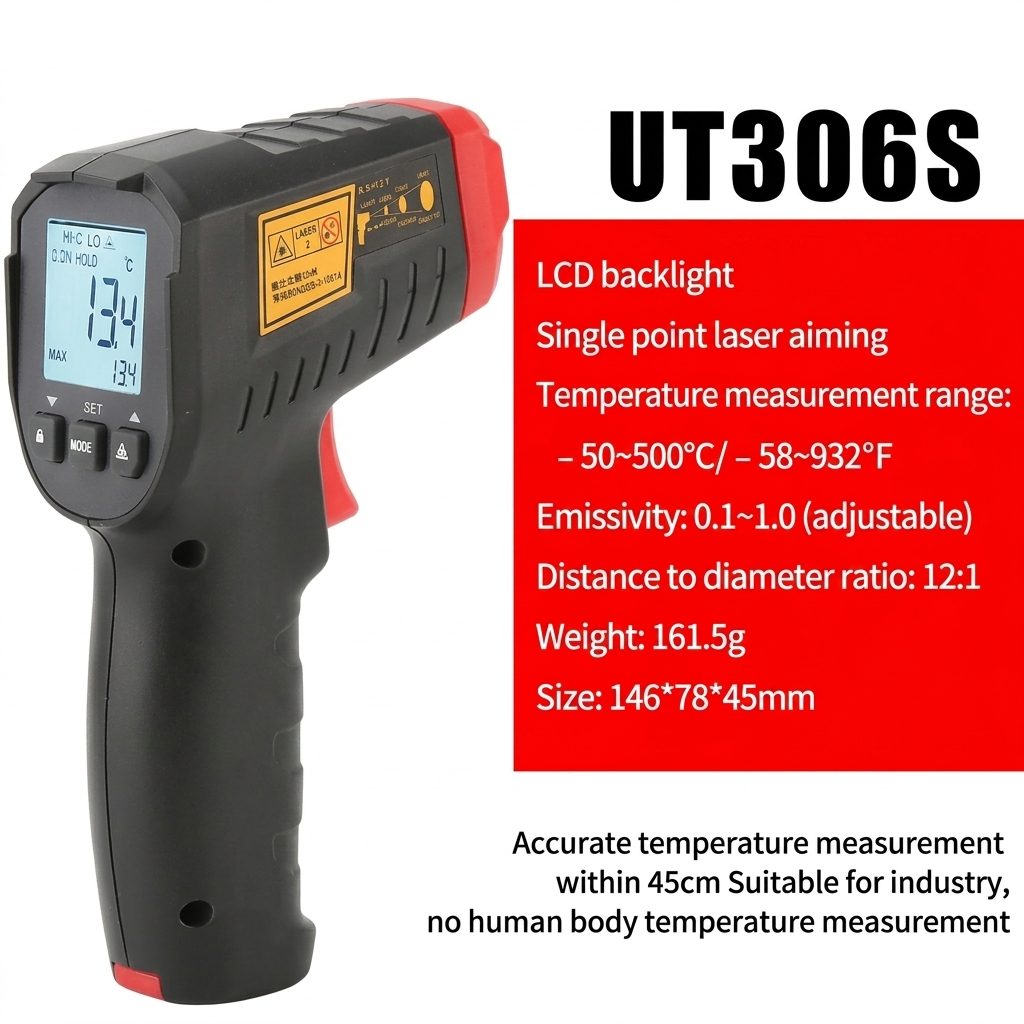

Specifications
| Parameter | Details |
| Temperature Range: | -50℃ ~ 500℃ |
| Laser type: | Single |
| Accuracy: | ±2°C or ±2% |
| Resolution: | 0.1°C |
| Distance-to-spot ratio: | 12:1 |
| Response time: | ≤250ms |
| Emissivity: | 0.10~1.00 Adjustable |
| Laser class: | Class 2 |
| Laser power: | ＜1mW |
| Laser wavelength: | 630nm ～670nm |
| Spectral response: | 8μm～14μm |
| Features | |
| display type: | TN-LCD |
| Unit selection: | °C/°F |
| Laser on/off: | √ |
| Data Hold: | √ |
| Auto Power Off: | √ |
| Low Battery Indication: | √ |
| MAX/MIN/AVG/DIF mode: | √ |
| High/low temperature alarm （audible）: | √ |
| Drop test: | 1meter |
| General Characteristics | |
| Power: | 2 x AAA Battery 1.5V |
| Product color: | Red and grey |
| Product net weight: | 161.5g |
| Product size: | 146mm x 78mm x 45mm |
Applications
- Food Safety and Preparation.

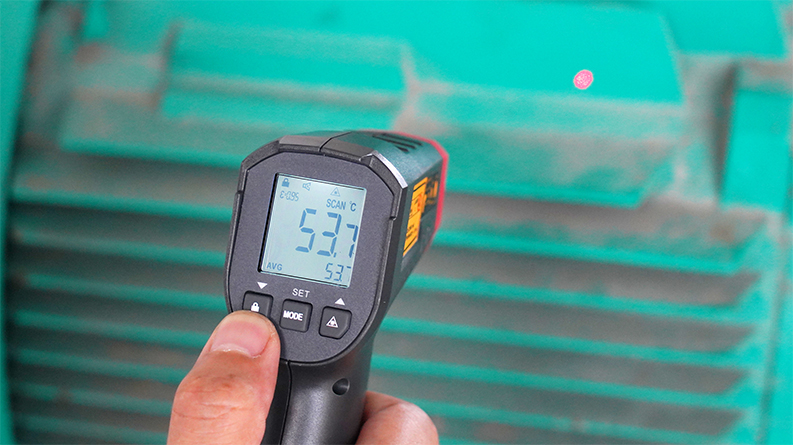

- Industrial Machine Maintenance.

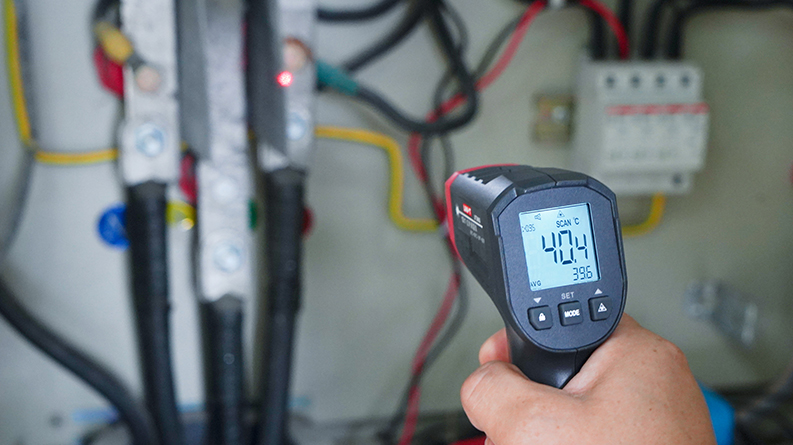

- Electrical Component Inspection.
- HVAC System Monitoring.
- Metalworking and Welding.
- Cold Storage Monitoring.
- Automotive Diagnostics.
- Building Inspections.
Package Contents
- 1 x UNI-T UT306S Infrared Thermometer
- 2 x AAA battery 1.5V
- 1 x User Manual
- 1 x Carrying Bag
