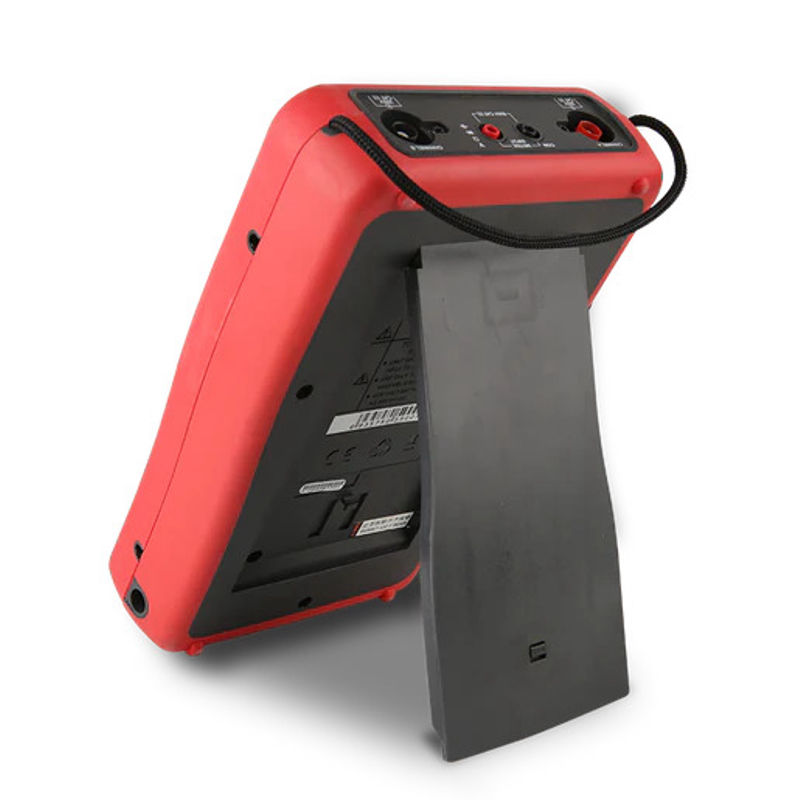

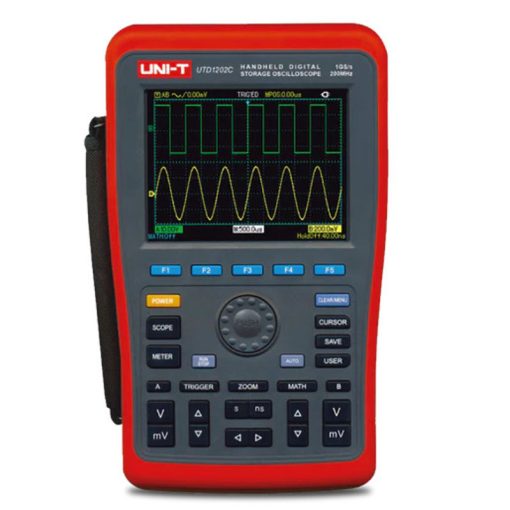

UNI-T UTD1102C Handheld Oscilloscope
The UNI-T UTD1102C is a handheld digital storage oscilloscope in the UTD1000 series, offering a 100 MHz analog bandwidth and up to 500 MS/s real-time sampling rate on two channels. Housed in a compact, portable case, it features a 5.7 inch (320×240 pixel) color LCD that provides clear waveform viewing and analysis. Its user interface mimics traditional bench oscilloscope controls dedicated scaling and position knobs, plus an [AUTO] key for one-touch waveform setup allowing technicians to operate it with minimal learning time.
Internally, an 8-bit A/D converter captures up to 512 kpts per channel (1 Mpt total), with selectable acquisition modes (sampling, peak detect, or average) and an equivalent-time sampling mode (up to 25 GS/s) for high-resolution at very fast time bases . The instrument’s front panel offers dual-channel vertical controls (5 mV/div – 50 V/div), horizontal time bases (5 ns/div – 50 s/div for 100 MHz model), and a comprehensive trigger menu (edge, pulse, video, alternate) for capturing both repetitive and single-shot events. Auxiliary functions include FFT, arithmetic operations, a two-channel multimeter, and on-screen parameter measurements of up to 27 waveform metrics.
Powered by an internal Li-ion battery (3 hrs run time) or external AC adaptor, the UTD1102C combines full bench-scope functionality with rugged portability for field diagnostics and educational use .
Features:
- Dual-channel input with vertical range from 5 mV/div to 50 V/div and 1 MΩ‖21 pF input.
- 100 MHz analog bandwidth, optionally bandwidth-limited to 50 MHz.
- 500 MS/s real-time sampling per channel; equivalent-time up to 25 GS/s.
- 8-bit vertical resolution, 2×512 kpt record length per channel.
- Automatic waveform setup button ([AUTO]) for rapid signal display.
- Built-in FFT with selectable window functions (Hanning, Hamming, Blackman, Rectangle).
- 27-parameter automatic measurements (e.g., V, frequency, rise time, delay).
- Waveform recording, storage, and USB screen-capture functionality.
- On-board 2-channel digital multimeter (DC/AC volts, resistance, continuity, diode, capacitance, DC/AC current).
- Multi-language menu, USB2.0 interface, SB-drive firmware upgrade.
- 5.7″ HD color LCD, 320×240 pixel resolution, infrared backlight adjustment.
Specifications:
| Parameter | Value (UTD1102C) | Conditions / Notes |
|---|---|---|
| Channels: | 2 | – |
| Analog Bandwidth: | 100 MHz | – |
| Bandwidth Limit: | 50 MHz | User-selectable (–3 dB at 50 MHz) |
| Sampling Rate (real-time): | 500 MS/s | Per channel |
| Equivalent-Time Sampling: | 25 GS/s | When acquiring repetitive waveforms |
| Record Length: | 512 kpts per channel (1 Mpt total) | – |
| Vertical Resolution: | 8 bit | – |
| Vertical Sensitivity: | 5 mV/div – 50 V/div | On BNC inputs |
| Vertical Accuracy (DC, avg mode): | ±(3% × reading + 0.1 div + 1 mV) at 5 mV/div; ±(3% × reading + 0.1 div) at 10 mV/div – 50 V/div |
For N ≥ 16 waveform averages |
| Vertical Displacement: | ±10 div | – |
| Rise Time (nominal): | ≤3.5 ns | (–3 dB for 100 MHz) |
| Input Coupling: | DC, AC, GND | – |
| Input Impedance: | 1 MΩ ± 2% ∥ 21 pF ± 3 pF | – |
| Probe Attenuation: | 1X, 10X, 100X, 1000X | Jumper-selectable; user matches front-panel setting |
| Max Input Voltage (any channel): | 400 V (DC + AC peak) | – |
| Time Base Range: | 5 ns/div – 50 s/div | In 1-2-5 increments |
| Time Base Accuracy: | ±50 ppm (≥ 1 ms intervals) | – |
| X-Y Mode: | On (A→X, B→Y) | – |
| Trigger Types: | Edge, Pulse, Video, Alternate | – |
| Trigger Sensitivity: | ≤1 div | At input (≥ 20 ns rise/fall) |
| Trigger Level Range: | ±5 div from screen center | – |
| Holdoff Range: | 40 ns – 1.5 s | – |
| Pulse Width Trigger: | 40 ns – 6.4 s | >, <, = positive or negative pulses |
| Video Trigger: | NTSC, PAL; Field/Line/Zones | – |
| Acquisition Modes: | Sample, Peak Detect, Average (2…256×) | – |
| FFT Frequency Range: | 305.1 mHz – 244.1 MHz | Selectable; window functions: Hanning, Hamming, Blackman, Rectangle |
| Automatic Measurements: | 27 parameters (e.g., Vmax, Vpp, frequency, rise/fall, duty, delay, etc.) | Up to 3 simultaneously displayed |
| Multimeter (battery-powered): | DC/AC Volts, Resistance, Continuity, Diode, Capacitance, DC/AC Current (auto/manual ranges, 5999-count) | – |
| Display: | 5.7″ color TFT LCD (320 × 240 pixels) | – |
| Screen Update Modes: | Vector, Dot; Duration: OFF, 2 s, 5 s, ∞ | – |
| USB Interface: | USB 2.0 (HOST & DEVICE) for PC connectivity, firmware upgrades, USB drive screen-capture | – |
| Power Supply: | 100 – 240 VAC RMS 45 – 440 Hz; internal Li-ion battery ( 3 h) | Battery life: UTD1102C ≈ 3 h |
| Operating Temperature: | 0 °C – +40 °C | – |
| Storage Temperature: | –20 °C – +60 °C | – |
| Humidity: | < 90% RH (≤ 35 °C); < 60% RH (35 – 40 °C) |
– |
| Dimensions: | 268 × 168 × 60 mm | – |
| Weight (Net/Gross): | 1.8 kg / 4.5 kg | – |
| IP Rating: | IP2X | – |
Applications:
- Field Equipment Maintenance.
- Industrial Electronics Debugging.
- Automotive Diagnostics.
- Embedded System Testing.
- Education and Training in Electronics.
- Power Supply and Inverter Troubleshooting.
- Signal Integrity Analysis in Communication Circuits.
Package Contents:
- 2× 1.2 m passive voltage probes (1:1/10:1)
- 1× international power cord
- 1× User Manual
- 2× current-to-voltage converter modules (UT-M03/UT-M04)
- 1× DC adapter
- 1× test lead
