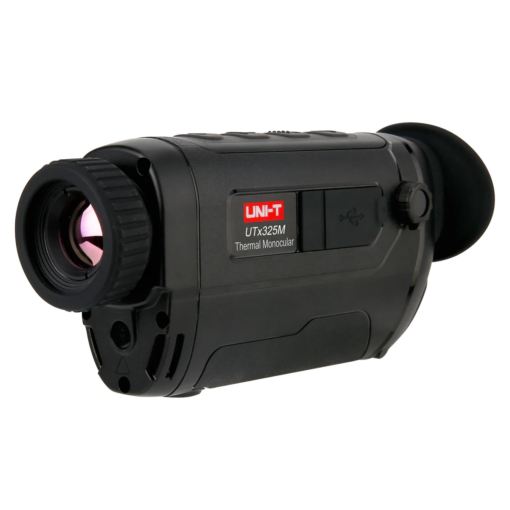

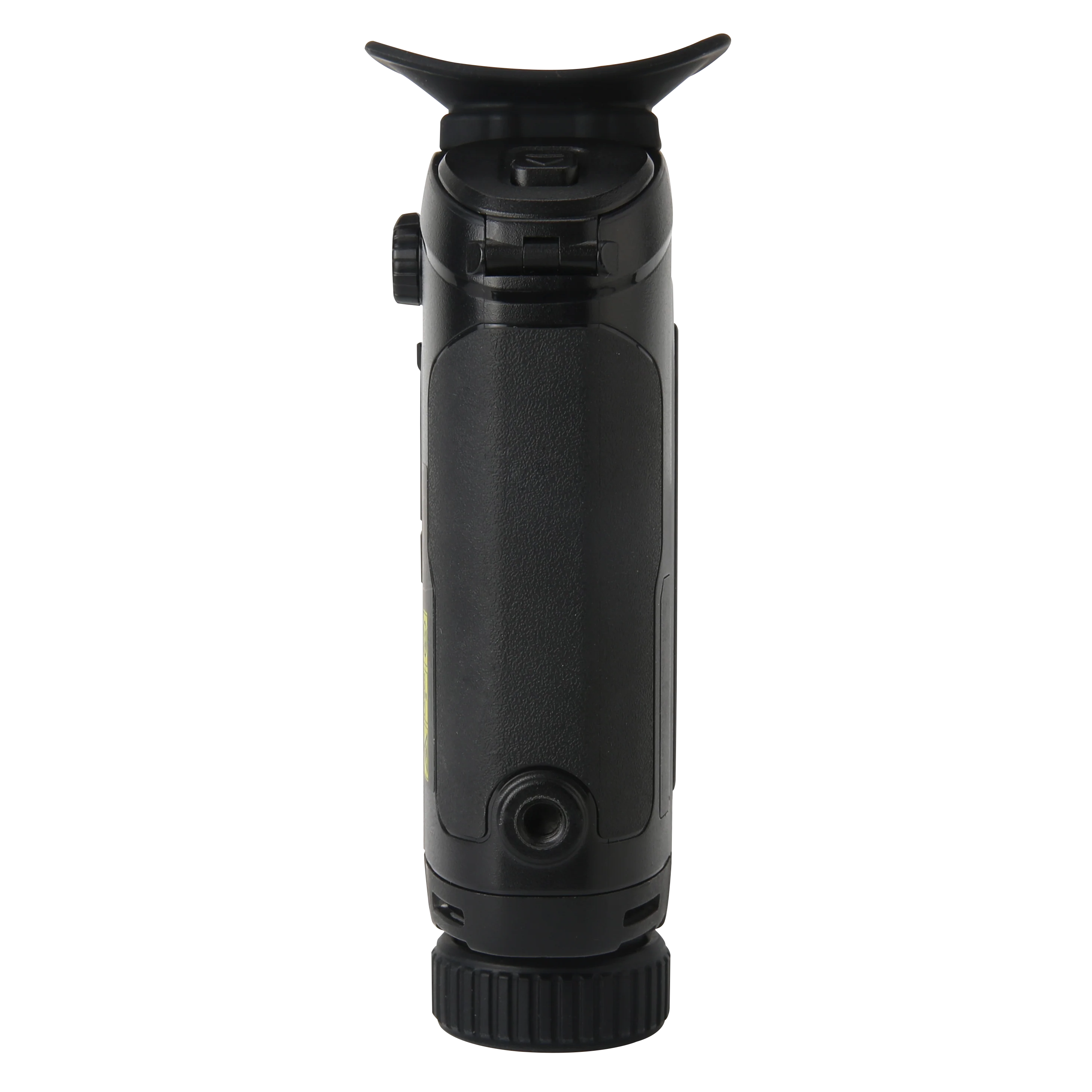

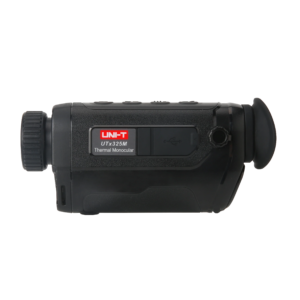

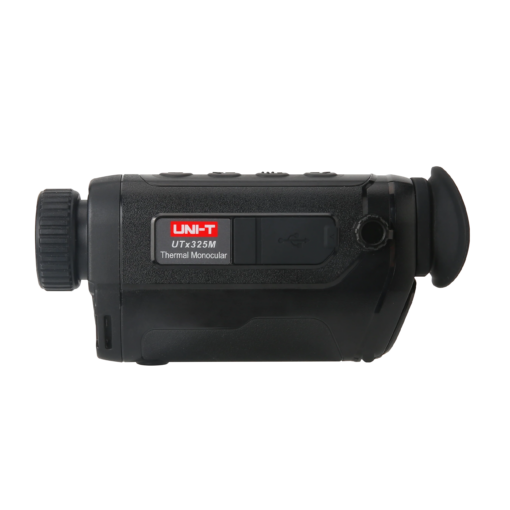

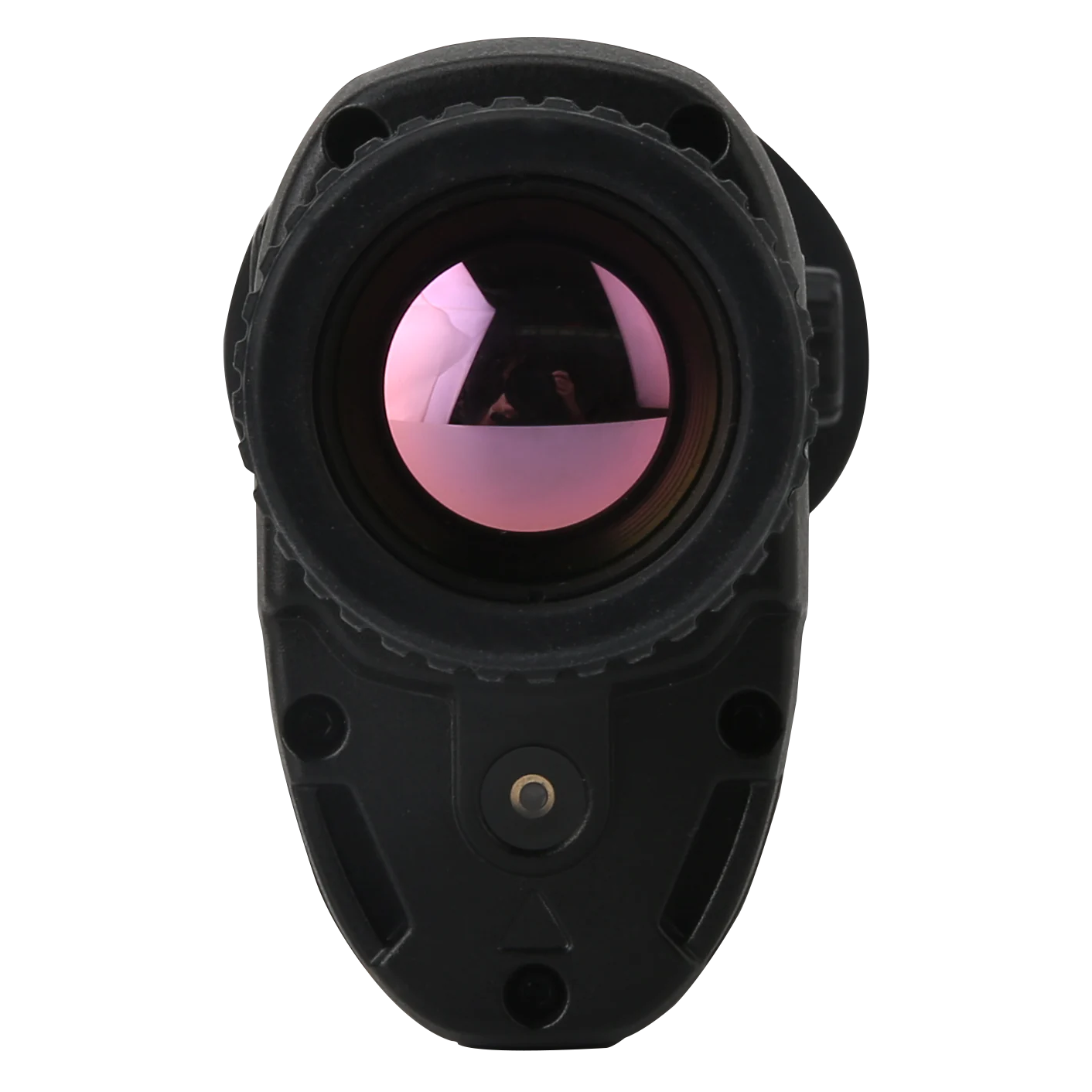

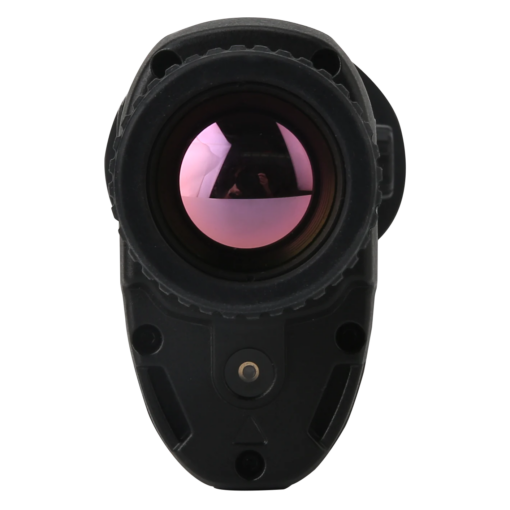

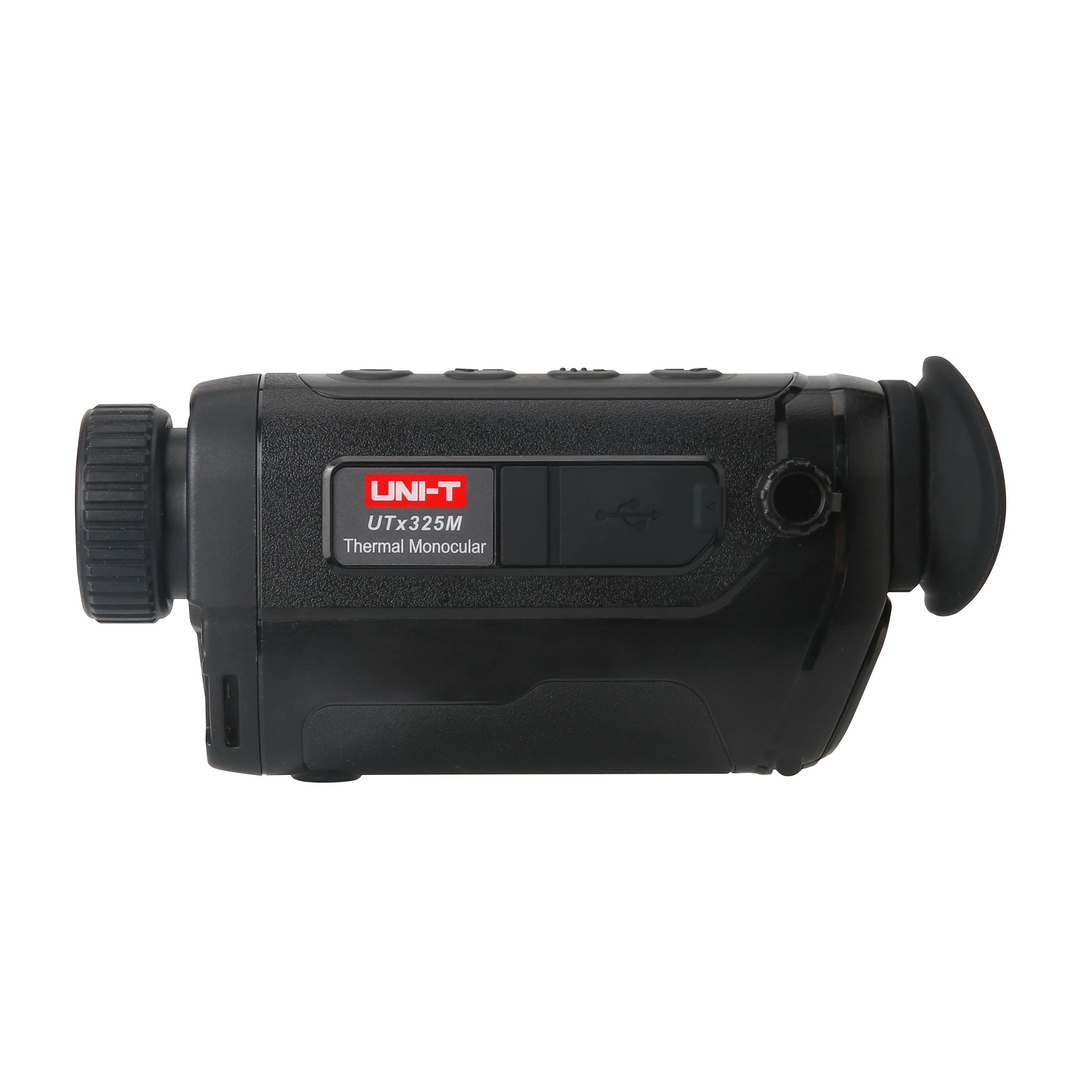

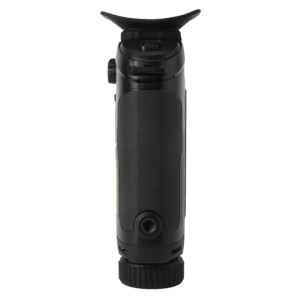

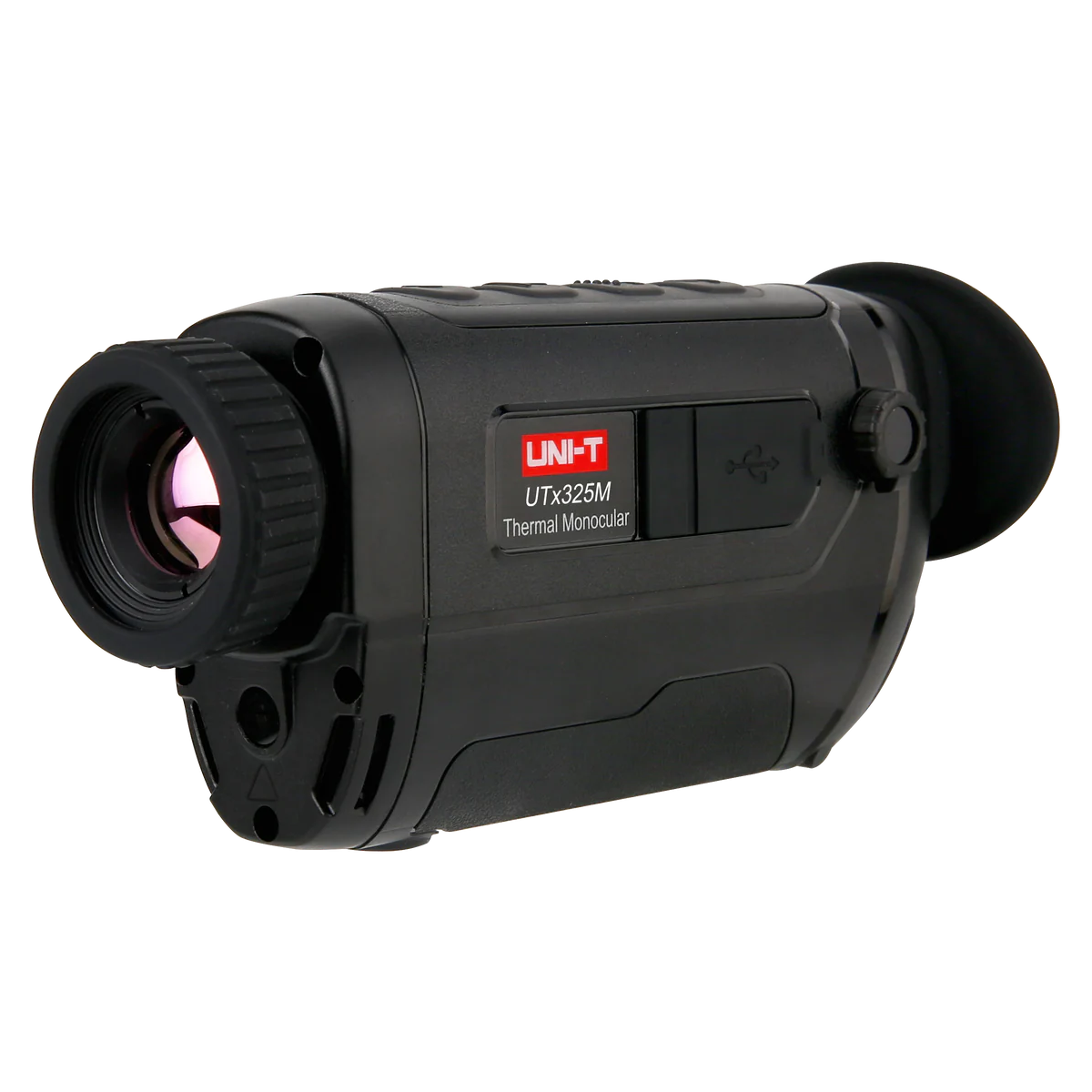

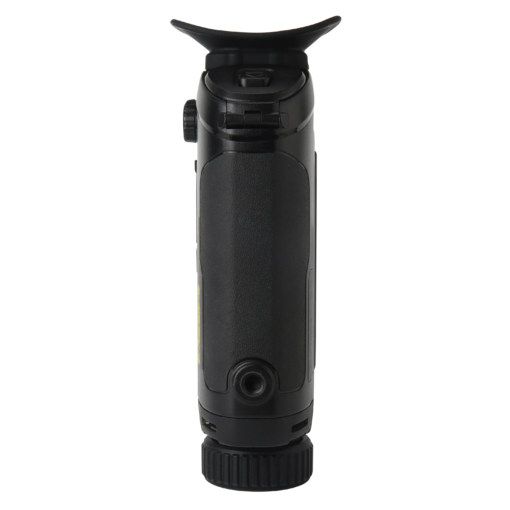

UNI-T UTx325M Thermal Monocular

UNI-T UTx325M is a compact thermal monocular with a 256×192 IR sensor, 25Hz refresh rate, and multiple color palettes, ideal for night vision and outdoor use.

55,500.00 EGP

Buy Now
Availability: In Stock
SKU:3496300110018
Brand:
UNI-T UTx325M Thermal Monocular

UTx325M is a lighter weight thermal monocular that equipped with 400×300 IR detector and 0.39″ OLED display screen. Fits human’s palm better. The detachable battery pack design ensures the duration performance. Connecting “Thermal Xplorer” mobile app via Wi-Fi to realize real-time images projection, share the fun with other hunters. UTx325M is a pretty good choice for outdoor lovers.

Product Features of  UNI-T UTx325M Thermal Monocular:
  • Light-weight & compact design.
  • 0.39″ OLED display screen.
  • Detachable battery pack (UT-M20).
  • Stadiametric ranging.
  • Smart standby.
  • E-Compass.
  • Video recording.
  • Wi-Fi live streaming.
Product Specifications of UNI-T UTx325M Thermal Monocular:
Technical Data
Display0.39″ OLED (1024×768)
Detector typeUFPA (Vanadium oxide)
IR resolution(Pixels)400×300
Spectral range8~14µm
Pixel size12μm
Frame rate≤50Hz
Thermal sensitivity(NETD)≤25mK
FocusManual focus
Lens focal length25mm
Field of view(FOV)10.5°(H) x 7.9°(V)
Eyepiece relief distance18mm
Diopter adjustment -4D~+5D
Functions
Color palettesBlack hot, White hot, Hottest, Ironbow, Rainbow
Digital zoom2x, 4x, 8x / 1.0~8x continuous
Scene modesBird, Forest, Rock
Calibration modesAuto, Manual, Background
Stadiametric ranging
Smart standby
Hot trace
E-Compass
PIP
Video recording
Photo viewingDevice Local, PC, APP
Wi-Fi download photo
Wi-Fi live streaming
Video outputType-C interface
Analysis softwareAPP (Android & iOS)
General Characteristics
Battery3200mAh detachable Li-ion battery (UT-M20)
Operating timeApprox. 4 hours
USBType-C
Storage16GB Internal
Image storage formatPNG
Video storage formatMP4
ProtectionIP67 & 2m drop proof
CertificatesEAC, CE, FCC, RoHS, FDA
LanguagesEN, FR, DE, ES, IT, RU, UA
Weight357g
Dimension160mmx71.5mmX38.5mm
Packing Details
Standard accessoriesType-C USB cable, Hand Strap, Cloth Bag, Charging Base, Rechargeable Li-ion battery×2, Quick Start Guide, Tool Box
Standard Qty per carton1pcs
Standard carton size305mm×135mm×265mm
Standard carton G.W.2kg
Applications of  UNI-T UTx325M Thermal Monocular:
  • Hunting & Wildlife Observation.
  • Search & Rescue.
  • Security & Surveillance.
  • Outdoor & Navigation.
  • Industrial Inspections.

 UTx 325 application

Technical Documents:

UTx325M | Flyer

UTx325M | User Manual
