USB Type-C Female Connector Solder Wire Adapter 4 Pin with Dual Resistor 5.1k

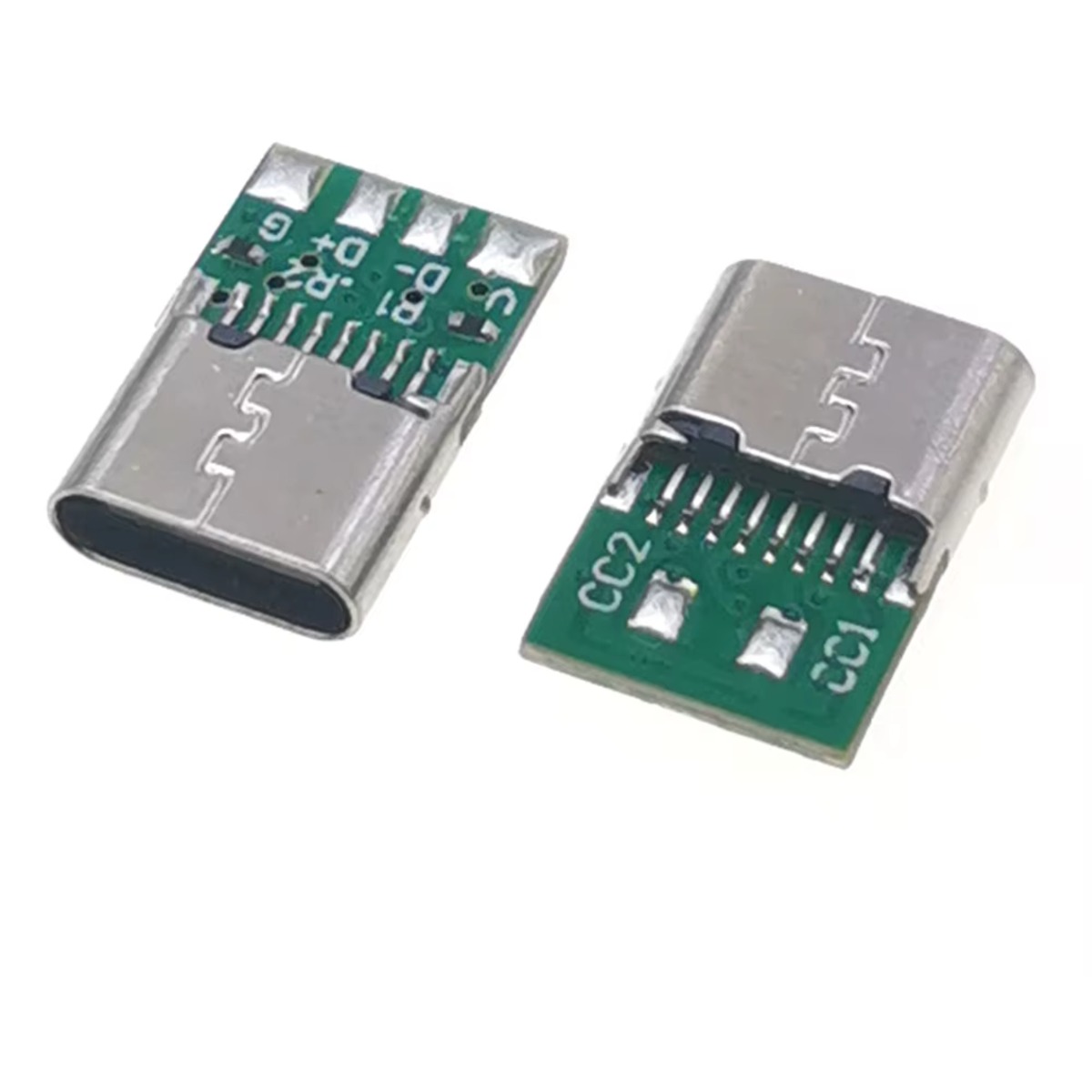

The USB Type-C Female Connector Solder Wire Adapter 4 Pin is a compact USB Type-C power connector designed for simple wire soldering applications. It provides four connection points for VBUS, GND, CC1, and CC2, allowing convenient integration of a USB Type-C power port into DIY electronics, charging circuits, and custom devices without requiring a PCB.
The adapter includes dual 5.1kΩ resistors connected to the CC pins, which allow it to function as a USB Type-C power sink and request standard 5V power from a compatible USB Type-C source. Its compact design makes it suitable for portable devices, electronic repairs, prototype projects, and custom power input applications.
Features:
- USB Type-C female connector.
- 4-pin solder wire connection.
- Dual integrated 5.1kΩ resistors.
- Designed for USB Type-C power input.
- Supports standard 5V USB Type-C power.
- Compact and lightweight design.
- Easy wire soldering.
- Reversible USB Type-C plug connection.
- Suitable for DIY and repair projects.
- No PCB connector required for installation.
Specifications:
| Specification | Value |
|---|---|
| Connector Type | USB Type-C Female |
| Number of Connection Pins | 4 Pins |
| Resistor Configuration | Dual 5.1kΩ |
| Primary Function | Power Input |
| Standard Power Voltage | 5V DC |
| Connection Method | Solder Wire |
| Data Transfer | Not Supported |
| USB Type-C Role | Power Sink |
Pinout:
| Pin Label | USB-C Function | Description |
|---|---|---|
| V | VBUS | Power Supply (5V, rated up to 5A) |
| D- | D- | USB 2.0 Data Negative |
| D+ | D+ | USB 2.0 Data Positive |
| G | GND | Ground |
| CC1 | CC1 | Configuration Channel 1 (Used for plug orientation detection and Power Delivery negotiation) |
| CC2 | CC2 | Configuration Channel 2 (Used for plug orientation detection and Power Delivery negotiation) |
Applications:
- USB Type-C power input projects.
- DIY electronic circuits.
- Portable electronics.
- USB Type-C charging ports.
- Arduino and development projects.
- Electronic repair.
- Custom power cables.
- Embedded systems.
- Prototype circuits.
Package Includes:
- 1 × USB Type-C Female Connector Solder Wire Adapter 4 Pin with Dual Resistor 5.1kΩ.
