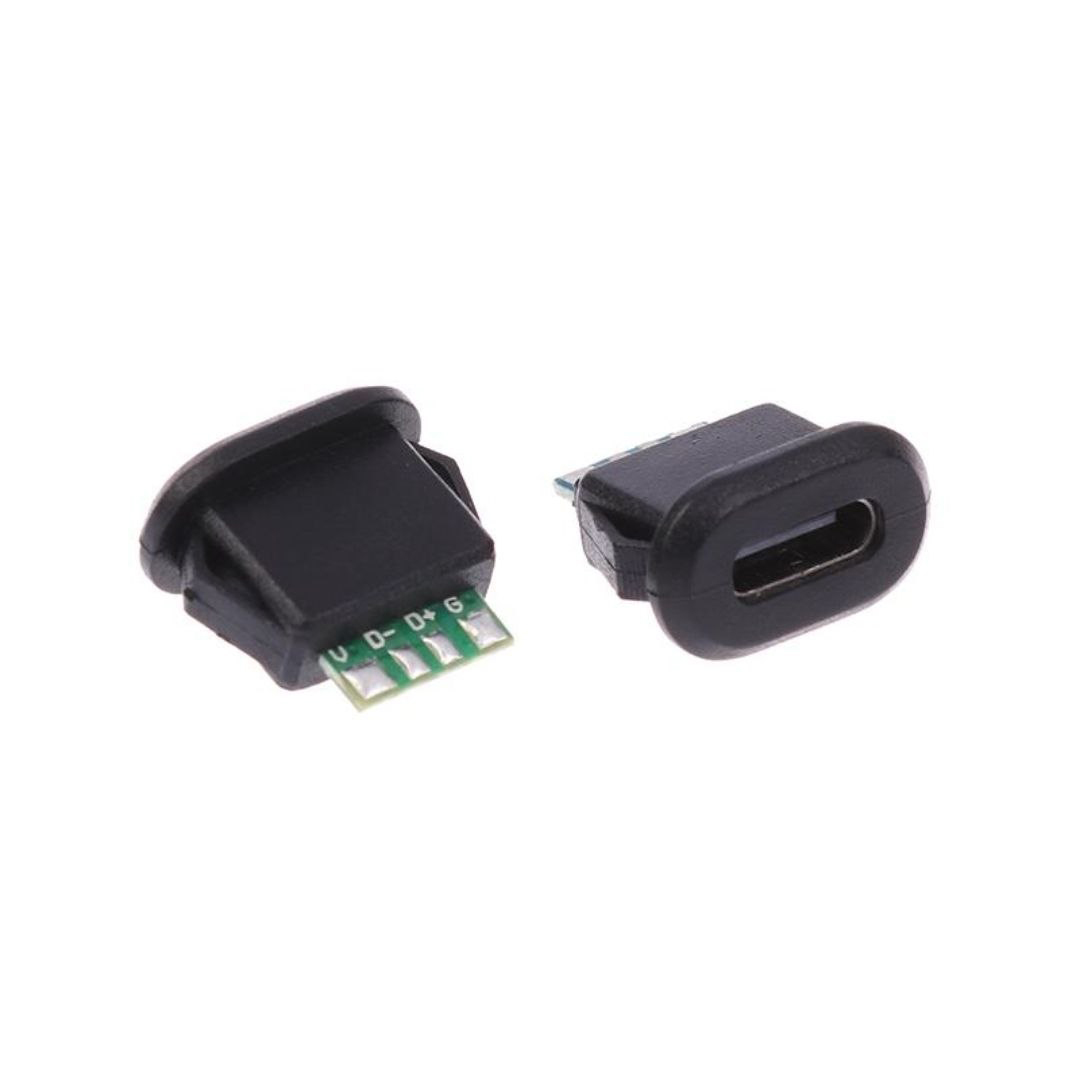

USB Type-C Female Panel Mount Socket Waterproof Connector 6 Pin 5A (Black)
The Waterproof Panel Mount Female USB Type-C Socket Connector is a durable panel-mount interface designed to provide a convenient USB Type-C connection through an enclosure or equipment panel. Its panel-mount construction allows the connector to be securely installed while keeping the USB Type-C port accessible from the outside, making it suitable for custom electronic devices, control boxes, automotive projects, power systems, and other equipment requiring a protected external USB connection.
This 6-pin connector supports high-current power delivery up to 5A, making it suitable for applications where reliable power transfer is required. The waterproof construction helps protect the connection against moisture, dust, and environmental exposure when properly installed and sealed. The black housing provides a clean and professional appearance while offering a practical solution for extending USB Type-C connectivity to the exterior of an enclosure, Front Chassis Panel Mount.
Features:
- Female USB Type-C panel-mount socket.
- Waterproof construction for protected installations.
- 6-pin electrical connection.
- Supports high-current power applications.
- Secure panel-mount installation.
- Durable black housing.
- Provides convenient external USB Type-C access.
- Suitable for enclosed and outdoor electronic equipment.
Specifications:
| Specification | Details |
|---|---|
| Connector Type | USB Type-C Female |
| Mounting Type | Panel Mount |
| Number of Pins | 6 Pin |
| Maximum Current | 5A |
| Housing Color | Black |
| Waterproof Design | Yes |
| Connector Gender | Female |
| Application | Power and USB Type-C connection |
| Installation | Panel / Enclosure Mount |
Pinout:
| Pin Label | USB-C Function | Description |
|---|---|---|
| V | VBUS | Power Supply (5V, rated up to 5A) |
| D- | D- | USB 2.0 Data Negative |
| D+ | D+ | USB 2.0 Data Positive |
| G | GND | Ground |
| CC1 | CC1 | Configuration Channel 1 (Used for plug orientation detection and Power Delivery negotiation) |
| CC2 | CC2 | Configuration Channel 2 (Used for plug orientation detection and Power Delivery negotiation) |
Applications:
- Electronic enclosures.
- Control panels.
- Automotive electronics.
- DIY electronic projects.
- Outdoor electronic equipment.
- Portable power systems.
- Embedded systems.
- USB Type-C extension interfaces.
- Industrial equipment.
- Custom power and charging systems.
Package Includes:
- 1 × Waterproof Panel Mount Female USB Type-C Socket Connector 6 Pin 5A (Black).
