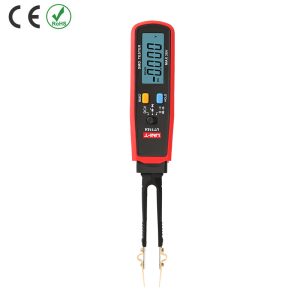

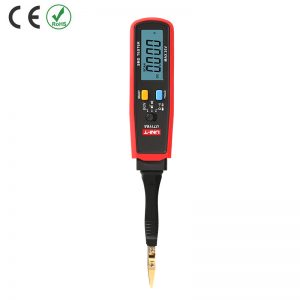

UT116A SMD Tester

UT116 series SMD tester is a miniaturized and integrated utility model measuring instrument, which can automatically identify components such as resistance, capacitance, diode, etc., with LED, voltage regulator, DCV, on-off and battery power measurement functions. SMD resistance, capacitance, and diode (RCD) parameter measurement is a good helper for electronics factories and electronics maintenance.

• 36V DC voltage measurement
• Zener diode polarity test
• Resistance, capacitance (UT116A: up to 30mF), continuity, diode measurement
• The pen can be rotated by 180, which is convenient for reading and diode/LED

Specifications of UT116A SMD Testers

Specifications	UT116A
Display count	3000
Resistance	30MΩ
Capacitance	30mF
Diode test	3V
LED/stabilivolt	About 21V/1mA
Continuity test	＜30Ω
DCV	36V
Auto range	√
Auto scan identification	√
Auto power off	√
General Characteristics
Power	1.5V battery (R03) x 2
Display	39mm x 20mm
Product Color	Red and grey
Product net weight	About 80g
Product size	204mm x 33mm x 25mm

Applications of UT116 Series SMD Testers

LED measurement

Resistance measurement
