UNI-T UT125C Pocket Size Digital Multimeter
UT125C is a pocket-sized, ergonomic, and reliable multimeter with 4000 display counts. It is a useful tool for electronics DIYers working with low currents (< 0.4A). This product is CE/cETLus certified and complies with CAT III 600V.
Features:
- Small size, easy to carry and operate
- 600V DC/AC voltage measurement
- 400mA DC/AC current measurement
- Resistance/Capacitance/Diode/Continuity test
- Frequency/Duty cycle measurement
- CE (EMC, LVD, RoHS), cETLus
- CAT III 600V
- 1m drop test
Specifications:
| Specifications | Range | UT125C |
| DC voltage (V): | 600V | ±(0.5%+5) |
| AC voltage (V): | 600V | ±(1.2%+5) |
| DC current (A): | 400mA | ±(1.8%+5) |
| AC current (A): | 400mA | ±(2%+8) |
| Resistance (Ω): | 40MΩ | ±(1%+5) |
| Capacitance (F): | 100μF | ±(4%+10) |
| Frequency (Hz): | 10Hz~60kHz | ±(0.1%+5) |
| Duty cycle: | 20%~80% | Reference |
| Features | ||
| NCV: | √ | |
| Diode test/Continuity test: | √ | |
| Low battery indication: | √ | |
| Data hold/Auto power off: | √ | |
| Operating temperature: | 0℃~50℃ | |
| General Characteristics | ||
| Power: | 1.5V battery (R03) x 2 | |
| Display: | 38mm x 23mm | |
| Product Color: | Red and grey | |
| Product net weight: | 180g | |
| Product size: | 112mm x 58mm x 35mm | |
Applications:

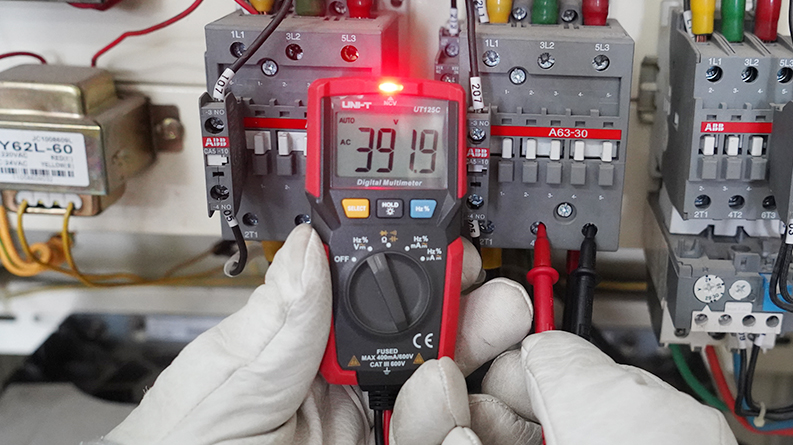

UAC voltage measurement

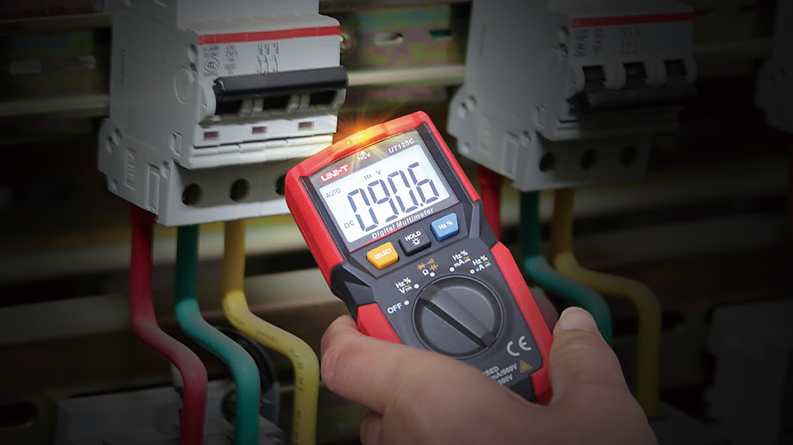

DC voltage measurement
Package Contents:
- 1x UT125C multimeter
- 1x Test leads (integrated or detachable)
- 2x Batteries (AAA 1.5 V)
- 1x Instruction / user manual
