Name: UT892 2000V AC/DC High Voltage Digital Multimeter
SKU: 6935750589205
Price: 1700.00 EGP
Availability: InStock

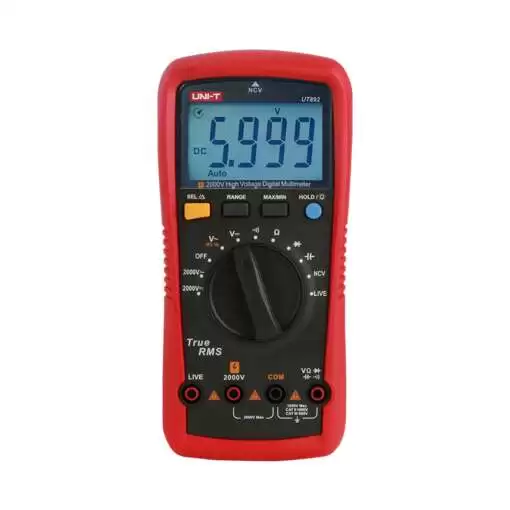

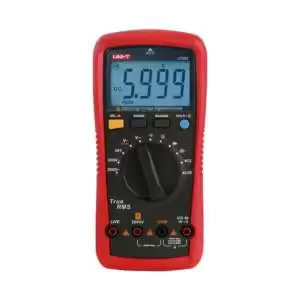

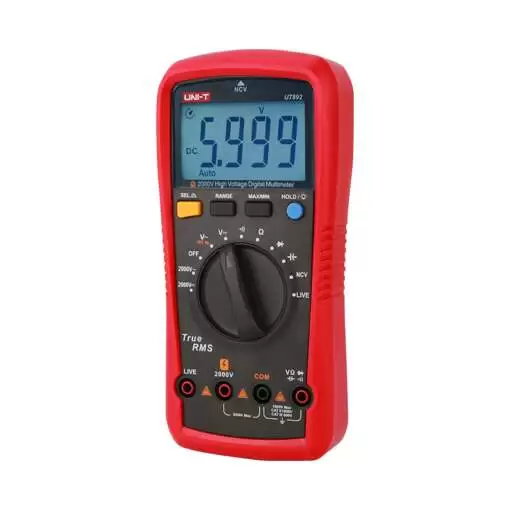

UT892 2000V AC/DC High Voltage Digital Multimeter

UT892 High Voltage Digital Multimeter provides AC/DC voltage measurement up to 2000V with full range overload protection. The specially designed 2000V input terminal and the indication for test leads allow users to take electrical measurements safely and efficiently.

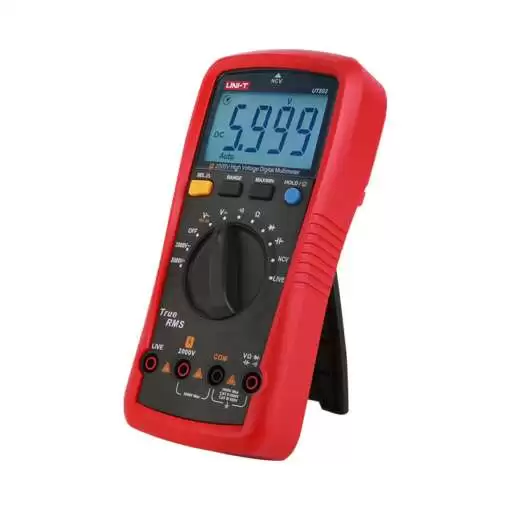

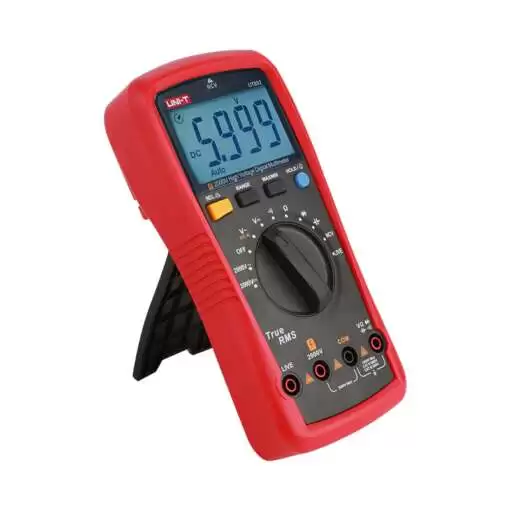

This meter features VFC mode for accurate measurements on variable frequency motor drives and noisy devices. The built-in NCV helps users detect the presence of live voltage without contacting any metal conductor, and the LIVE test can identify the live wire with a single test lead. UT892 has a removable rubber holster that can also hold test probes for one-handed operation.

Features of UT892 2000V AC/DC High Voltage Digital Multimeter

6000 counts True RMS
2000V AC/DC voltage measurement
VFC 600V voltage measurement
LIVE test
60MΩ resistance/60mF capacitance
10kHz frequency measurement
Test lead indication
Backlight
NCV
CAT II 1000V/CAT III 600V

Specifications of UT892 2000V AC/DC High Voltage Digital Multimeter

Specifications	Range	UT892
DC voltage (V)	6.000V/60.00V/600.0V/1000V/2000V	±(0.5%+3)
AC voltage (V)	6.000V/60.00V/600.0V/1000V/2000V	±(1.0%+3)
Variable frequency voltage (VFC)	600V	±(5%)
Frequency (Hz)	10Hz~10kHz	±(0.5%+2)
Resistance (Ω)	600.0Ω/6.000kΩ/60.00kΩ/6.000MΩ/60.00MΩ	±(0.5%+5)
Capacitance (F)	60.00nF/600.0nF~600.0μF/6000μF/60mF	±(3.0%+10)
Features
Display counts		6000
Auto/manual range		√
NCV		√
LIVE test		√
Diode		√
Continuity		√
Low battery indication	≤ Approximately 2.5V	√
Data hold		√
Max/Min		√
Relative mode		√
Auto power off	Approximately 15 minutes	√
Backlight		√
Safety rating	CAT II 1000V/CAT III 600V	√
General Characteristics
Power	AA 1.5V x2
Product color	Red+Gray
Product net weight	350g (Including batteries)
Product size	1878856mm
