Introduction
UTG900 series function arbitrary waveform generator uses direct digital synthesis technology to produce accurate and stable waveform output, as low as 1uhz resolution, is a handheld mini economy, high performance, multi-function arbitrary waveform generator. Can generate accurate, stable, pure, low distortion output signal, easy to operate, superior technical indicators, and humanized graphic display, is a multi-purpose equipment to meet the needs of learning, testing, and improving work efficiency.
Features
- 30MHz sine waveform output, 1uHz full-band resolution
- 200MSa/s sample rate, 14bit vertical resolution, Double channel

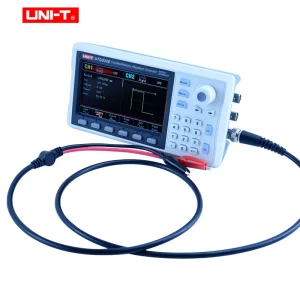

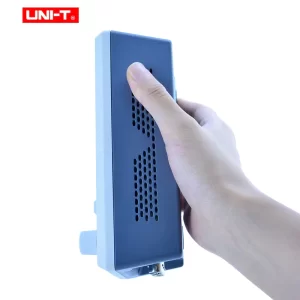

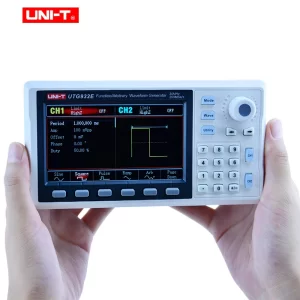

- portable handheld mini signal generator
- High-accuracy, broad-band 6-bit frequency counter, range: 100mHz~100MHz
- Easy to use modulation type: AM, FM, PM, FSK
- 24 non-volatile waveform stores
- 4.3 inches high-resolution color TFT display
Specifications
| Specifications | |
| Model | UTG932E |
| Channel | 2 |
| Max frequency | 30MHz |
| Sampling rate | 200MS/s |
| Vertical resolution | 14 bits |
| Waveforms | Sine, square, pulse, ramp, noise, DC, arbitrary |
| Sweep modes | Logarithmic, linear |
| Frequency Characteristics | |
| Sine | 1μHz~30MHz |
| Square | 1μHz~15MHz |
| Ramp | 1μHz~400kHz |
| Pulse | 1μHz~15MHz |
| Arbitrary | 1μHz~10MHz |
| Resolution | 1μHz |
| Accuracy | Within 90 days ± 50ppm |
| Within 1 year ± 100ppm | |
| 18℃~28℃ | |
| Output Characteristics | |
| Impedance | 50Ω/High Z |
| Amplitude range | 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z) |
| DC offset range (AC+DC) | ±5V (50Ω); ±10V (high Z) |
| Amplitude resolution | 1mV |
| General Characteristics | |
| Power | 100~240VAC, 50Hz/60Hz |
| Display | 4.3” TFT LCD (480×272) |
| Product Color | White and grey |
| Product net weight | 0.33kg |
| Product size | 172mm x 90mm x 68mm |
Document:
UTG900E User’s Guide
UTG900E Datasheet
