VHR-8N JST VH Data Terminal Female 8 Pin Connector Housing 3.96mm
B8PS-VH is an 8-pin side-entry through-hole header from the JST VH series, designed for wire-to-board connections with a 3.96mm pitch.
12.00 EGP
Buy NowVHR-8N JST VH Data Terminal Female 8 Pin Connector Housing 3.96mm
The VHR-8N JST VH Data Terminal Female 8 Pin Connector Housing 3.96mm is a robust and reliable component designed for secure wire-to-board connections. As part of the renowned JST VH series, this housing features an 8-position configuration with a 3.96mm pitch, making it suitable for a variety of electronic applications. Constructed from durable PA 66 material, it ensures longevity and resistance to environmental stress. The natural (white) color aids in easy identification during assembly. This housing is designed to mate with compatible VH series headers, providing a secure connection with its locking mechanism.
Features
- 8-position configuration for multiple connections.
- 3.96mm pitch for compatibility with VH series components.
- Durable PA 66 material for enhanced longevity.
- Natural (white) color for easy identification.
- Locking mechanism for secure mating.
Specifications
| Parameter | Value |
|---|---|
| Number of Positions | 8 |
| Pitch | 3.96mm |
| Material | PA 66 |
| Color | Natural (white) |
| Applicable Wire Range | AWG #22 to #16 |
| Insulation O.D. | 1.7mm to 3.0mm |
| Operating Temperature | -25°C to +85°C |
Dimensions
Contact Dimensions
Applications
- Industrial equipment
- Consumer electronics
- Automotive systems
- Power supply units
- Any application requiring reliable wire-to-board connections

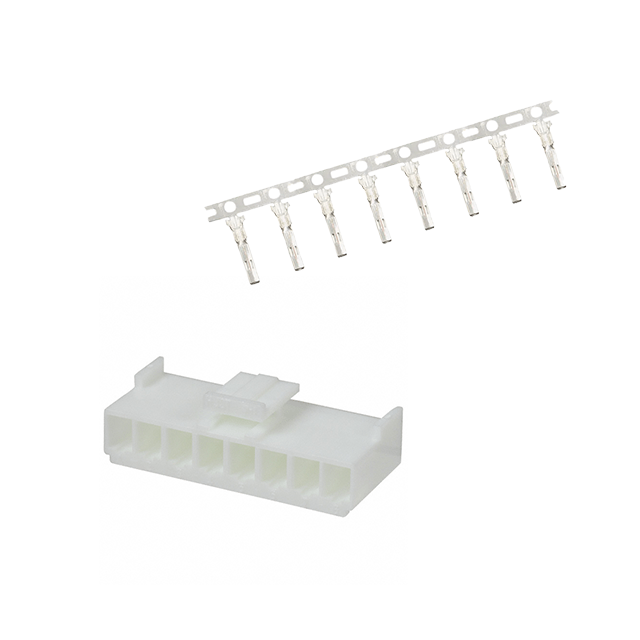

Package Contents
- 1x VHR-8N Female 8 Pin Connector Housing 3.96mm.
- 8x Metal Contacts.
